BDT M20×1.5 Explosion-Proof Plug

Category:

Explosion-proof Accessories

Commodity name： BDT M20×1.5 Explosion-Proof Plug

Message

Description

Environmental Application

◆ Suitable for sealing unused or spare entry devices in electrical equipment to prevent water, dust, and other foreign substances from entering the equipment;

◆ Suitable for explosive gas environments in Zone 1 and Zone 2 locations;

◆ Suitable for explosive gas environments of IIA, IIB, and IIC types;

◆ Suitable for combustible dust environments in Zones 20, 21, and 22.

Product Features

◆ Made of high-quality carbon steel;

◆ Thread specifications can be customized, such as G thread, NPT thread, M thread;

◆ Standards implemented: GB/T3836.1, GB/T 3836.2, GB/T 3836.31, GB 3836.7, IEC 60079-0, EC60079-1, EC60079-31, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1;

◆ Explosion-proof marks: M thread: Ex db IIC Gb/ Ex eb IIC Gb/ Ex tb IIIC Db; NPT thread: Ex db IIC Gb/ Ex eb IIC Gb/ Ex tb IIIC Db; G thread: Ex eb IIC Gb/ Ex tb IIIC Db.

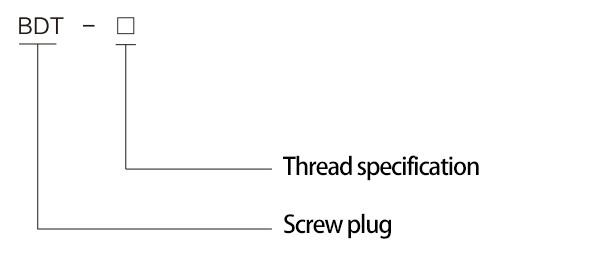

Model Meaning

Appearance and Installation Diagram

Thread Specifications		L	L1	Thread Specifications	L	L1
G3/8	NPT3/8	21	12	M121.5/M161.5	21	12
G1/2	NPT1/2	21	12	M181.5/M201.5	21	12
G3/4	NPT3/4	21	12	M221.5/M241.5/M25*1.5	21	12
G1	NPT1	26	15	M301.5/M321.5/M302/M322	26	15
G1 1/4	NPT1 1/4	26	15	M401.5/M362/M40*2	26	15
G1 1/2	NPT1 1/2	26	15	M501.5/M482	26	15
G2	NPT2	30	17	M631.5/M642	30	17
G2 1/2	NPT2 1/2	34	20	M751.5/M722	30	17
G3	NPT3	34	20	M901.5/M853	31	18
G4	NPT4	34	20	M1101.5/M1053	32	19

Ordering Information

◆ When ordering, select each item according to the product specifications and model, and specify the explosion-proof mark, thread specifications, quantity, etc.;

◆ If there are special requirements, please specify separately.
