XH-ZF□-E□W-BAJ52B(F) Series Fire Emergency Lighting Fixtures
- Commodity name： XH-ZF□-E□W-BAJ52B(F) Series Fire Emergency Lighting Fixtures
- Description
-
Product Features
◆ Stainless steel + plastic shell, polished finish;
◆ Stainless steel exposed fasteners, high corrosion resistance;
◆ Uses two-bus wiring method, simple and convenient operation; features emergency automatic switching with short response time, and automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ Supports real-time data transmission with upper-level devices, immediately enters emergency mode upon receiving emergency commands, and reports faults to the front-end controller in real time;
◆ Non-centralized control devices use specially designed trickle charge and discharge circuits to charge and discharge the battery, overcoming the self-discharge characteristics of secondary batteries, requiring no manual charging, discharging, or other maintenance, greatly extending battery life;
◆ Non-centralized control devices are equipped with high-performance lithium battery packs, lightweight, long service life, environmentally friendly; no toxic or harmful heavy metals such as lead, mercury, or cadmium are contained or produced during production, use, or disposal;
◆ Emergency lighting products come with built-in LED light sources, featuring high brightness, long life, energy saving, and environmental protection;
◆ Standard: GB 17945-2010.
Environmental Applications
◆ Widely used in urban factories, workshops, warehouses, exhibition halls, pipe galleries, supermarkets, and other places for emergency escape lighting in case of fire;
◆ Suitable for places with high protection requirements and humid environments;
◆ Suitable for temperature environments from -20℃ to +40℃.
Ordering Information
◆ When ordering, strictly specify all product parameters and explosion-proof marks according to the model meaning;
◆ Please specify if there are special requirements (such as voltage).
Model Meaning
Technical Parameters
Model Specifications Input Voltage Rated Power Emergency Time Charging Time Protection Level XH-ZFJC-E6W-BAJ52B DC24V
DC36V
AC220V4W
6W≥90min ≥24H IP67
WF1
WF2*XH-ZFZC-E6W-BAJ52B XH-ZFZD-E6W-BAJ52B ◆ Orders marked with * must be specified; centralized power supply type lighting, no charging required.

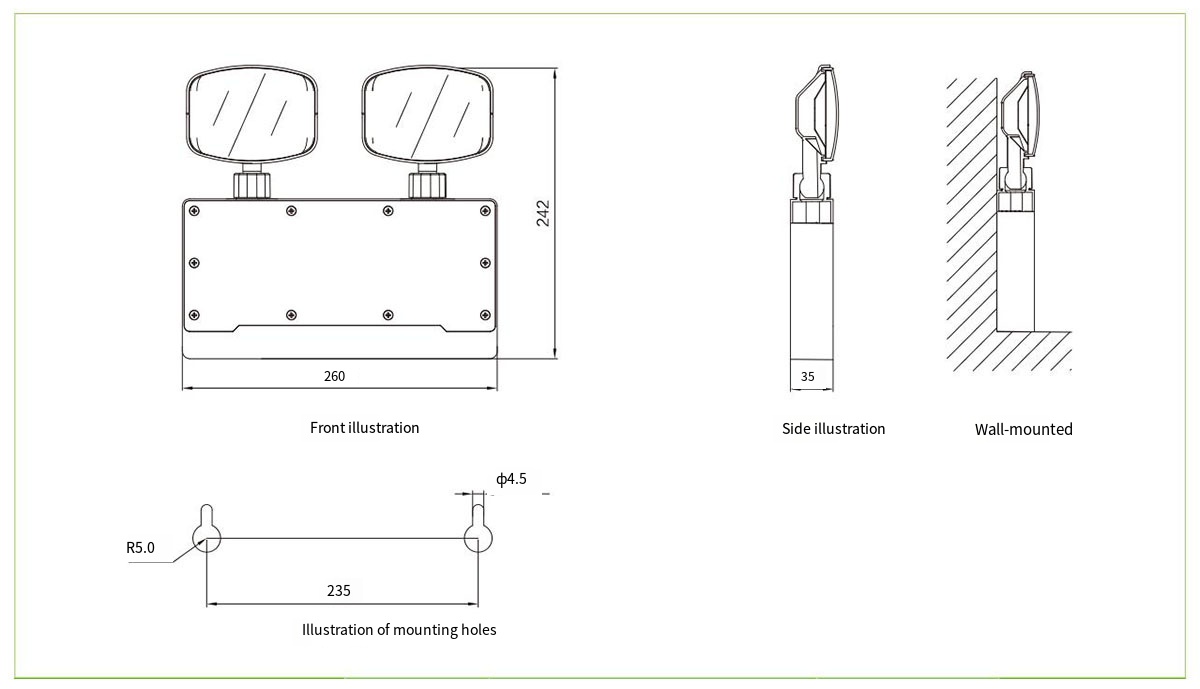

Outline and Installation Diagram
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packing Quantity (pieces) Gross Weight (kg)/box XH-ZF□-E□W-BAJ52B(F) 0.79 520*360*285 12 12
