XH-BL□-□LROE□□W-□ Series Fire Emergency Signage Lighting Fixtures
- Commodity name： XH-BL□-□LROE□□W-□ Series Fire Emergency Signage Lighting Fixtures
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying;
◆ Stainless steel exposed fasteners with high corrosion resistance;
◆ Uses two-bus wiring method, simple and convenient operation; features emergency automatic switching with short response time, and automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ Supports real-time data transmission with upper-level equipment, immediately enters emergency mode upon receiving emergency commands, and reports faults to the front-end controller in real time;
◆ Non-centralized control devices use specially designed trickle charge and discharge circuits to charge and discharge the battery, overcoming the self-discharge characteristics of secondary batteries, requiring no manual charging, discharging, or other maintenance, greatly extending battery life;
◆ Non-centralized control devices are equipped with high-performance lithium battery packs, which are lightweight, have a long service life, are environmentally friendly, and contain no toxic or harmful heavy metals such as lead, mercury, or cadmium during production, use, or disposal;
◆ Emergency lighting products come with built-in LED light sources, featuring high brightness, long life, energy saving, and environmental protection:
◆ Standards: GB/T3836.1, GB/T3836.2, GB/T3836.31, GB 17945, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN60079-0, EN 60079-1, EN61241-0, EN61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industries, and offshore oil platforms, serving as emergency escape and evacuation indicators in case of fire;
◆ Suitable for explosive gas environments in Zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature classes T1 to T6;
◆ Suitable for ambient temperatures from -25℃ to +45℃.

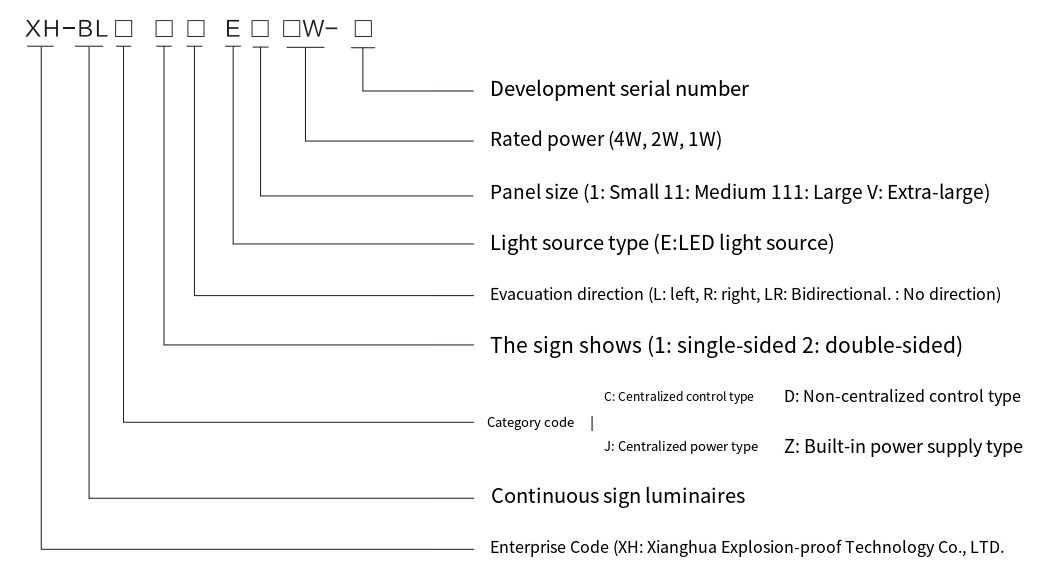

Model Meaning
Technical Parameters
Model Specifications Input Voltage Rated Power Emergency Time Explosion-proof Mark Entry Specification Cable Outer Diameter Protection Level XH-BLJC-2LROE12W BAYD II DC24V
DC36V
AC220V1W
2W
4W≥90min Ex db IIC
T6 Gb;
Extb III C
T80℃ DbG3/4
M25
NPT3/4Φ10-Φ15mm IP66
WF1
WF2*XH-BLJC-1LROE12W BAYD II XH-BLJC-2LROEII 2W-A XH-BLJC-1LROEII 2W-A XH-BLJC-2LROE III 2W-A XH-BLJC-1LROE III 2W-A XH-BLZC-2LROE12W-A XH-BLZC-1LROEI2W-A XH-BLZC-2LROEII 2W-A XH-BLZC-1LROEII 2W-A XH-BLZC-2LROE III 2W-A XH-BLZC-1LROE III 2W-A XH-BLZD-2LROE12W BAYD II XH-BLZD-1LROEI2W BAYD II XH-BLZD-2LROEII 2W-A XH-BLZD-1LROE II 2W-A XH-BLZD-2LROE III 2W-A XH-BLZD-1LROE III 2WA ◆ All fire protection products require a charging time of ≥24 hours; except for centralized power supply types, orders with * must be specified.
Ordering Instructions
◆ When ordering, strictly specify all product parameters and explosion-proof marks according to the model meaning;
◆ If there are special requirements (such as voltage, nameplate, etc.), please specify.

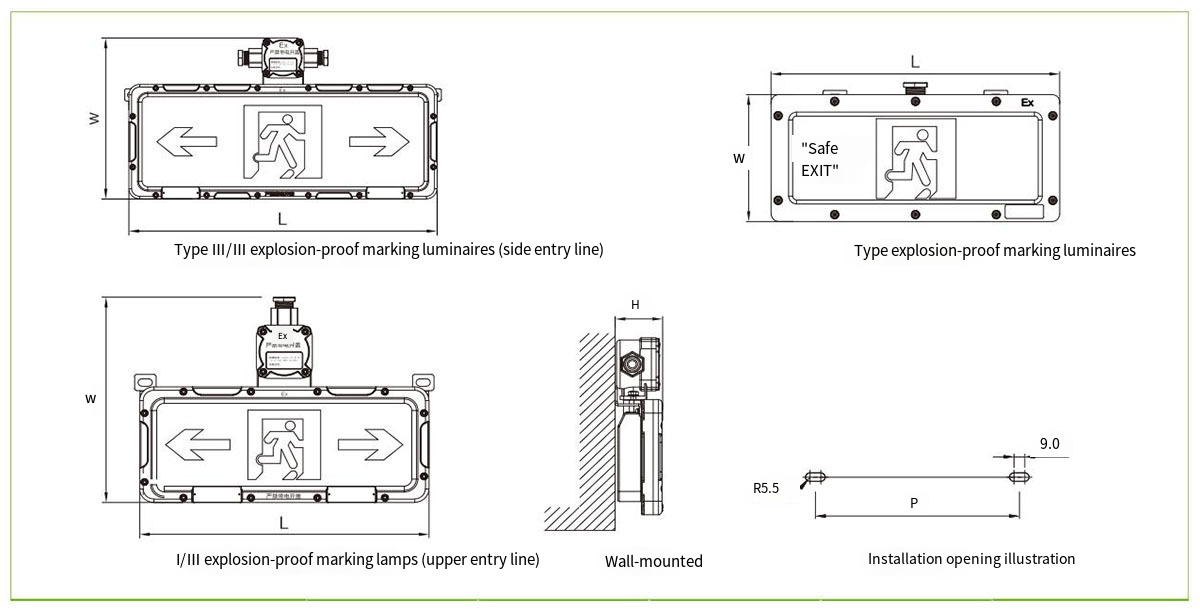

Outline and Installation Diagram

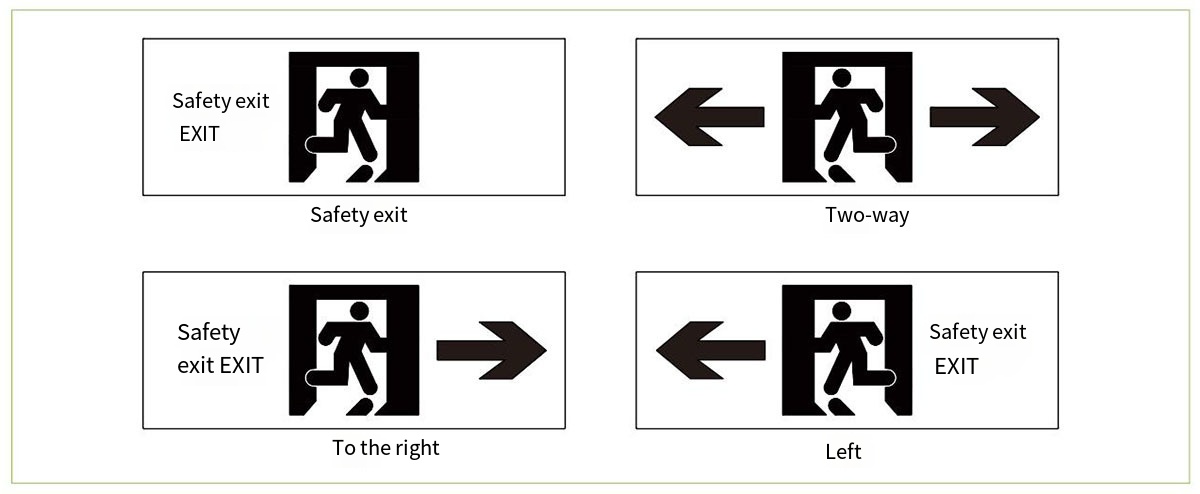

Product Series Length (L) Width (W) Height (H) Hole Distance (P) Remarks Type Explosion-proof Marked Lamp 375 165 55.0 210 Top Entry Type II Explosion-proof Marked Lamp 405 261 62.0 390 Side Entry Type II Explosion-proof Marked Lamp 405 286 62.0 390 Top Entry Type III Explosion-proof Marked Lamp 574 315 62.0 560 Side Entry Type III Explosion-proof Marked Lamp 574 340 62.0 560 Top Entry Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pcs) Gross Weight (kg) / box Type I Explosion-proof Indicator Light 2.97 500*390*215 6 20 Type II Explosion-proof Indicator Light 4.06 430*300*315 4 17 Type III Explosion-proof Indicator Light 7.25 585*165*360 2 16 Sign Plate Pattern
