XH-ZF□-E□W-BAJ52B Series Fire Emergency Lighting Fixtures
- Commodity name： XH-ZF□-E□W-BAJ52B Series Fire Emergency Lighting Fixtures
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic powder coating;
◆ Stainless steel exposed fasteners with high corrosion resistance;
◆ Emergency power supply device, simple and convenient wiring, features input voltage range, short emergency switching time, and automatic protection functions under various abnormal conditions such as short circuit and open circuit; automatically charges during normal power supply and automatically provides emergency lighting when power failure occurs;
◆ Uses specially designed trickle charge and discharge circuit to charge and discharge the battery, overcoming the self-discharge characteristics of secondary batteries, requiring no manual charging, discharging, or other maintenance, greatly extending battery life;
◆ Equipped with high-performance lithium battery pack, lightweight, long service life, environmentally friendly; contains no and produces no toxic or harmful heavy metals or substances such as lead, mercury, cadmium during production, use, or disposal;
◆ Equipped with LED light source, high brightness, long life, energy-saving, and environmentally friendly;
◆ Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, GB17945, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN60079-0, EN60079-1, EN61241-0, EN61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms, used as emergency escape lighting in case of fire;
◆ Suitable for explosive gas environments in Zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature classes T1 to T6;
◆ Suitable for ambient temperatures from -25℃ to +45℃.
Ordering Information
◆ When ordering, strictly specify all product parameters and explosion-proof marks according to the model meaning;
◆ Please specify if there are special requirements (such as voltage).

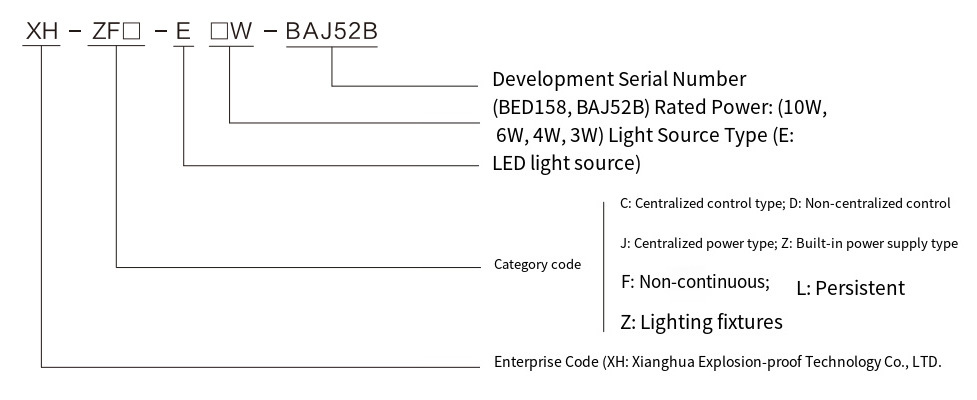

Model Meaning
Technical Parameters
Model Specifications Input Voltage Rated Power Emergency Time Explosion-proof Mark Cable Entry Specification Applicable Cable Outer Diameter Protection Level XH-ZFZD-E6W-BAJ52B DC24V
DC36V
AC220V4W
6W≥90min Ex db
IIC T6 Gb;
Ex tb IIIC
T80℃ DbG3/4
M25
NPT3/4Φ10~Φ15mm IP67
WF1
WF2*XH-ZFZC-E6W-BAJ52B XH-ZFJC-E6W-BAJ52B ◆ Charging time for all fire protection products should be ≥24 hours; except for centralized power supply types, orders marked with * must be specified.

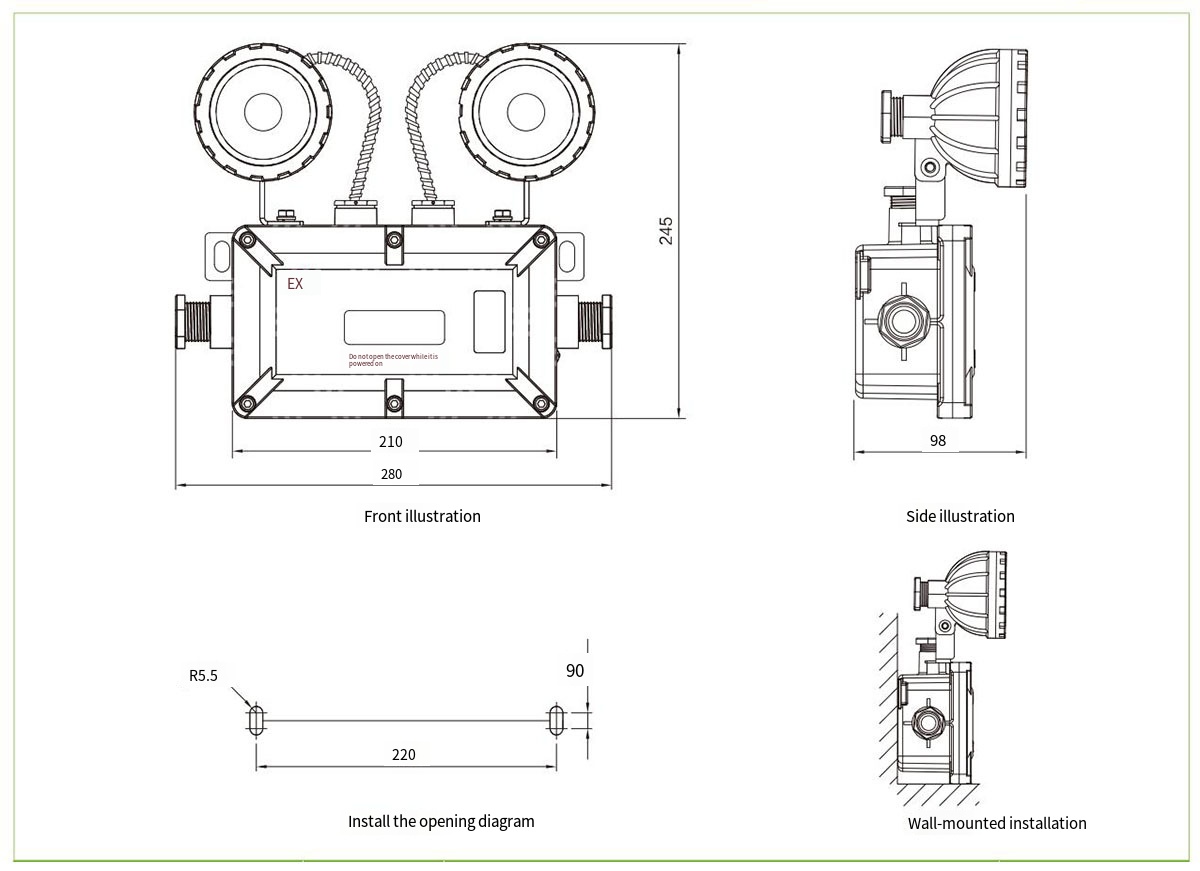

Outline and Installation Diagram
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Inner Box Dimensions (mm) Packing Quantity (pieces) Gross Weight (kg)/box XH-ZF□-E□W-BAJ52B 2.54 630*290*275 280*120*260 5 12
