XH-BL□-□LROE□□W-A(F) Series Fire Emergency Signage Lighting Fixtures
- Commodity name： XH-BL□-□LROE□□W-A(F) Series Fire Emergency Signage Lighting Fixtures
- Description
-
Product Features
◆ Stainless steel + plastic shell, polished finish;
◆ Stainless steel exposed fasteners, high corrosion resistance;
◆ Uses two-bus wiring method, simple and convenient operation; features emergency automatic switching with short response time, and automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ Supports real-time data transmission with upper-level devices, immediately enters emergency mode upon receiving emergency commands, and reports faults to the front-end controller in real time;
◆ Non-centralized control devices use specially designed trickle charge and discharge circuits to charge and discharge the battery, overcoming the self-discharge characteristics of secondary batteries, requiring no manual charging, discharging, or other maintenance, greatly extending battery life;
◆ Non-centralized control devices are equipped with high-performance lithium battery packs, lightweight, long service life, environmentally friendly, containing no and producing no toxic heavy metals such as lead, mercury, cadmium during production, use, or disposal;
◆ Emergency lighting products come with built-in LED light sources, featuring high brightness, long life, energy saving, and environmental protection;
◆ Compliance standard: GB 17945.
Environmental Applications
◆ Widely used in urban factories, workshops, warehouses, exhibition halls, pipe galleries, supermarkets, and other places as emergency escape and evacuation indicators in case of fire.
◆ Suitable for places with high protection requirements and humidity.
◆ Suitable for temperature environments from -40℃ to +50℃.
Ordering Instructions
◆ When ordering, strictly specify all product parameters and quantities according to the model meaning;
◆ Please specify if there are special requirements (such as voltage, signage, etc.).

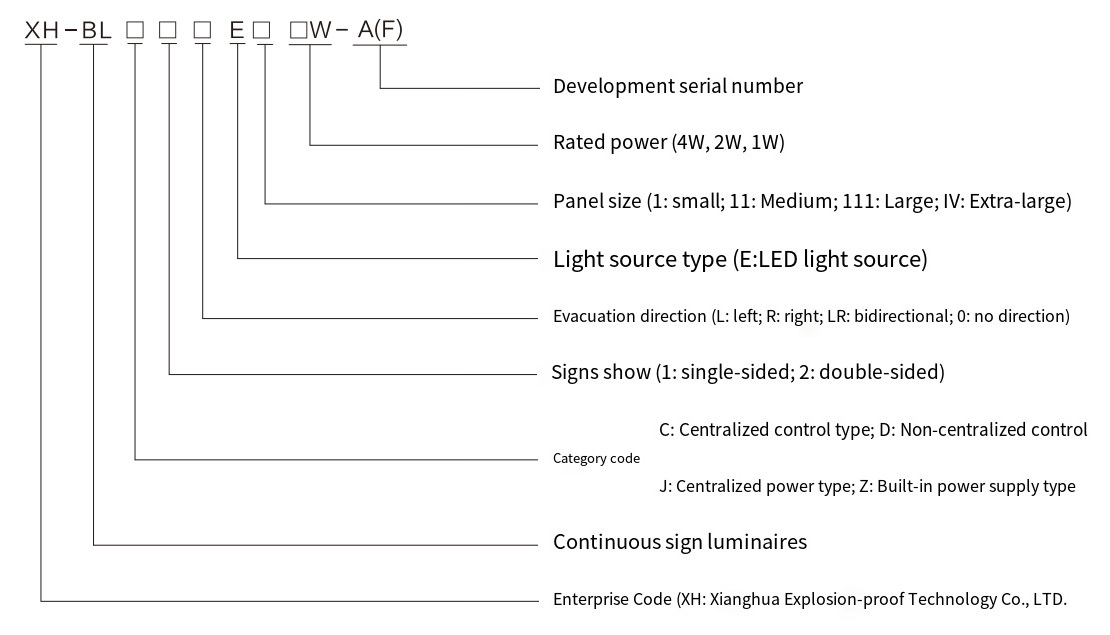

Model Meaning
Technical Parameters
Model Specifications Input Voltage Rated Power Emergency Time Protection Level Charging Time XH-BLJC-2LROE II 2W-A(F) DC24V
DC36V
AC220V1W
2W
4W≥90min IP66
WF1
WF2*≥24H XH-BLJC-1LROEII2W-A(F) XH-BLJC-2LROE III 2W-A(F) XH-BLJC-1LROE III 2W-A(F) XH-BLZC-2LROE II 2W-A(F) XH-BLZC-1LROE II 2W-A(F) XH-BLZC-2LROE III 2W-A(F) XH-BLZC-1LROE III 2W-A(F) XH-BLJC-2LROE12W BAYD II(F) XH-BLJC-1LROEI2W BAYD II (F) XH-BLZC-2LROE12W-A(F) XH-BLZC-1LROE12W-A(F) XH-BLZD-2LROE II 2W-A(F) XH-BLZD-1LROE II 2W-A(F) XH-BLZD-2LROE III 2W-A(F) XH-BLZD-1LROE III 2W-A(F) XH-BLZD-2LROE12W-A(F) XH-BLZD-1LROE12W-A(F) ◆ Orders marked with * must be specified; centralized power type indicator lights do not require charging.

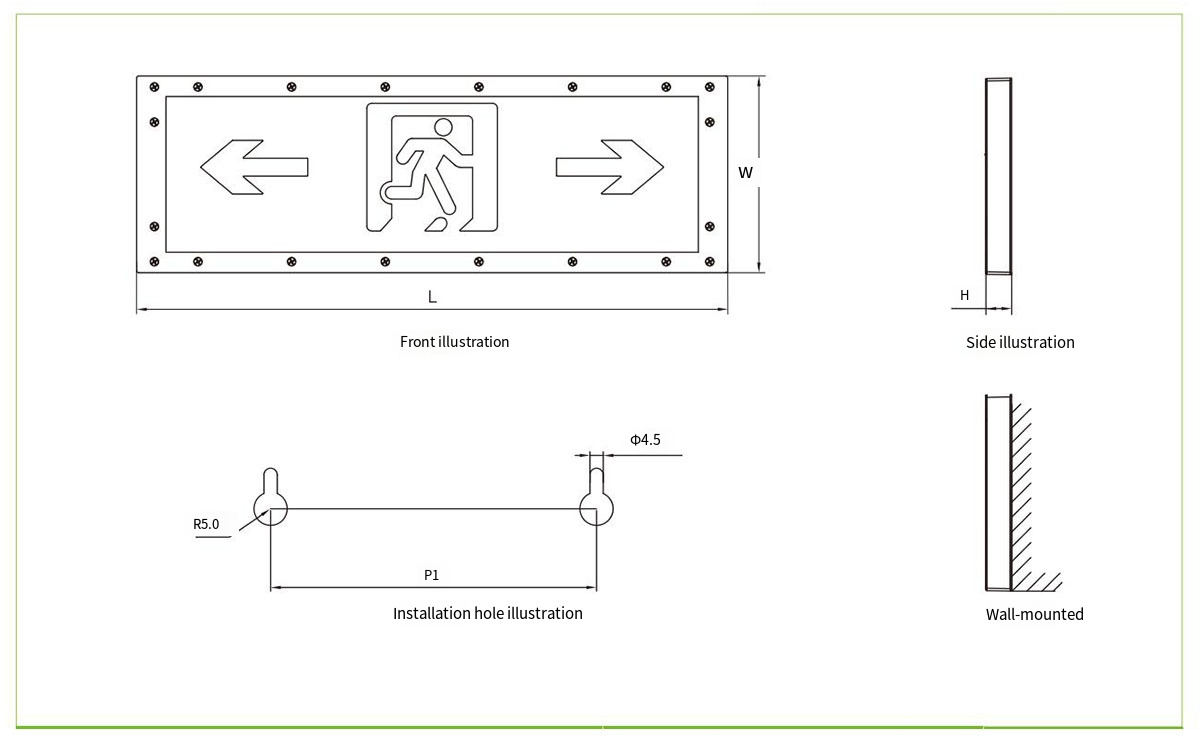

Outline and Installation Diagram
Product Series Length (L) Width (W) Height (H) Hole Distance (P1) Type I Three-proof Indicator Light 390 144 40 363 Type II Three-proof Indicator Light 360 160 25 345 Type III Three-proof Indicator Light 600 200 25 562 Specification Model Weight (kg)/piece Outer Box Size (mm) Inner Box Size (mm) Packaging Quantity (pieces) Gross Weight (kg)/box Type I/II Indicator Light 1.02 395*375*170 365*70*160 10 12 Type III Indicator Light 1.82 635*290*230 615*220*40 6 12 Signage Pattern
