XH-ZF□-E□W-BED158 Series Fire Emergency Lighting Fixtures
- Commodity name： XH-ZF□-E□W-BED158 Series Fire Emergency Lighting Fixtures
- Description
-
Product Features
◆ The emergency light housing is made of high-quality aluminum alloy die-casting, with a high-voltage electrostatic spray surface;
◆ Exposed fasteners are made of stainless steel with high corrosion resistance;
◆ The housing joint surface uses threaded and straight-mouth explosion-proof design, ensuring reliable explosion-proof performance;
◆ Uses high-quality high-transmittance tempered glass, resistant to high temperature, aging, and 4J impact;
◆ Uses a two-bus wiring method, simple and convenient operation; features automatic emergency switching with short response time, and automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ Supports real-time data transmission with upper-level devices, immediately entering emergency mode upon receiving emergency commands, and reports faults to the front-end controller in real time;
◆ Non-centralized control devices use specially designed trickle charge and discharge circuits to charge and discharge the battery, overcoming the self-discharge characteristics of secondary batteries, requiring no manual charging, discharging, or other maintenance, greatly extending battery life;
◆ Non-centralized control devices are equipped with high-performance lithium battery packs, which are lightweight, have a long service life, are environmentally friendly, and contain no toxic or harmful heavy metals such as lead, mercury, or cadmium during production, use, or disposal;
◆ Emergency lighting products come with built-in LED light sources, featuring high brightness, long life, energy saving, and environmental protection;
◆ Standards: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, GB/T 17945, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1.
Environmental Applications
◆ Fire emergency lighting fixtures (hereinafter referred to as emergency lights) are suitable for industrial plants, oil fields, gas stations, oil depots, chemical plants, steam environments, flammable and explosive, and dusty environments. They provide emergency lighting for personnel evacuation and firefighting operations during power outages, fires, earthquakes, and other sudden disasters;
◆ Suitable for environments with corrosive gases or vapors that do not obviously damage metals or insulation;
◆ Altitude: not exceeding 2000 meters;
◆ Atmospheric pressure: 80Kpa~110Kpa;
◆ Ambient air relative humidity not exceeding 95% (at 25℃);
◆ Suitable for ambient temperatures from -20℃ to +40℃.
Model Meaning
Technical Parameters
Model Specifications Input Voltage Rated Power Emergency Time Explosion-proof Mark Entry Specification Applicable Cable Outer Diameter Protection Level XH-ZFZC-E10W-BED158 DC24V
DC36V6W
10W≥90min Ex db IIC
T6 Gb;
Ex tb IIIC
T80℃ DbG3/4
M25
NPT3/4Φ10~Φ15mm IP66
WF1
WF2*XH-ZFJC-E10W-BED158 ◆ All firefighting products require a charging time of ≥24 hours; except for centralized power types, orders marked with * must be specified.

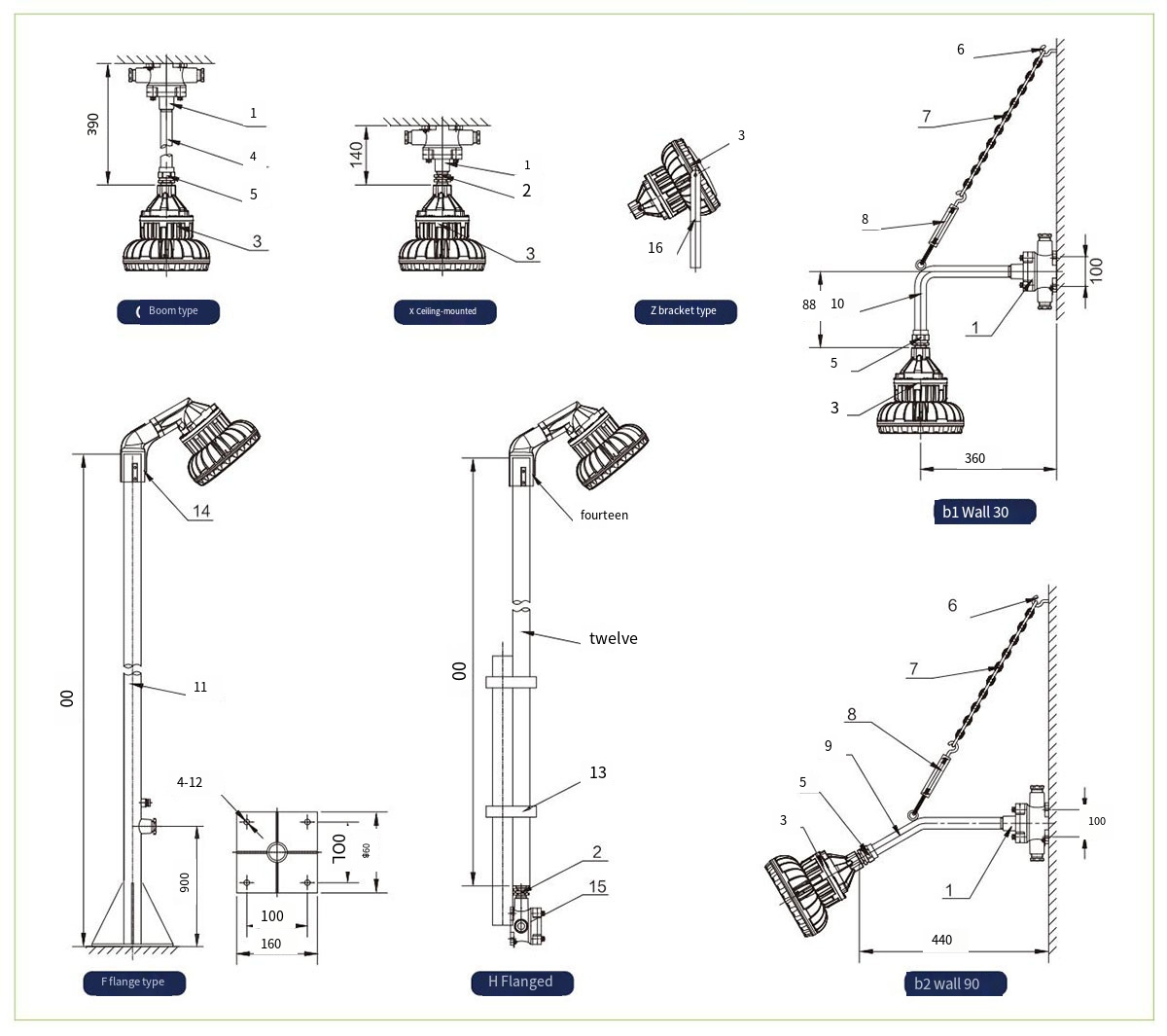

Outline and Installation Diagram

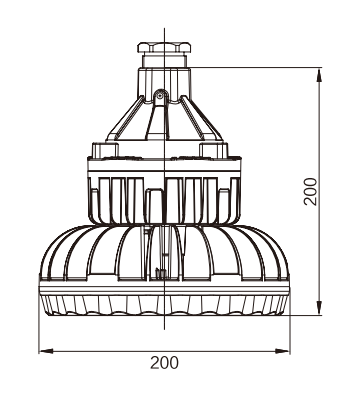

Outline Dimensions

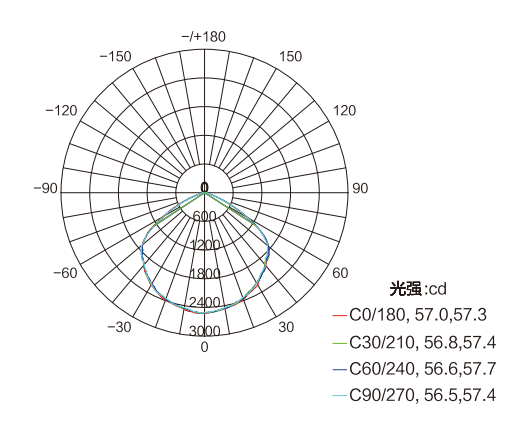

Light Distribution Curve
Installation Accessories Table
Serial Number Name Remarks Serial Number Name Remarks 01 AH - Explosion-proof Junction Box (IIC) G3/4 Pendant Box 09 G3/4 Elbow Pipe (30°) 400mm 02 BHJ-G3/4 Explosion-proof Union Joint Double External 10 G3/4 Elbow Pipe (90°) 300mm 03 LED Explosion-proof Light 11 G11/4 Bent Rod Flange Type 04 G3/4 Straight Pipe 300mm 12 G11/4 Bent Rod Guardrail Type 05 BHJ-G3/4 Explosion-proof Union Joint One Internal One External 13 U-shaped Pipe Clamp User Supplied 06 Expansion Screw 14 Elbow Adapter 07 Chain 15 AH - Explosion-proof Junction Box (IIC) G3/4 Tee 08 CC Type Spiral Cable Clamp 16 Bracket Installation Method Supplied Accessories Ceiling Mounted (x) Serial numbers 1, 2 in the outline and installation example diagram Pendant Rod Type (g) Serial numbers 1, 4, 5 in the outline and installation example diagram Wall Mounted 30 (b1) Serial numbers 1, 5, 6, 7, 8, 9 in the outline and installation example chart Wall-mounted 90(b2) Serial numbers 1, 5, 6, 7, 8, 10 in the outline and installation example chart Flange type (f) Serial numbers 11, 14 in the outline and installation example chart Guardrail type (h) Serial numbers 2, 12, 13, 14, 15 in the outline and installation example chart Bracket type (z) Serial number 16 in the outline and installation example chart Ordering Information
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packing Quantity (pieces) Gross Weight (kg)/box XH-ZF□-E□W-BED158 4 470*470*280 4 17
