XH-C-□W-□ Series Emergency Lighting Controller
- Commodity name： XH-C-□W-□ Series Emergency Lighting Controller
- Description
-
Product Features
◆Receive FAS fire alarm signals and execute linkage plans:
◆Monitor its own working status;
◆Manually and automatically control the direction indication of evacuation indicator lights within the system;
◆Display, monitor, main alarm (in case of fault), control emergency power supply, distribution devices, distribution boxes, and emergency lights' working status;
◆Save and print system operation log records, with automatic data backup function;
◆Display building floor plans, fire compartments, and evacuation route maps;
◆Designed to meet the requirements of GB17945 "Fire Emergency Lighting and Evacuation Indication System."
Environmental Applications
◆Widely used in petroleum, chemical, military industry, industrial plants, large buildings, shopping malls, schools, hotels, and other places; real-time monitoring of backend equipment operation status; real-time linkage with fire alarm systems to provide remote control for evacuation and firefighting operations during power outages, fires, and other emergencies;
◆Suitable for environments with corrosive gases or vapors that do not obviously damage metals or insulation;
◆Altitude: not exceeding 2000 meters;
◆Atmospheric pressure: 80Kpa-110Kpa;
◆Ambient air relative humidity not exceeding 95% (at 25℃);
◆Suitable for ambient temperatures from -20℃ to +40℃.
Ordering Instructions
◆When ordering, strictly follow the model meaning and specify all product parameters and installation accessories in detail; for example: XH-C-□W-□ vertical installation, then the product model is: XH-C-□W-L:
◆If there are special requirements (such as voltage, emergency time, etc.), please specify when ordering.
Model Meaning
Technical Parameters
Model Specifications Rated Voltage Rated Power Charging Time Emergency Time Protection Level XH-C-25W-B AC220V 50Hz

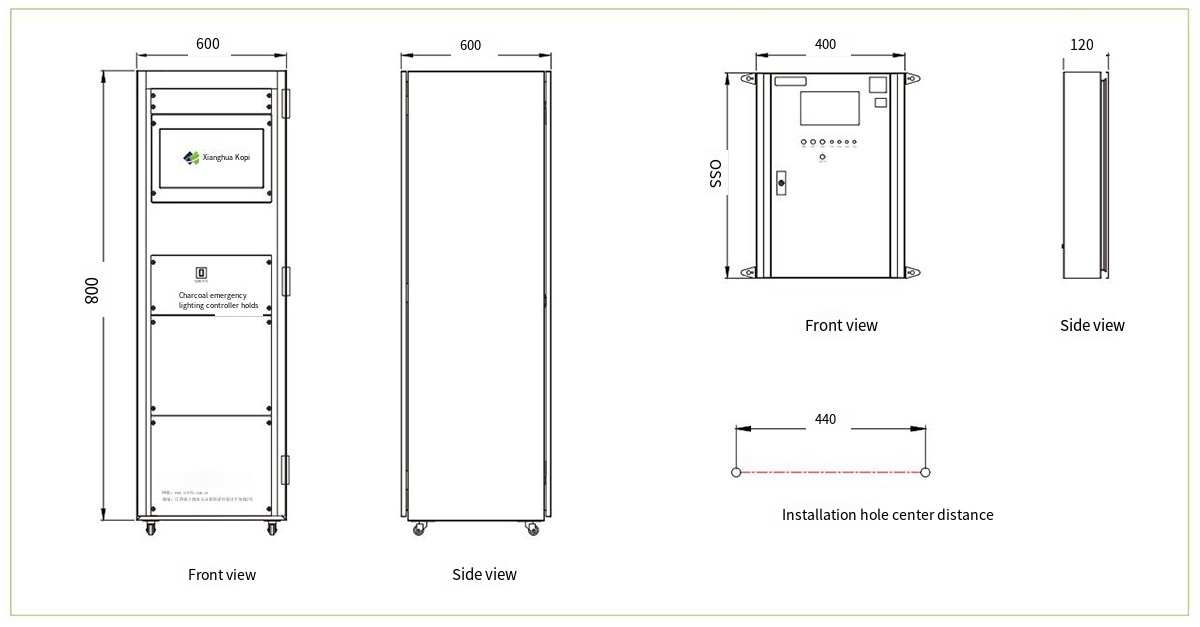

(Please specify if there are special requirements)25W ≥24H ≥ 180min IP33 XH-C-50W-L 50W Appearance and Installation Diagram

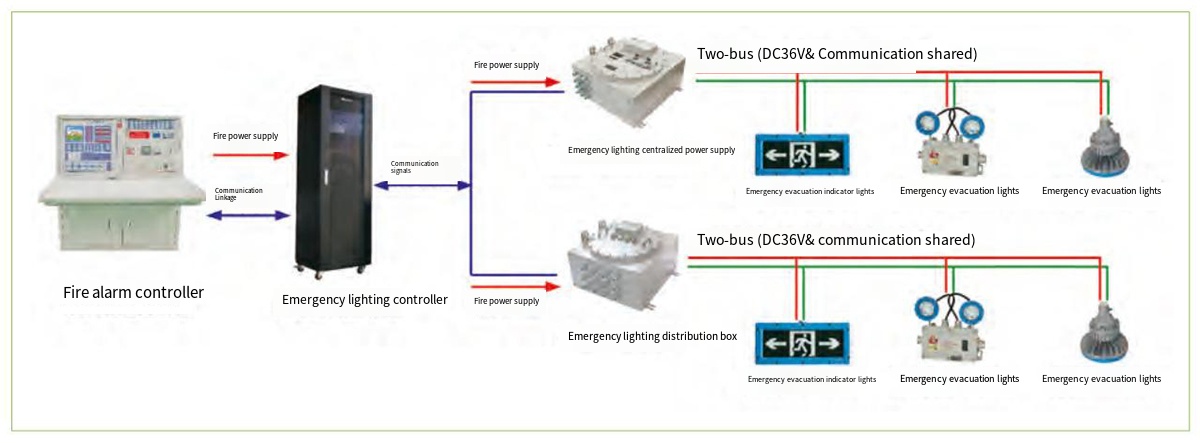

Intelligent System Diagram
