BJX-100 Explosion-proof Junction Box
- Commodity name： BJX-100 Explosion-proof Junction Box
- Description
-
Product Features
◆ The shell is made of ZL102 aluminum alloy die-casting or steel plate welding, with high-pressure electrostatic spraying on the surface;
◆ The joint surface adopts a labyrinth sealing structure, providing strong waterproof and dustproof functions;
◆ The wiring terminals use "Weidmuller" or "UTILITY" terminals, which are convenient for wiring, firm and reliable, and offer various current specifications for user selection;
◆ The direction of the cable entry port is versatile and can be selected arbitrarily according to user requirements, and BDM series cable clamp sealing joints can be directly installed as requested by the user;
◆ Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, EN60079-0, EN60079-1, EN60079-7, EN 60079-31.
Environmental Applications
◆ Suitable for explosive environments Zone 1 and Zone 2;
◆ Suitable for explosive atmospheres of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature groups T1-T6;
◆ Widely used in hazardous environments such as petroleum extraction, refining, chemical industry, textile, military industry, as well as offshore oil platforms and oil tankers;
◆ Suitable for indoor and outdoor use (IP65, IP66 must be specified when ordering).

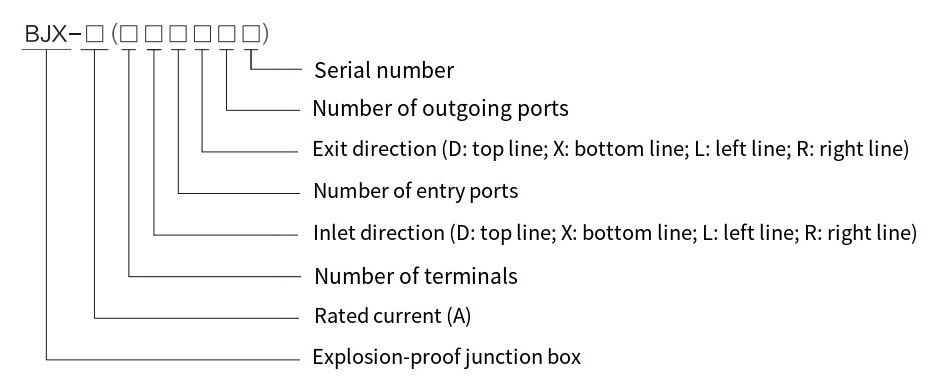

Model Meaning
Technical Parameters
Rated Voltage (V) Rated Current (A) Explosion-proof Mark Protection Level Cable Entry Thread Cable Outer Diameter (MM) AC24V ≤630 Ex db IIB T4-T6 Gb;
Ex tb IIC T130-T80℃ Db;
Ex db IIC T4-T6 Gb;
Ex tb IIIC T130-T80℃ DbIP66 / NPT1/2 M20*1.5 Φ8-Φ12 / NPT3/4 M25*1.5 Φ10-Φ15 / NPT1 M32*1.5 Φ12-Φ17-Φ22 AC36V / NPT1 1/4 M40*1.5 Φ15-Φ19-Φ24 / NPT1 1/2 M50*1.5 Φ18-Φ23-Φ29 AC220V / NPT2 M63*1.5 Φ20-Φ27-Φ33 / NPT2 1/2 M75*1.5 Φ23-Φ29-Φ35-Φ41-Φ48 AC380V / NPT3 M90*1.5 Φ42-Φ50-Φ58 AC690V / NPT4 M110*1.5 Φ53-Φ62-Φ70-Φ78-Φ85 Ex eb IIC T4-T6 Gb;
Ex tb IIIC T130-T80℃ Db;
Ex ia IIC T6 GaIP66 G1/2 NPT1/2 M20*1.5 Φ8-Φ12 DC24V G3/4 NPT3/4 M25*1.5 Φ10-Φ15 G1 NPT1 M32*1.5 Φ12-Φ17-Φ22 DC36V G1 1/4 NPT1 1/4 M40*1.5 Φ15-Φ19-Φ24 G1 1/2 NPT1 1/2 M50*1.5 Φ18-Φ23-Φ29 DC110V G2 NPT2 M63*1.5 Φ20-Φ27-Φ33 G2 1/2 NPT2 1/2 M75*1.5 Φ23-Φ29-Φ35-Φ41-Φ48 DC220V G3 NPT3 M90*1.5 Φ42-Φ50-Φ58 G4 NPT4 M110*1.5 Φ53-Φ62-Φ70-Φ78-Φ85 Ordering Information
◆ Please specify the model specifications, rated current, explosion-proof mark, thread specifications, and quantity in detail when ordering;
◆ If there are special requirements, please specify separately.
Outline and Installation Diagram
Note: 1. The number of terminals, direction and quantity of cable outlets, and caliber can be changed arbitrarily within the allowable range of the junction box shell; 2. For more product shells, please contact us by phone.
