BXK-II(8) Explosion-proof Control Box
- Commodity name： BXK-II(8) Explosion-proof Control Box
- Description
-
Product Features
◆The control box shell is made of high-quality aluminum alloy die-cast, with a high-voltage electrostatic spray surface;
◆The IIC type main shell adopts an increased safety structure, and the internal components such as buttons, control switches, and meters are all explosion-proof components;
◆The switch handle can be equipped with a padlock to prevent misoperation;
◆The IIB type main shell adopts a flameproof structure, and the internal components can be installed with explosion-proof meters and various functional modules;
◆The internal components of the control box can be arranged according to user requirements to achieve multiple functions. The control switches have various functions to choose from, and indicator lights are available in multiple colors. Due to the variability of this product, please provide wiring diagrams when ordering.
Environmental Applications
◆Suitable for explosive environments Zone 1 and Zone 2;
◆Suitable for explosive environments of IIA, IIB, and IIC classes;
◆Suitable for combustible dust environments in Zones 21 and 22;
◆Suitable for temperature groups T1-T6;
◆Widely used in hazardous environments such as petroleum extraction, refining, chemical industry, textile, military industry, as well as offshore oil platforms and oil tankers;
◆Suitable for indoor and outdoor use (IP65, IP66 must be specified when ordering).

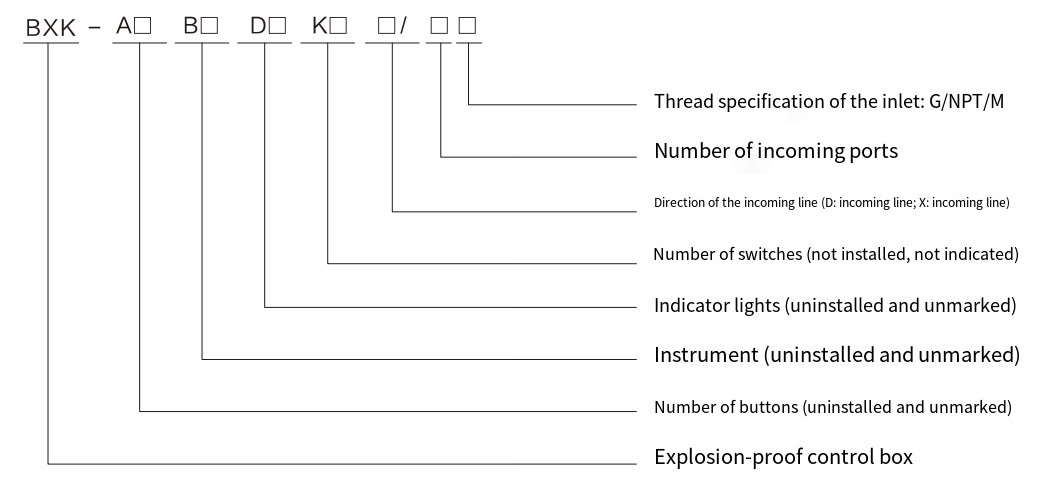

Model Meaning
Technical Parameters
Model Specifications Rated Voltage Rated Current Explosion-proof Marking Protection Level Corrosion Resistance Level Incoming Line Thread Specification Cable Outer Diameter BXK 220V/380V 10A Ex db eb II C T6 Gb; Ex tb IIIC T80℃ Db
Ex db II B T6 Gb; Ex tb IIIC T80℃ Db
Ex db IIC T6 Gb;Ex tb IIIC T80℃ DbIP66 WF1 G3/4-G1 1/2 Φ10-26mm ◆Standards Implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31.
Ordering Instructions
◆When ordering, strictly specify all product parameters according to the model meaning, explosion-proof marking, and required quantity;
◆Due to the variability of this product, please provide wiring diagrams when ordering;
◆If there are special requirements, please specify separately.
Outline and Installation Diagram
