BED168 Series LED Explosion-Proof Light
- Commodity name： BED168 Series LED Explosion-Proof Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying, stainless steel exposed fasteners, specially tempered glass light panel, resistant to 4J impact;
◆ Streamlined housing design, dust-free, water-free, protection level up to IP66;
◆ Imported LED light source, unidirectional light emission, luminous efficacy greater than 100lm/W, light decay not exceeding 15% in 5 years, high luminous efficiency, high color rendering, long life, energy-saving, and environmentally friendly;
◆ Special power supply with wide input voltage range, constant current, high voltage resistance, and output advantages, equipped with automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ Standards implemented: GB/T3836.1, GB/T3836.2, GB/T3836.3, GB/T3836.9, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms for general or operational lighting;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for explosive gas environments in Zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature classes T1 to T6;
◆ Suitable for ambient temperatures from -40℃ to +50℃.
Ordering Information
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pieces) Gross Weight (kg)/box BED168-I 8.28 560*320*250 2 21 BED168-II 14.17 640*355*225 2 30 ◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, and explosion-proof marks;
◆ The product is equipped with the corresponding wattage light source at the factory;
◆ If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.

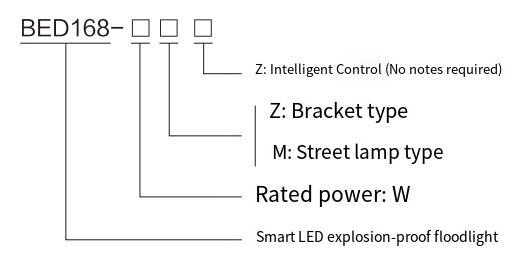

Model Meaning

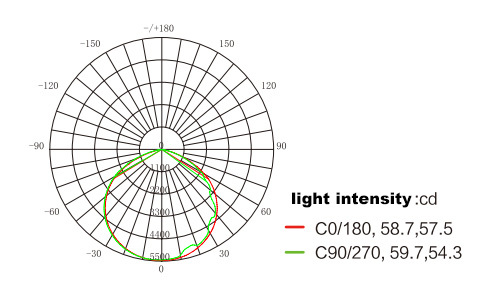

Light Distribution Curve
Technical Parameters
Model Specification Rated Voltage Rated Power Explosion-proof Mark Entry Specification Applicable Cable Outer Diameter Protection Level BED168-80 AC220V
50Hz
(Please specify if special requirements)80W Ex db eb mb IIC T6 Gb;
Ex tb IIIC T80℃ GbG3/4
M25
NPT3/4Φ10~Φ15 IP66
WF1
WF2*BED168-100 100W BED168-120 120W BED168-150 150W BED168-200 200W ◆ Orders with * must be specified.

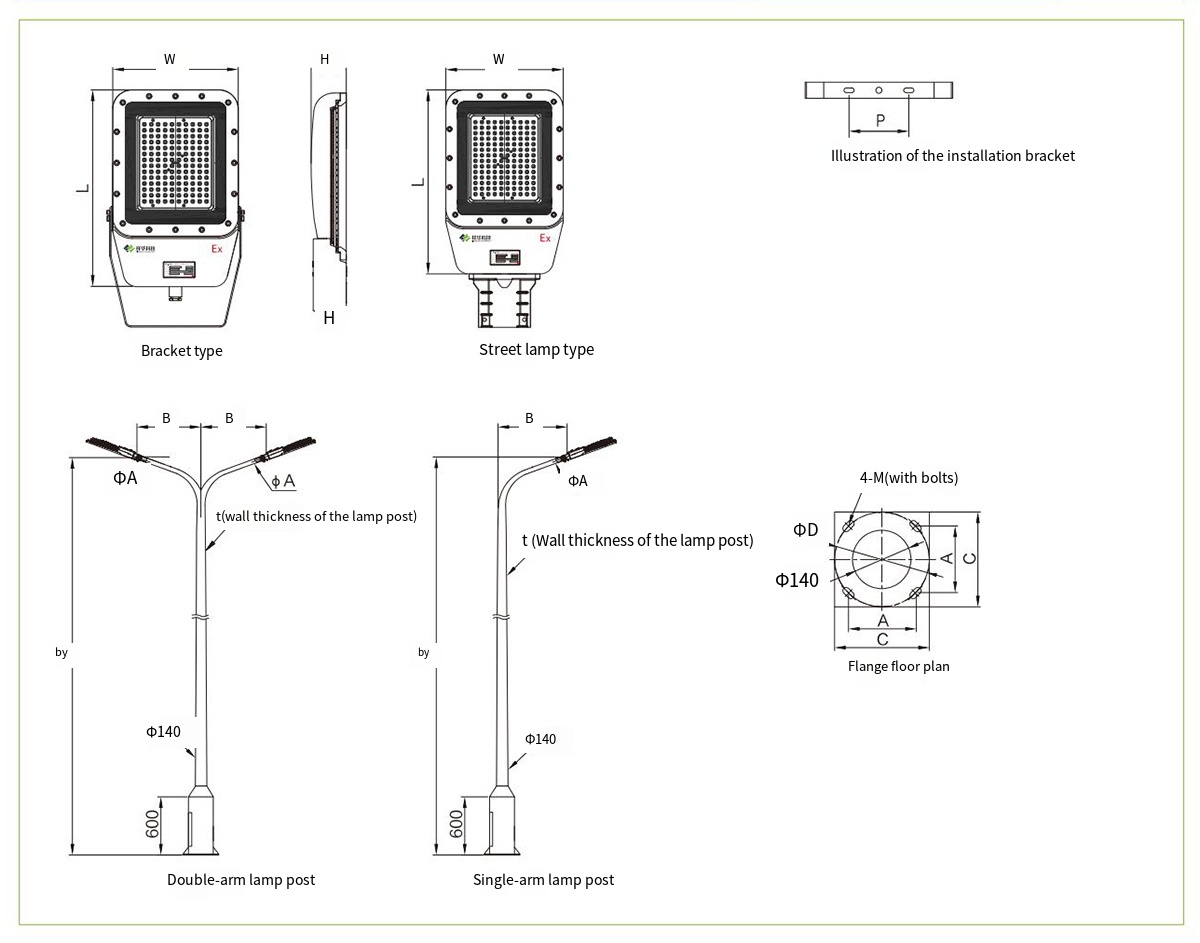

Outline and Installation Diagram
Lamp Outline DimensionsSerial Number Power L (mm) W (mm) H (mm) P (mm) Remarks 1 80 435 278 85 130 Type I 2 100 435 278 85 130 3 120 435 278 85 130 4 150 540 315 82 130 Type II 5 200 540 315 82 130 Lamp Pole Parameter Table 1
Serial Number H (mm) A (mm) B (mm) T (mm) D (mm) C (mm) M (with bolts) 1 6000 60 800 2.75 350 350 M18 2 8000 60 800 3.0 350 350 M18 3 10000 60 1000 4.0 400 400 M20 4 12000 60 1200 4.5 400 400 M24
