BED358 Series LED Explosion-Proof Light
- Commodity name： BED358 Series LED Explosion-Proof Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic powder coating;
◆ Stainless steel exposed fasteners, high corrosion resistance;
◆ Tempered glass transparent cover, high temperature resistance, aging resistance, high light transmittance, impact resistance of 4J;
◆ Transparent cover and housing bonded with epoxy resin adhesive, reliable explosion-proof performance, high protection level;
◆ Separate junction box with special terminals inside, reliable wire connection, easy inspection and maintenance;
◆ Light source chamber housing designed with radiator structure principle, light source uses ultra-high thermal conductivity aluminum substrate directly mounted on the housing, effectively dissipating heat from the light source, ensuring long service life of the lamp (continuous service life over 40,000h, normal use over 50,000h), switch cycles over 1 million times without damage;
◆ Imported LED light source, unidirectional light emission, luminous efficacy greater than 100lm/W, light decay not exceeding 15% in 5 years, high luminous efficiency, high color rendering, long life, energy saving, and environmentally friendly;
◆ Special ultra-high voltage constant current IC power supply, featuring wide input voltage range (100-265V), constant current, high voltage resistance (surge voltage 1000V, instantaneous voltage 4000V without burning or breakdown) output, and automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms for general or operational lighting;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for explosive gas environments in Zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature classes T1-T6;
◆ Suitable for ambient temperatures from -40℃ to +50℃.

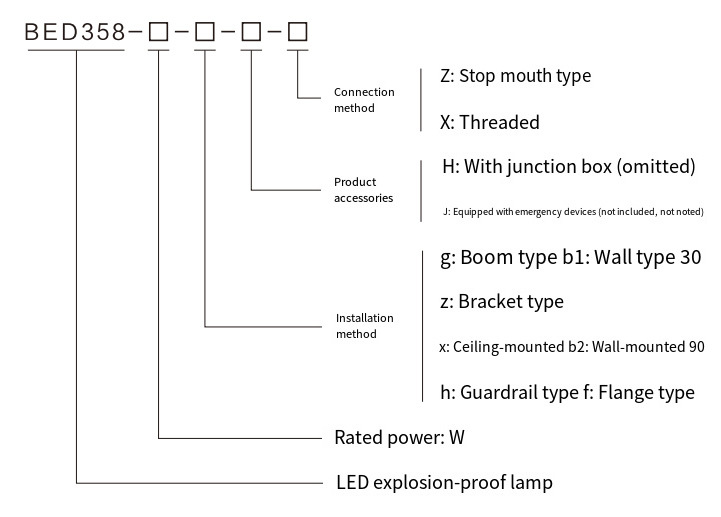

Model Meaning

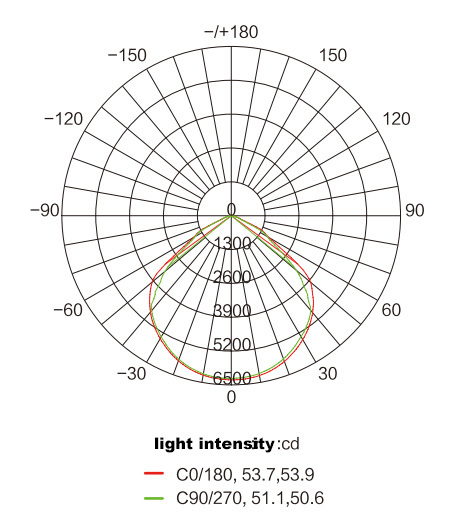

Light Distribution Curve
Technical Parameters
Model Specifications Rated Voltage Rated Power Explosion-proof Mark Entry Specification Applicable Cable Outer Diameter Protection Level BED358-30 AC220V
50Hz
(If special requirements
please specify)30W Ex db IIC
T6 Gb;
Ex tb IIC
T80℃ DbG1/2
M20
NPT1/2
G3/4
M25
NPT3/4Φ8~Φ12mm
Φ10~Φ15mmIP66
WF1
WF2*BED358-40 40W BED358-50 50W BED358-60 60W BED358-100 100W BED358-120 120W BED358-180 180W BED358-200 200W BED358-240 240W ★ Orders marked with * must be specified.

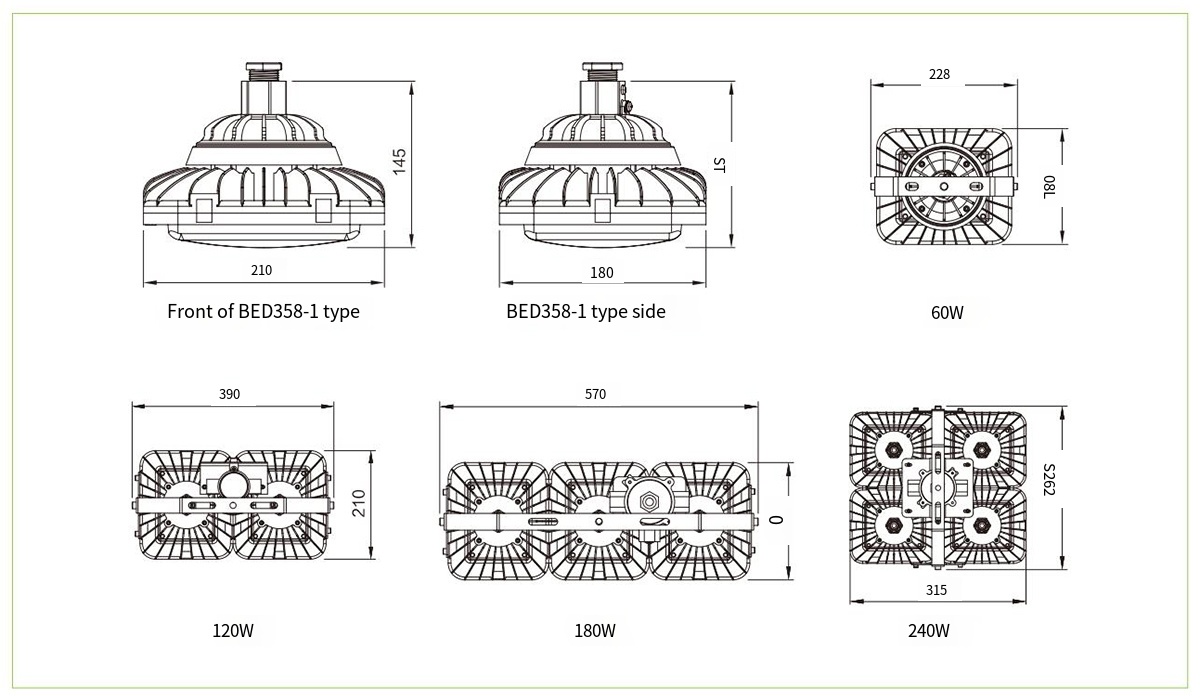

Outline Diagram

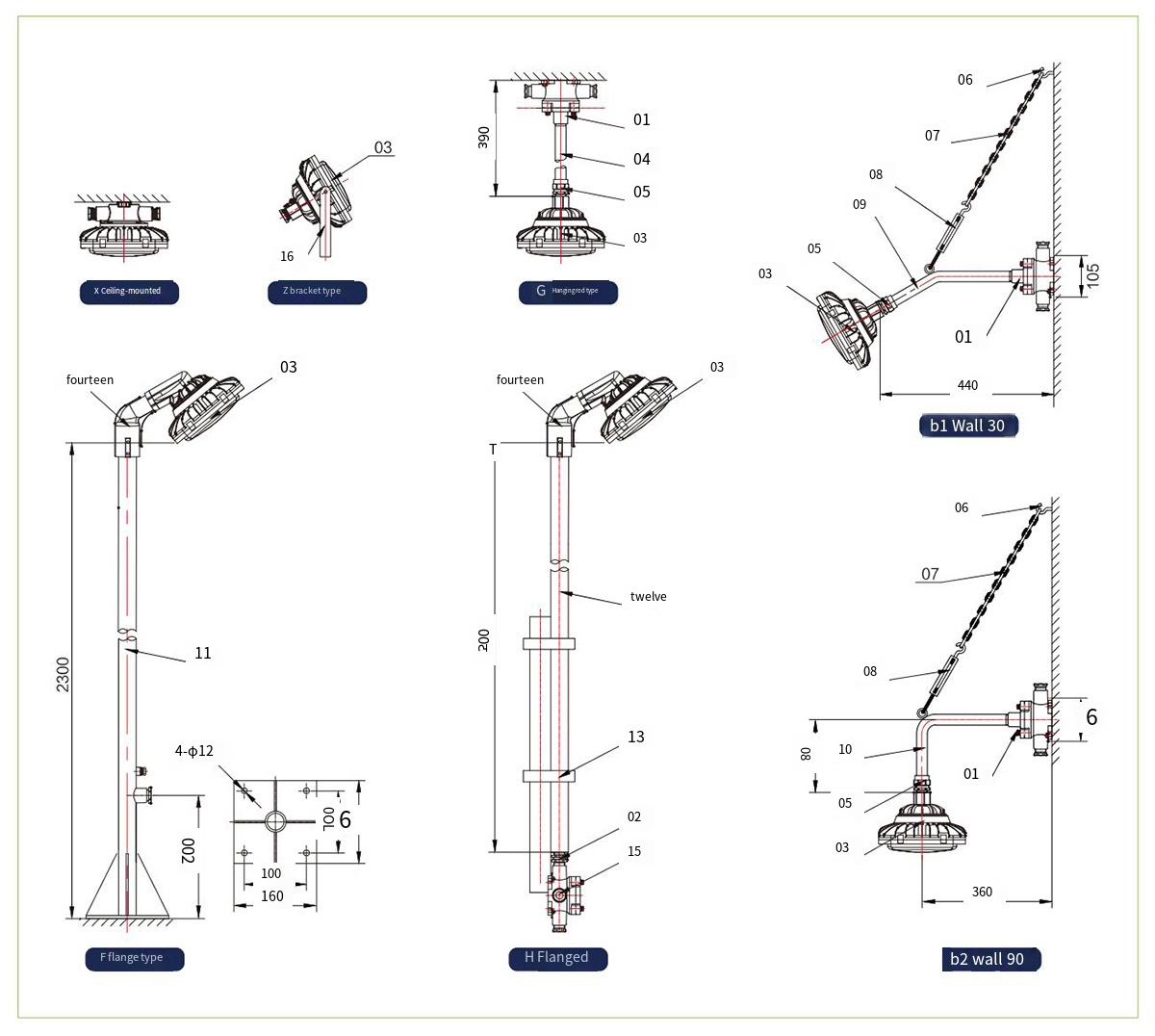

Installation Accessories List Serial Number Name Remarks Serial Number Name Remarks 01 AH - Explosion-proof Junction Box (IIC) G3/4 Pendant Lamp Box 09 G3/4 Elbow Pipe (30°) 400mm 02 BHJ-G3/4 Explosion-proof Union Joint Double External 10 G3/4 Elbow Pipe (90°) 300mm 03 LED Explosion-proof Lamp 11 G1 1/4 Bent Rod Flange Type 04 G3/4 Straight Pipe 30mm 12 G1 1/4 Bent Rod Guardrail Type 05 BHJ-G3/4 Explosion-proof Union Joint One Inside One Outside 13 U-shaped Pipe Clamp User Supplied 06 Expansion Bolt 14 Elbow Adapter 07 Chain 15 AH - Explosion-proof Junction Box (IIC) G3/4 Tee 08 CC Type Spiral Cable Clamp 16 Bracket Optional Installation Accessories List Installation Method Supplied Accessories Ceiling Mounted (X) Serial numbers 1, 2 in the outline and installation example diagrams Pendant Rod (G) Serial numbers 1, 4, 5 in the outline and installation example diagrams Wall-mounted 30 (B1) Numbers 1, 5, 6, 7, 8, 9 in the outline and installation example chart Wall-mounted 90 (B2) Numbers 1, 5, 6, 7, 8, 9, 10 in the outline and installation example chart Flange type (F) Numbers 11, 14 in the outline and installation example chart Guardrail type (h) Numbers 2, 12, 13, 14, 15 in the outline and installation example chart Bracket type (Z) Number 16 in the outline and installation example chart Outline and installation illustration
Ordering Instructions
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pieces) Gross Weight (kg)/box BED358-60W 3.17 635*260*325 6 21 ◆When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, and explosion-proof marks; for example: BED358 50W explosion-proof lamp with junction box, ceiling-mounted installation, then the product model is: BED358 50x;
◆The product is shipped with the corresponding wattage light source installed;
◆If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.
