BXL Series LED Explosion-Proof Ceiling Light
- Commodity name： BXL Series LED Explosion-Proof Ceiling Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying;
◆ Exposed fasteners made of stainless steel with high corrosion resistance;
◆ Housing joint surface uses threaded and straight-mouth explosion-proof design, reliable explosion-proof performance;
◆ The entire lamp light source uses high-quality large-size high-brightness chips and advanced packaging technology, luminous efficiency above 100LM/W, durability over 20,000 hours, annual light decay not exceeding 10%, color rendering index >80Ra, truly achieving high luminous efficiency and high color rendering;
◆ Uses high-quality high-transmittance tempered glass, resistant to high temperature, aging, and 4J impact;
◆ Uses specially made power supply to meet the floating requirements of mains electricity, surge resistance up to over 4000V;
◆ Uses large-angle optical refraction luminous design;
◆ Standards implemented: GB/T38361, GB/T 3836.2, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC61241-0, IEC61241-1, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms for general or operational lighting;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for explosive gas environments in Zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature classes T1-T6;
◆ Suitable for ambient temperatures from -40℃ to +50℃.
Ordering Information
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pieces) Gross Weight (kg)/box BXL-30W 2.72 480*480*235 4 12 ◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, and explosion-proof marks; e.g., LED 50W explosion-proof lamp;
◆ The product is equipped with the corresponding wattage light source at the factory;
◆ If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.

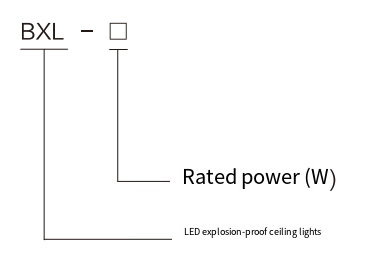

Model Meaning

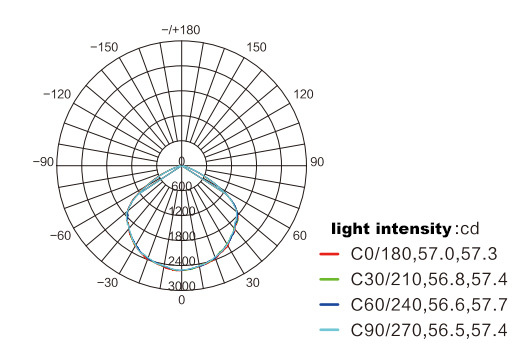

Light Distribution Curve
Technical Parameters
Model Specification Rated Voltage Rated Power Explosion-proof Mark Entry Specification Suitable Cable Outer Diameter Protection Level BXL-30 AC 220V
50 Hz
(Please specify if special requirements)30W Ex db IIC
T6 Gb;
Ex tb IIIC
T80℃ DbG3/4
M25
NPT3/4Φ10~Φ15mm IP66
WF1
WF2*BXL-40 40W BXL-50 50W BXL-60 60W BXL-80 80W BXL-100 100W ★ Orders marked with * must be specified.

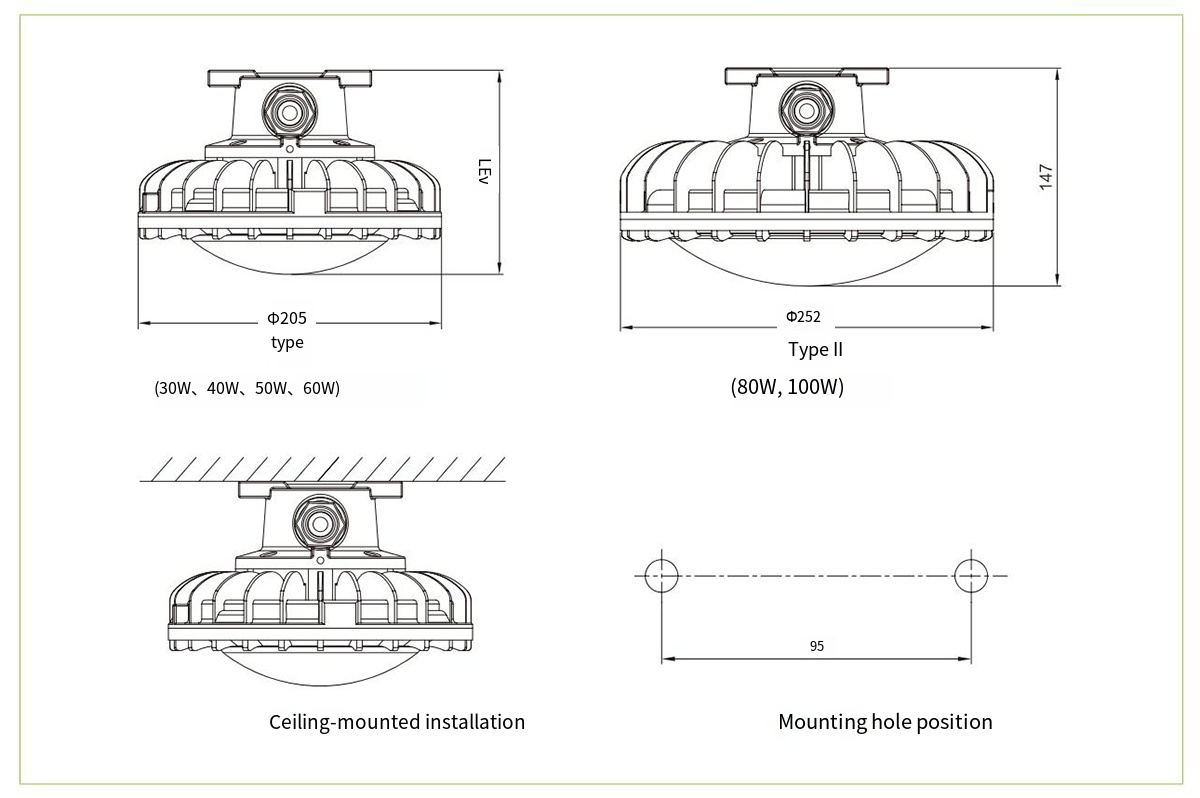

Outline and Installation Diagram
