◆ Widely used in hazardous environments such as petroleum extraction, refining, chemical industry, textiles, military industry, as well as offshore oil platforms and oil tankers;

◆ Standard supply products are suitable for air conditioning in environments with T1 conditions (-7 to +43℃), T2 conditions (-7 to +35℃), and T3 conditions (-7 to +52℃);

◆ Models suitable for special environmental temperatures (-45 to +55℃) can be customized according to user requirements;

◆ IIC class

Product Features

◆ Air conditioners can be divided into single cooling or cooling and heating types based on performance;

◆ Explosion-proof air conditioners are designed based on high-quality brand air conditioners, following the requirements of the GB3836 series standards, and processed with special manufacturing techniques for explosion-proof treatment;

◆ Generally, the original model of the wall-mounted air conditioner uses Gree air conditioners of corresponding specifications, but users can choose other brands upon request;

◆ The piping connection of explosion-proof air conditioners is the same as ordinary air conditioners. Electrical connections must follow explosion-proof electrical installation procedures, first introducing power into the explosion-proof control box, then separately connecting to the indoor and outdoor units from the control box;

◆ The explosion-proof control box is equipped with a power switch;

◆ All explosion-proof air conditioners are shipped with a complete set of product technical data and installation and usage manuals. Users must strictly follow the instructions for installation and use;

◆ The product has a compact structure, elegant appearance, and is easy to install and maintain;

◆ Steel pipe or cable wiring.

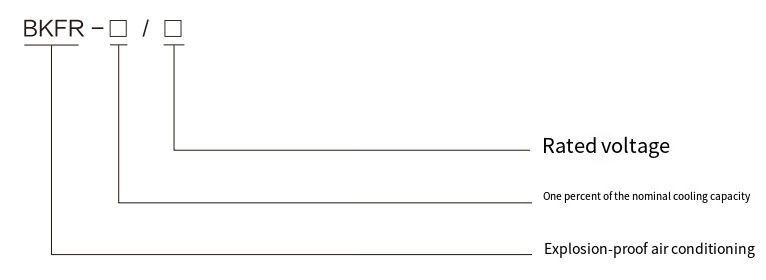

Model Meaning

Technical Parameters

Product Model

Common Name

Operating Voltage

Power Frequency

Cooling Capacity

Heating Capacity

Rated Input Power

Dimensions (L×W×H)

Weight

Applicable Area (m²)

Cooling

Heating

Indoor

Outdoor

Indoor

Outdoor

Within 3m Height

BKFR-26

AC220V

50Hz

2500W

2860W

950W

920W

770×240×179

510×680×250

19KG

38KG

10-15

BKFR-35

1.5P

AC220V

3500W

4000W

1350W

1380W

770×240×179

540×860×255

19KG

44KG

15-23

BKFR-50

AC220V

5000W

1910W

1600W

1035×313×203

543×860×255

25KG

53KG

20-30

BKFR-50

AC220V

5000W

5100W

1920W

1820W

540×1780×270

890×793×414

75KG

80KG

22-32

BKFR-71

AC220V/380V

7100W

7500W

2630W

2680W

540×1780×270

890×793×414

90KG

105KG

30-45

BKFR-120

AC220V/380V

12000W

13100W

4400W

4780W

600×1780×362

940×1243×440

95KG

133KG

45-80

Standards: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.4, GB/T 3836.8, GB/T 3836.9, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-11, IEC 60079-15, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-11, EN 60079-15, EN 60079-18.

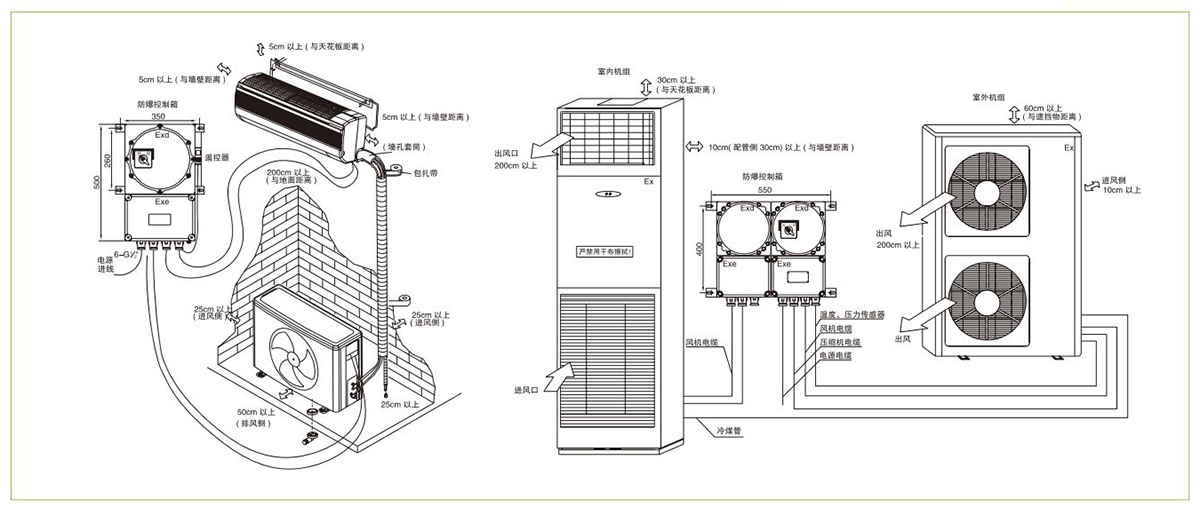

Outline and Installation Diagram

Ordering Information

◆ Please specify the complete product model when ordering. The original model of the air conditioner uses Gree air conditioners of corresponding specifications. Please specify if other brands are required;

◆ When selecting an air conditioner, please choose according to the room area and refer to the selection table;

◆ Please specify if the connection pipe length exceeds the standard configuration;

◆ Auxiliary electric heaters can be configured. Please specify if needed when ordering;

◆ Since air conditioner installation requires certain expertise, it is recommended to have it installed by professionals.
