BT35-11 Series Explosion-Proof Axial Flow Fan

Category:

Axial Flow Fan

Commodity name： BT35-11 Series Explosion-Proof Axial Flow Fan

Message

Description

Environmental Application

◆ Suitable for hazardous areas Zone 1 and Zone 2;

◆ Suitable for explosive gas atmospheres of groups IIA, IIB T4 and below;

◆ Widely used in hazardous locations such as petroleum, chemical, and military industries for factory buildings or indoor and outdoor ventilation, cooling, and heat dissipation.

Product Features

◆ Explosion-proof axial flow fan consists of explosion-proof motor, blades, fan casing, and other parts;

◆ Explosion-proof axial flow fan features low noise, low energy consumption, and explosion-proof capability;

◆ Duct type: fan has right-angle flanges at both ends of the outer shape, can be installed in the middle of the duct;

◆ Post type: in addition to wall-mounted features, equipped with post bracket accessories;

◆ Fixed type: in addition to wall-mounted features, bottom welded fixed mounting bracket;

◆ Explosion-proof mark: Ex db IIC T4 Gb/ Ex tb IIIC T130℃ Db; Ex db IIB T4 Gb/ Ex tb IIIC T130℃ Db;

◆ Rated voltage: AC380/220V, cable wiring;

◆ Standards: GB/T3836.1, GB/T3836.2, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN60079-0, EN 60079-1, EN61241-0, EN61241-1.

Model Meaning

Ordering Information

◆ Please specify the axial flow fan model specifications, installation method, machine number, and quantity in detail when ordering;

◆ If there are special requirements, please specify separately.

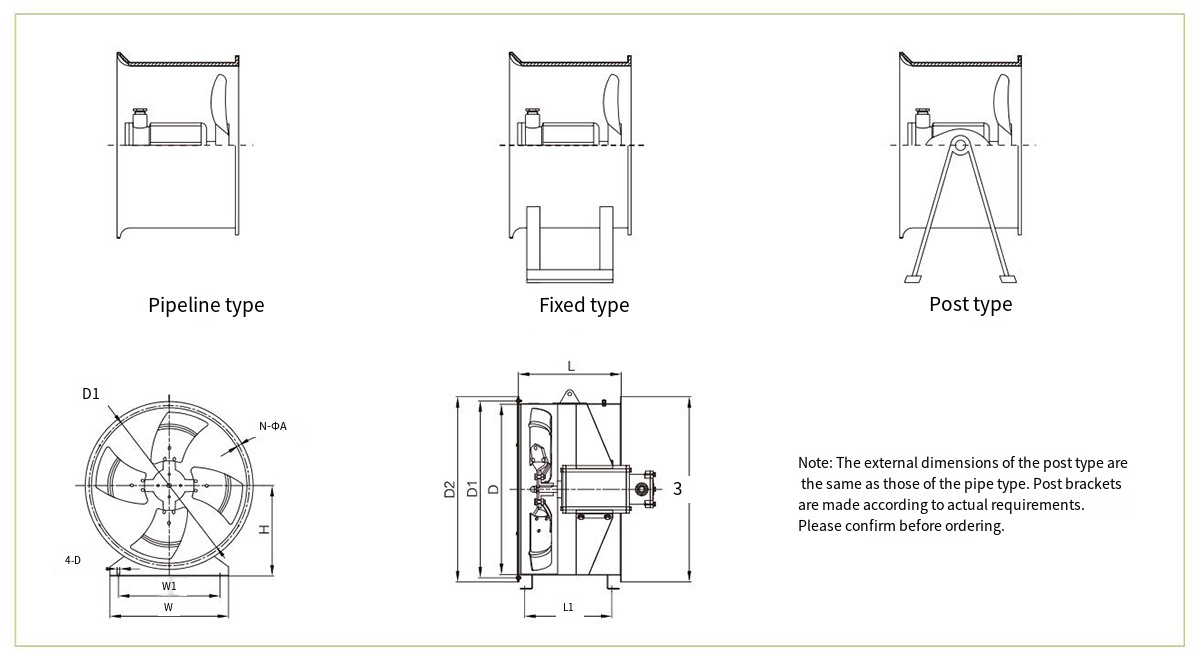

Outline and Installation Diagram

Serial Number	Model	Machine Number	D	D1	D2	D3	L	Fixed Type (Bracket)				N-ΦA	ΦD
Serial Number	Model	Machine Number	D	D1	D2	D3	L	L1	W	W1	H	N-ΦA	ΦD
1	BT35-11-2.8	2.8#	Φ290	Φ317	Φ345	Φ345	300	190	200	150	210	4-Φ7.5	8.5
2	BT35-11-3.15	3.15#	Φ322	Φ349	Φ377	Φ377	300	190	220	170	230	4-Φ7.5	8.5
3	BT35-11-3.5	3.5#	Φ363	Φ390	Φ418	Φ418	330	220	220	170	250	4-Φ7.5	8.5
4	BT35-11-4	4#	Φ408	Φ435	Φ463	Φ463	330	220	300	240	270	6-Φ7.5	11
5	BT35-11-4.5	4.5#	Φ459	Φ486	Φ514	Φ514	330	220	300	240	300	6-Φ7.5	11
6	BT35-11-5	5#	Φ508	Φ535	Φ563	Φ563	330	220	400	320	320	6-Φ7.5	13
7	BT35-11-5.6	5.6#	Φ572	Φ599	Φ627	Φ627	443	300	400	320	355	6-Φ7.5	13
8	BT35-11-6.3	6.3#	Φ630	Φ657	Φ685	Φ685	443	300	500	400	395	6-Φ7.5	16
9	BT35-11-7.1	7.1#	Φ717	Φ744	Φ772	Φ772	550	400	600	480	435	6-Φ7.5	16
10	BT35-11-8	8#	Φ812	Φ839	Φ867	Φ867	550	400	600	480	490	6-Φ7.5	16
11	BT35-11-9	9#	Φ910	Φ948	Φ985	Φ985	680	500	700	580	550	6-Φ7.5	16
12	BT35-11-10	10#	Φ1020	Φ1055	Φ1090	Φ1090	680	500	800	650	605	6-Φ7.5	16
13	BT35-11-11.2	11.2#	Φ1140	Φ1177	Φ1210	Φ1205	680	500	900	650	660	6-Φ7.5	16

Machine Number	Impeller Diameter (mm)	Impeller Tip Speed (m/s)	Impeller Speed (r/min)	Blade Angle (dag)	Air Volume (m³/h)	Total Pressure (Pa)	Efficiency	Noise dB(A)	Power Consumption (kW)
2.8	280	42.5	2900	15	1649	152	0.87	70	0.18
				20	2167	169	0.88	72	0.18
				25	2685	173	0.895	73	0.18
				30	2921	186	0.88	74	0.18
				35	3202	232	0.86	75	0.25
		21.3	1450	15	826	38	0.87	55	0.18
				20	1086	43	0.88	57	0.18
				25	1346	44	0.895	59	0.18
				30	1464	48	0.88	60	0.18
				35	1605	60	0.86	62	0.18
3.15	315	47.5	2900	15	2339	192	0.87	74	0.18
				20	3074	214	0.88	76	0.25
				25	3810	220	0.895	77	0.37
				30	4144	237	0.88	78	0.37
				35	4545	294	0.86	79	0.55
		23.9	1450	15	1169	48	0.87	59	0.18
				20	1537	53	0.88	61	0.18
				25	1905	55	0.895	62	0.18
				30	2072	59	0.88	63	0.18
				35	2273	74	0.86	65	0.18
3.55	355	53.9	2900	15	3367	241	0.87	76	0.37
				20	4426	271	0.88	79	0.55
				25	5484	278	0.895	80	0.55
				30	5965	300	0.88	81	0.75
				35	6542	372	0.86	82	1.1
		27	1450	15	1680	61	0.87	61	0.18
				20	2208	68	0.88	63	0.18
				25	2737	70	0.895	65	0.18
				30	3265	74	0.88	66	0.18
				35	3977	93	0.86	68	0.18
4	400	60.7	2900	15	4806	310	0.87	79	0.55
				20	6316	345	0.88	80	1.1
				25	7826	354	0.895	83	1.1
				30	8513	380	0.88	84	1.1
				35	9336	473	0.86	85	1.5
		30.4	1450	15	2406	77	0.87	65	0.25
				20	3163	86	0.88	67	0.25
				25	3922	88	0.895	68	0.25
				30	4263	95	0.88	69	0.25
				35	4678	119	0.86	70	0.25
4.5	450	34.2	1450	15	3427	98	0.87	68	0.25
				20	4504	110	0.88	70	0.25
				25	5881	113	0.895	71	0.25
				30	6070	121	0.88	72	0.37
				35	6658	150	0.86	73	0.37
5	500	38	1450	15	4700	122	0.87	71	0.25
				20	6178	135	0.88	73	0.37
				25	7655	138	0.895	74	0.37
				30	8832	149	0.88	75	0.55
				35	9133	185	0.86	76	0.75
		25.1	960	15	3314	53	0.87	62	0.37
				20	4129	59	0.88	64	0.37
				25	5117	61	0.895	65	0.37
				30	5566	65	0.88	66	0.37
				35	6104	81	0.86	68	0.37
5.6	560	42.5	1450	15	6595	151	0.87	73	0.37
				20	8667	169	0.88	75	0.55
				25	10739	173	0.895	77	0.75
				30	11682	186	0.88	77	1.1
				35	12812	232	0.86	79	1.1
5.6	560	28.1	960	15	4362	67	0.87	64	0.37
				20	5730	74	0.88	66	0.37
				25	7101	75	0.895	67	0.37
				30	7724	81	0.88	69	0.37
				35	8471	101	0.86	71	0.37
6.3	630	47.8	1450	15	9393	213	0.87	77	0.75
				20	12345	236	0.88	79	1.1
				25	15297	242	0.895	80	1.5
				30	16639	236	0.88	81	1.5
				35	18250	297	0.86	82	2.2
		53.9	960	15	6219	84	0.87	68	0.37
				20	8173	94	0.88	70	0.37
				25	10128	96	0.895	71	0.37
				30	11016	104	0.88	72	0.75
				35	12082	128	0.86	71	0.75
7.1	710	31.7	1450	15	13444	244	0.87	80	1.5
				20	17670	271	0.88	81	2.2
				25	21895	282	0.895	82	2.2
				30	23815	300	0.88	83	3
				35	26120	372	0.86	84	4
		36.7	960	15	8902	108	0.87	72	0.75
				20	11700	120	0.88	74	0.75
				25	14498	123	0.895	75	0.75
				30	15769	131	0.88	76	0.75
				35	17296	164	0.86	78	1.1
8	800	60.7	1450	15	19235	310	0.87	82	2.2
				20	25280	345	0.88	83	4
				25	31325	354	0.895	84	4
				30	34073	380	0.88	85	5.5
				35	40370	473	0.86	86	7.5
		40.2	960	15	12377	136	0.87	74	0.75
				20	16733	151	0.88	76	1.1
				25	20735	155	0.895	77	1.5
				30	22559	167	0.88	78	1.5
				35	24739	208	0.86	79	2.2
9	900	45.2	960	15	18132	172	0.87	78	1.5
				20	23830	191	0.88	79	2.2
				25	29529	196	0.895	80	2.2
				30	32119	211	0.88	81	3
				35	35227	263	0.86	82	4
10	1000	50.3	960	15	24874	213	0.87	79	2.2
				20	32691	236	0.88	80	3
				25	40508	242	0.895	81	4
				30	44062	261	0.88	82	4
				35	48326	324	0.86	83	7.5
11.2	1120	56.3	960	15	34944	267	0.87	83	4
				20	45927	297	0.88	84	5.5
				25	56909	304	0.895	85	7.5
				30	61091	337	0.88	86	7.5
				35	67892	407	0.86	88	11
