BA8050 Explosion-Proof Button Component
- Commodity name： BA8050 Explosion-Proof Button Component
- Description
-
Environmental Application
◆This product is an explosion-proof component and should be used with increased safety explosion-proof enclosures; it must not be used alone in explosive environments;
◆This product is suitable for LBZ81 series explosion-proof operating columns;
◆This product is suitable for LBZ8050 series explosion-proof and corrosion-proof operating columns;
◆This product is suitable for LA53 series explosion-proof main controllers;
◆This product is suitable for LA8050 series explosion-proof and corrosion-proof operating columns;
◆This product is suitable for BX□ series explosion-proof distribution devices;
◆This product is suitable for BXK series explosion-proof control boxes.
Product Features

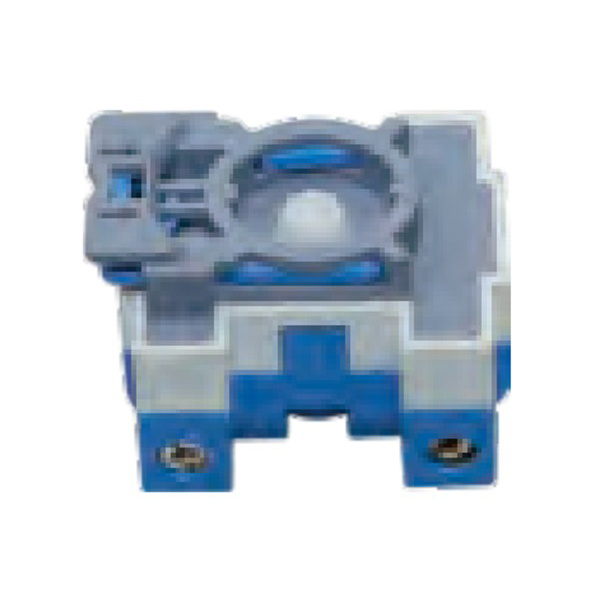

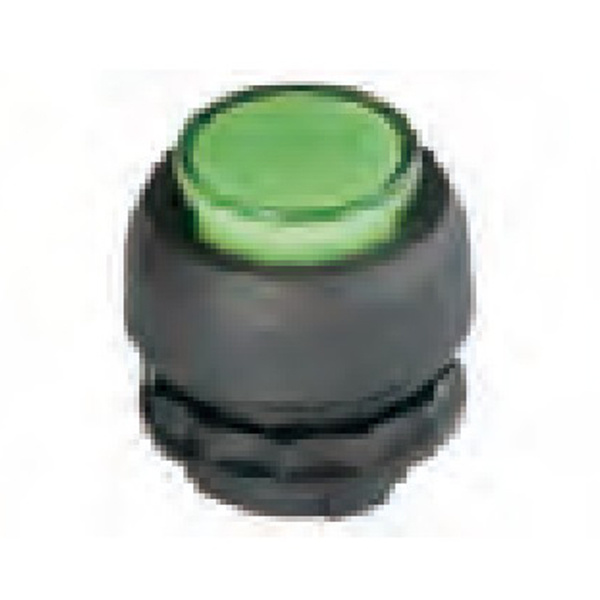

◆This product consists of two parts: button head and button core;
◆The enclosure is made of glass fiber reinforced unsaturated polyester resin molding;
◆The indicator light uses a high-efficiency, long-life, energy-saving and environmentally friendly LED light source;
◆Installation method: top-mounted;
◆The button head and button core are directly installed on the cover.

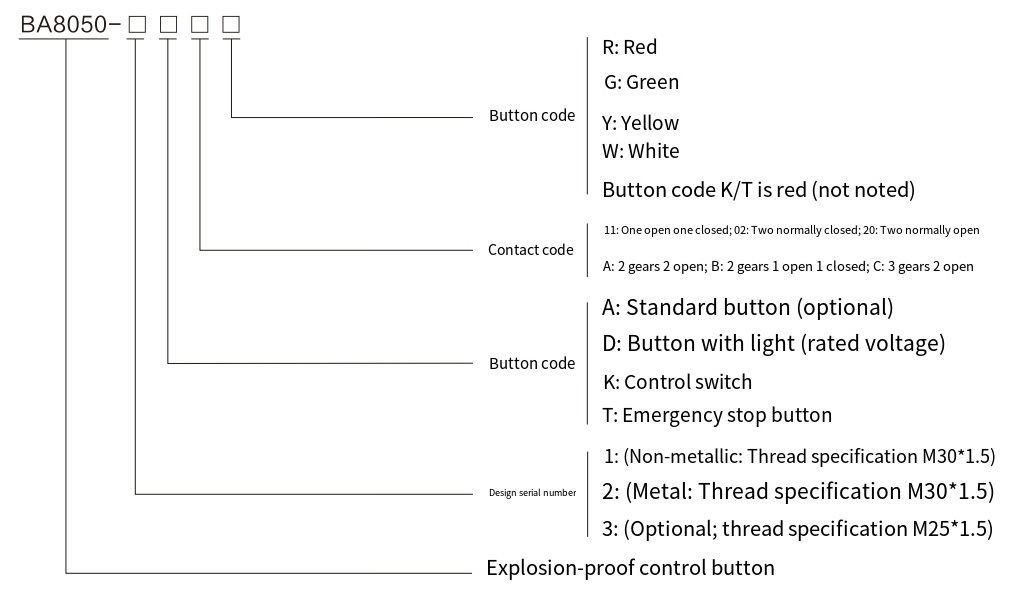

Model Meaning
Technical Parameters
◆Explosion-proof mark: Ex db eb IIC Gb;
◆Button rated voltage: AC220~380V, DC220V;
◆Button rated current: 10A (16A);
◆Indicator light rated voltage: AC/DC12~36V, AC/DC48~120V, DC220V, AC220~380V;
◆Indicator light rated current: 20mA;
◆Indicator light power: ≤ 2W (LED);
◆Mechanical life: 100,000 cycles;
◆Applicable ambient temperature: -40℃~+45℃;
◆Applicable wire diameter for wiring terminals: 2.5mm²;
◆Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31.
Button Head Color
Button Head Shape Button Shape Button Color Button Code
Standard Button Red, Yellow, Green
White, BlueA

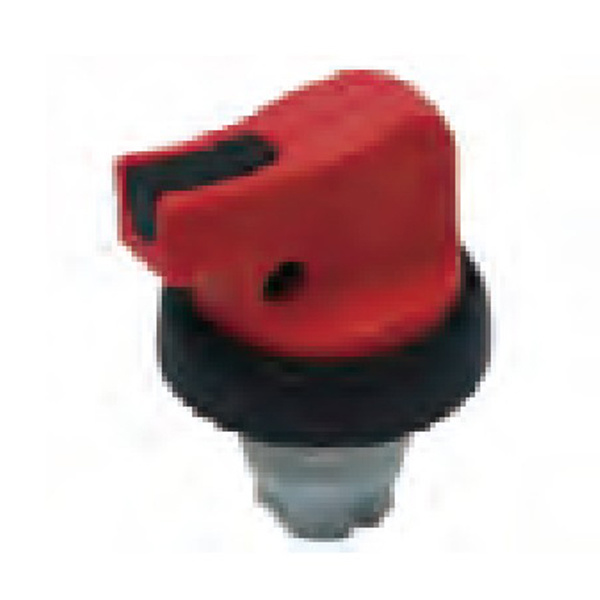

Standard Button Red K

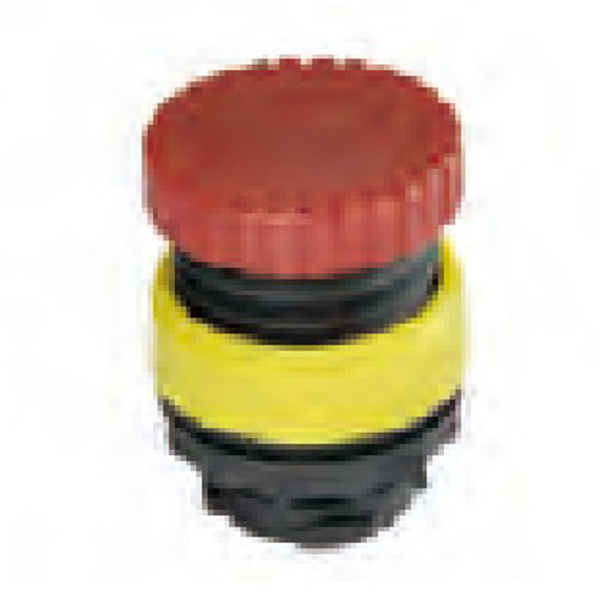

Mushroom Button Red T

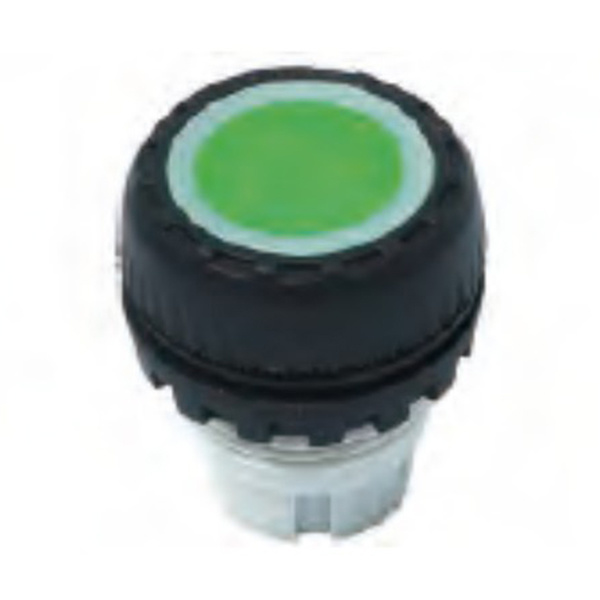

Illuminated Button Red, Yellow, Green

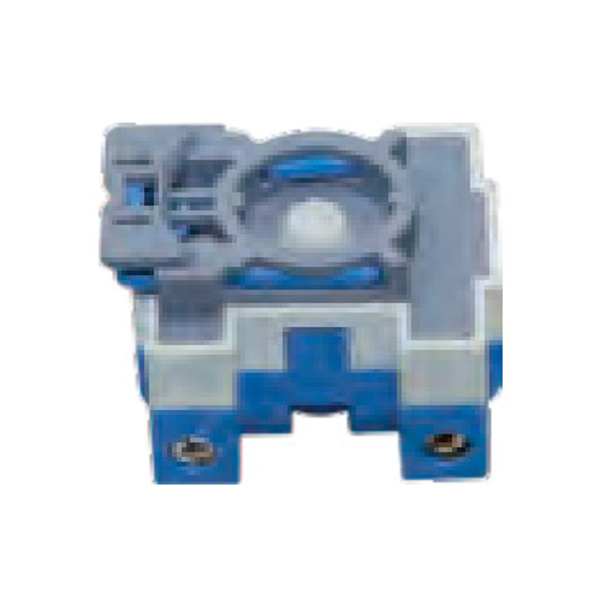

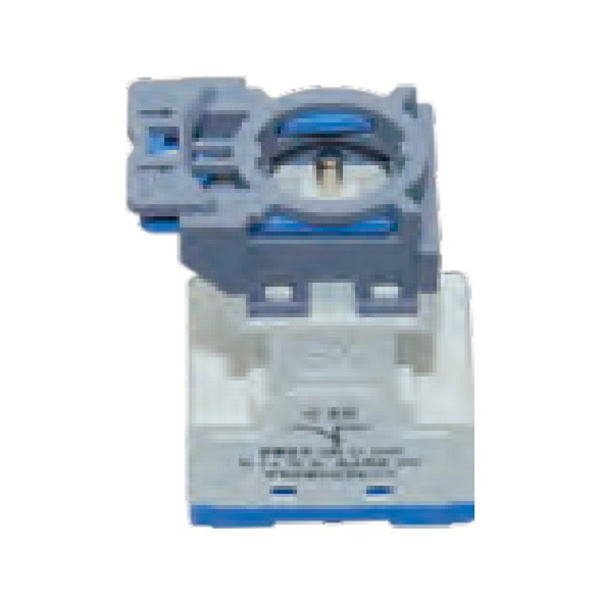

White, BlueD Base Type
Button Head Shape Contact Diagram Contact Form Contact Code

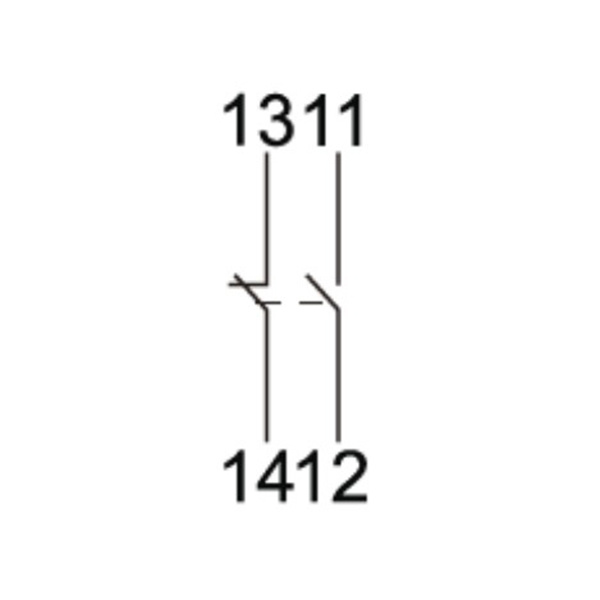

One Normally Open One Normally Closed 11

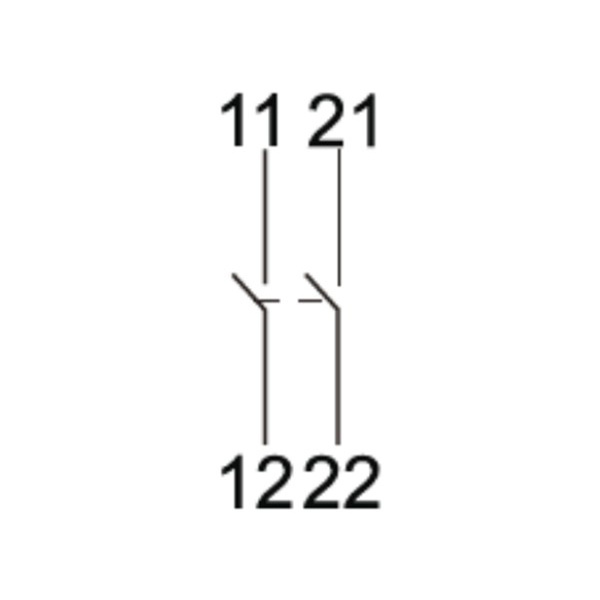

Two Normally Closed 02

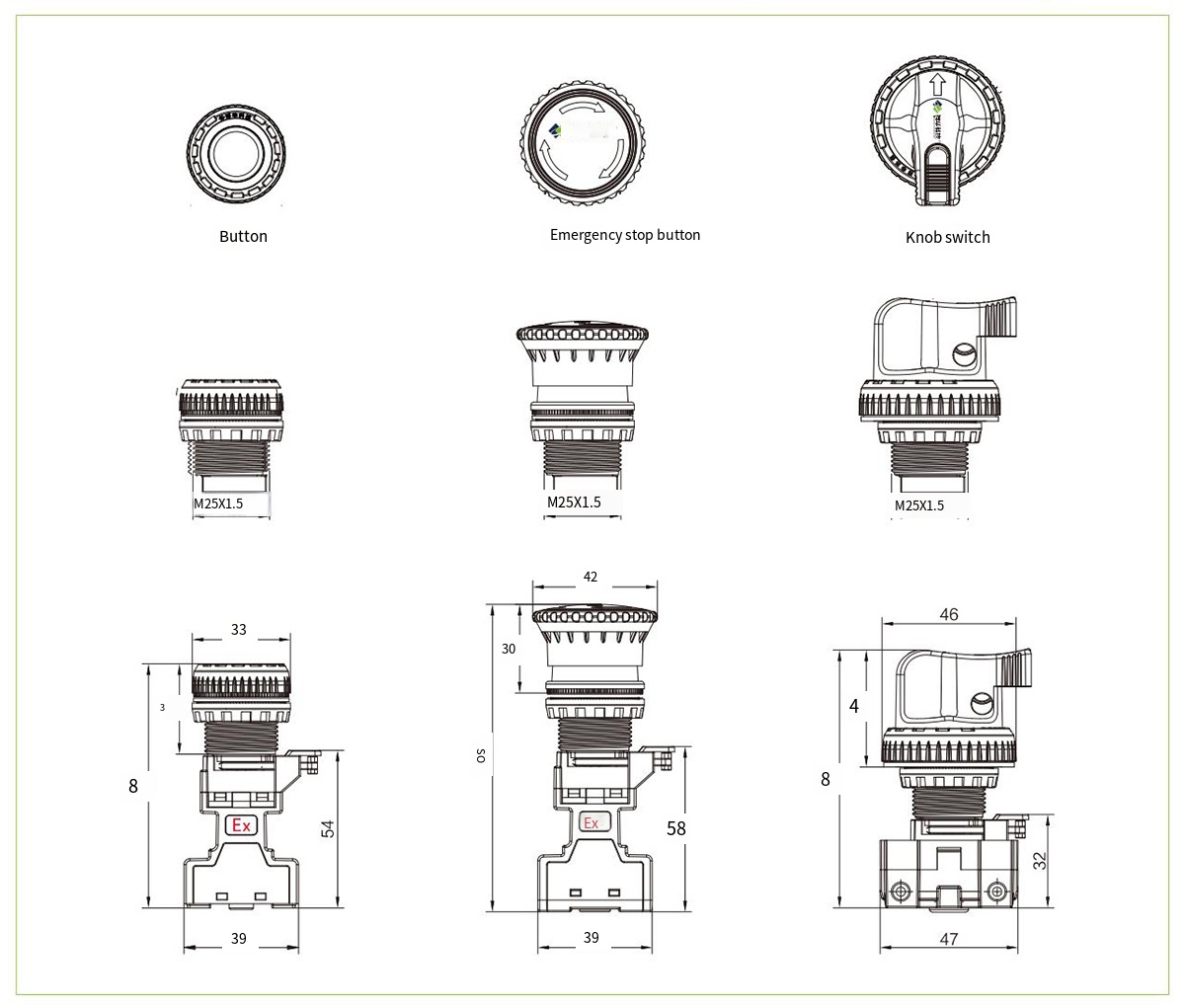

Two Normally Open 20 Outline and Installation Diagram
