BD8050 Explosion-Proof Indicator Light
- Commodity name： BD8050 Explosion-Proof Indicator Light
- Description
-
Environmental Application
◆This product is an explosion-proof component and should be used with increased safety explosion-proof enclosures; it must not be used alone in explosive environments;
◆This product is suitable for LBZ81 series explosion-proof operating columns;
◆This product is suitable for LBZ8050 series explosion-proof and corrosion-proof operating columns;
◆This product is suitable for LA53 series explosion-proof main controllers;
◆This product is suitable for LA8030 series explosion-proof and corrosion-proof main controllers;
◆This product is suitable for BX□ series explosion-proof distribution devices;
◆This product is suitable for BXK series explosion-proof control boxes.
Product Features
◆This product is an integrated indicator light;
◆The enclosure is made of high-quality imported engineering plastic by injection molding;
◆The indicator light uses high-efficiency, long-life, energy-saving, and environmentally friendly LED light source;
◆The installation method is top-mounted;
◆Top-mounted: the indicator light body and lampshade are directly installed on the cover.
Technical Parameters
◆Explosion-proof mark: Ex db eb IIC Gb;
◆Rated voltage: AC/DC 12~36V, AC/DC 48~120V, DC 220V, AC 220~380V;
◆Power: ≤2W (LED);
◆Applicable ambient temperature: -40℃~+45℃;
◆Applicable wire diameter for terminals: 2.5mm²;
◆Standards implemented: GB/T3836.1, GB/T 3836.2, GB/T3836.3, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, EN60079-0, EN 60079-1, EN60079-7, EN60079-31.

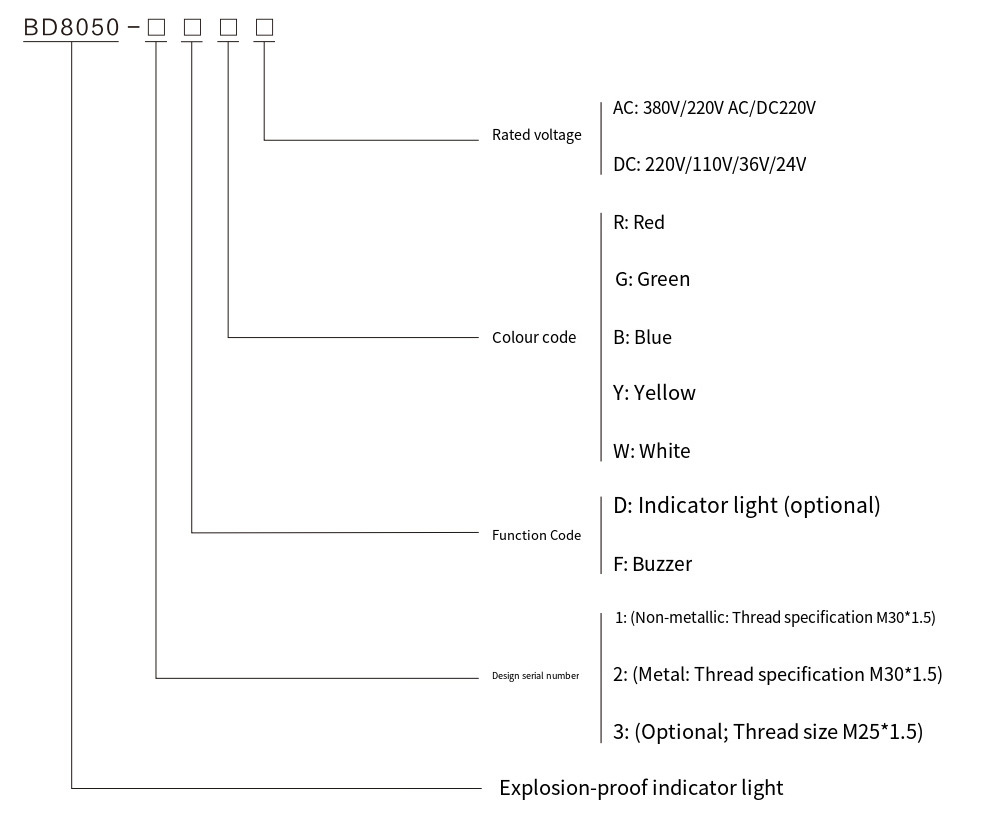

Model Meaning

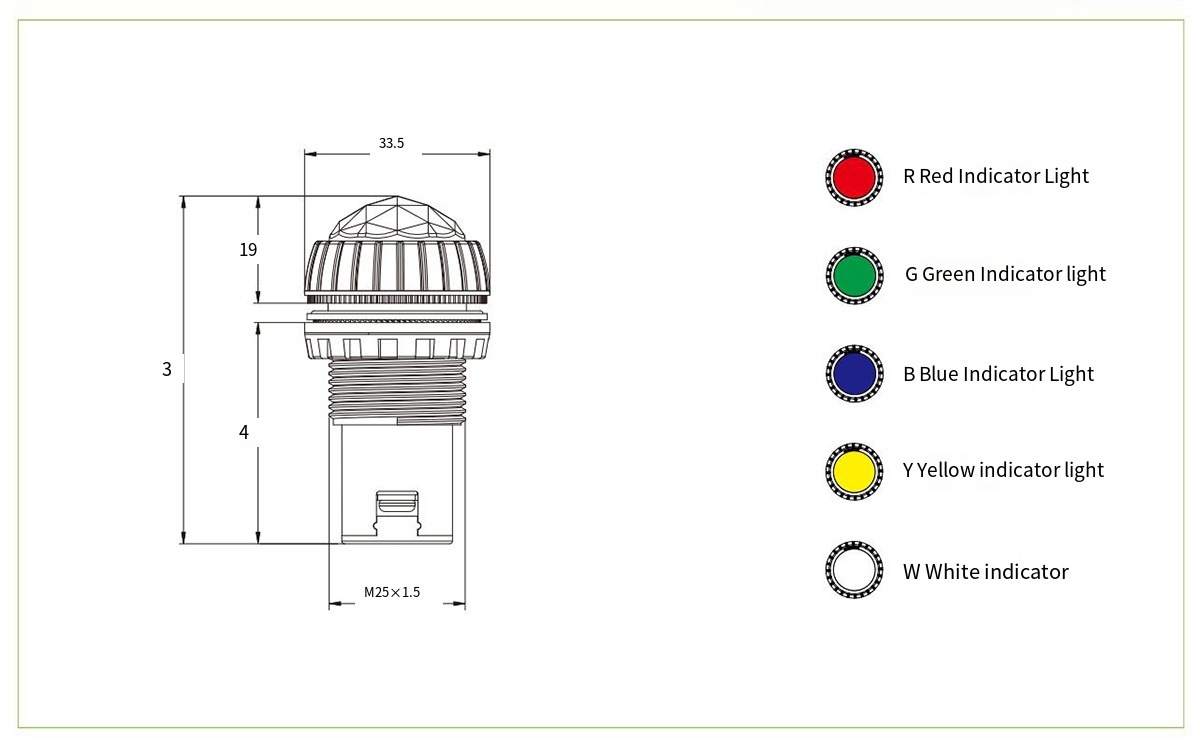

Outline and Installation Diagram
