BLD Series Solar Explosion-Proof Street Light
- Commodity name： BLD Series Solar Explosion-Proof Street Light
- Description
-
Product Features
◆Multiple design schemes can be provided according to different on-site requirements and actual conditions;
◆Photovoltaic panels use high-efficiency monocrystalline silicon for more efficient photoelectric conversion, with a service life of up to 25 years;
◆High cost-performance maintenance-free lead-acid batteries or lithium batteries can be configured according to actual on-site needs;
◆Adopts high-precision controller with constant current mode, load short circuit protection, reverse discharge protection, polarity reverse connection protection, lightning protection, charge and discharge protection functions;
◆Uses isolated circuit design for a more stable system;
◆Equipped with short circuit detection and short circuit protection functions;
◆Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.3, GB/T 3836.7, GB/T 3836.9, GB 12476-1, GB 12476-5, IEC 60079-0, IEC 60079-1, IEC60079-5, IEC 60079-7, IEC 60079-18, IEC 61241-0, IEC61241-1, EN60079-0, EN60079-1, EN60079-5, EN60079-7, EN 60079-18, EN61241-0, EN61241-1;
◆Explosion-proof mark: Ex dbeb mb lIC T6 Gb; Ex ttb C T80℃ Db.
Environmental Applications
◆Widely used in hazardous environments such as oil extraction, refining, chemical industry, military industry for plant and road lighting;
◆Suitable for locations with difficult wiring and installation maintenance;
◆Suitable for environments with good sunlight conditions;
◆Suitable for ambient temperatures from -40℃ to +70℃.
Working Principle
◆The solar lighting system uses solar energy as the power source, charges during the day and uses at night, no external power supply needed, safe and reliable, green and energy-saving. Charging and light on/off processes are controlled by a microcomputer; lights turn on automatically at dusk and off at dawn without manual operation, with a long service life;
◆The solar lighting system is a fully automatic working system that operates automatically once the working mode is set. Control modes generally include light control and timing control, usually using light control or a combination of light and timing control. When the light intensity falls below the set value, the controller turns on the light and starts timing. When the timing reaches the set time, it adjusts the brightness or turns off the light.
Technical Parameters

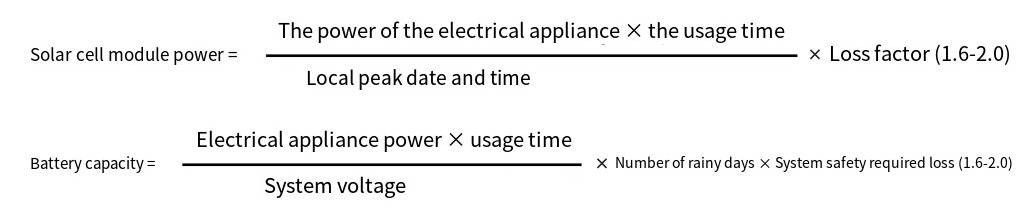

Configuration Table and Quantity Calculation
Solar Explosion-proof Street Light Standard Configuration Table Lamp Power 50W 70W 100W 120W Custom Continuous Working Days in Rainy/Overcast Weather 3 days 3 days 3 days 3 days 1-5 days Daily Working Hours of Lamp 10 hours 10 hours 10 hours 10 hours 6-10 hours Lamp Pole Height 6 meters 7 meters 8 meters 10 meters 4-12 meters Solar Panel Monocrystalline Silicon 200W Monocrystalline Silicon 260W Monocrystalline Silicon 420W Monocrystalline Silicon 470W Configured According to Customization Battery Capacity DC24V/65AH DC24V/90AH DC24V/150AH DC24V/180AH Configured According to Customization Controller DC24V/10A DC24V/10A DC24V/20A DC24V/20A Configured According to Customization
Ordering Instructions
◆When ordering, please select according to the product model specifications and specify the explosion-proof mark;
◆When ordering, please specify the usage area, local average peak sunlight duration, maximum consecutive rainy days, lamp usage hours per night, wind resistance level, etc.;
◆If there are special requirements, please specify separately.

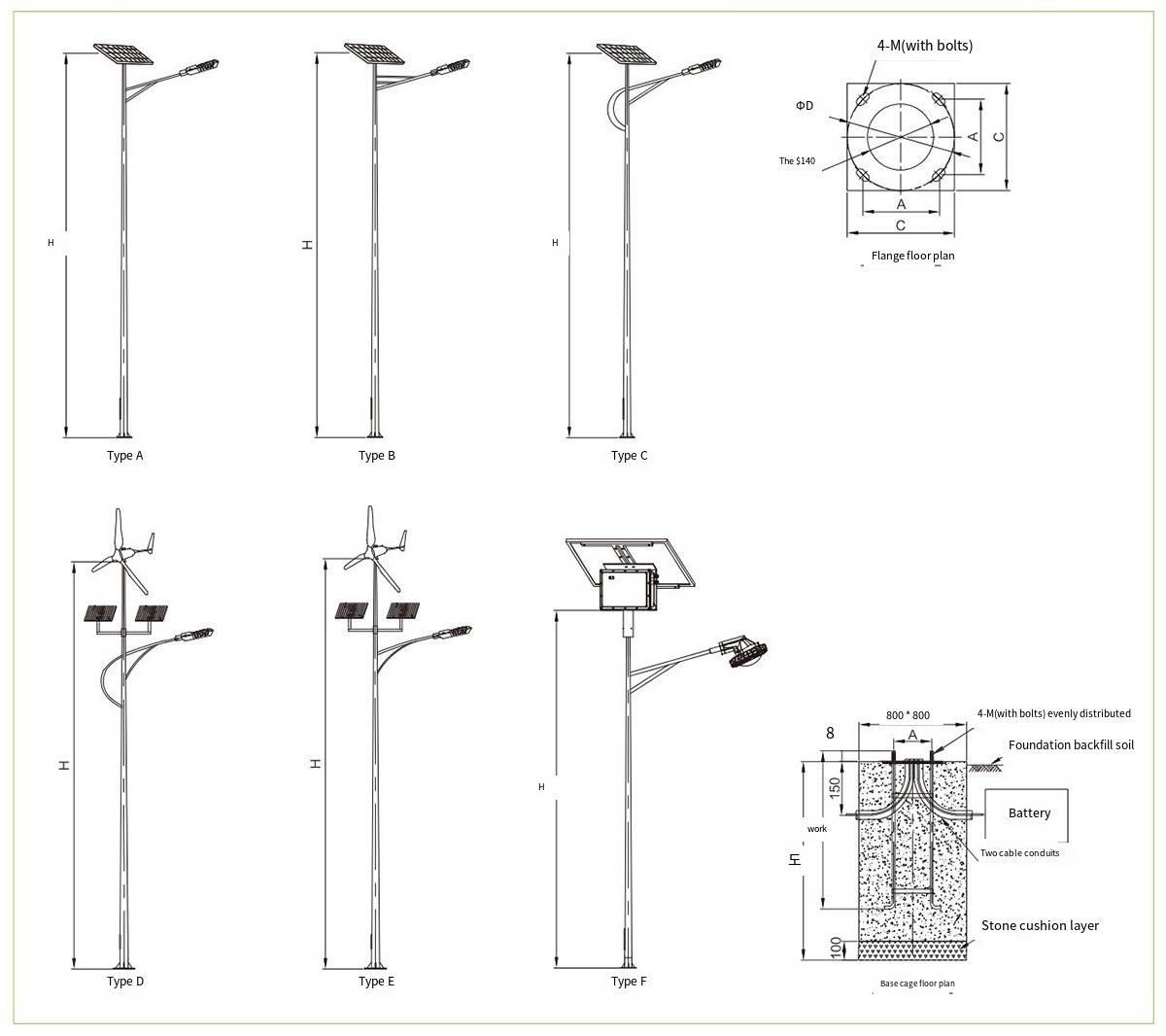

System Structure and Installation Diagram
Product Installation Diagram
Foundation Cage Parameter Table 1
Serial Number Lamp Pole Height (H) H (mm) H1 (mm) A (mm) D (mm) C (mm) M (with bolts) 1 6000 500 800 248 350 350 M18 2 8000 600 900 248 350 350 M18 3 10000 1000 1300 283 400 400 M20 4 12000 1200 1500 283 400 400 M24
