FED128 Series Waterproof, Dustproof, and Corrosion-Resistant Street Light
- Commodity name： FED128 Series Waterproof, Dustproof, and Corrosion-Resistant Street Light
- Description
-
Environmental Applications
◆ Widely used for lighting in urban main roads, secondary roads, branch roads, factories, schools, gardens, city squares, courtyards, communities, and rural roads;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for environments with strong acid, strong alkali, salt, ammonia, chloride ion corrosion, high moisture, dust, and humidity;
◆ Suitable for temperature environments from -40℃ to +50℃.
Product Features
◆ The outer surface or windward side is mainly streamlined to reduce air resistance and enhance wind resistance;
◆ The gaps between modules form air convection, which is more conducive to heat dissipation and ensures the long life of the lamp body;
◆ LED module replacement is simple, very suitable for convenient maintenance and replacement after high-altitude operations;
◆ The sealing ring material of key waterproof parts is made of silicone rubber, maintaining good elasticity and weather resistance in various environments;
◆ Secondary optical design uses lens form, not easy to collect dust, with high optical efficiency;
◆ Power chamber and light source chamber are separated structurally, effectively dissipating heat from the light source chamber to ensure long service life of the lamp;
◆ Driver power supply has no electrolytic capacitor design, ensuring long and reliable electrical life;
◆ Imported LED module light source, unidirectional light emission, luminous efficacy greater than 100LM/W, light decay not exceeding 15% in 5 years, high luminous efficiency, high color rendering, long life, energy saving, and environmentally friendly;
◆ 10KV lightning protection device;
◆ Execution standard: GB7000.1.

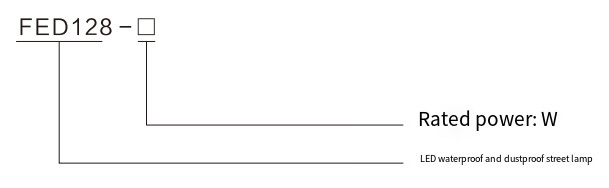

Model Meaning
Technical Parameters
Model Specifications Rated Voltage Luminous Efficacy Rated Power Color Rendering Index Installation Method Protection Level FED128-50 AC 220V
50 Hz
(Please specify if there are special requirements)≥100LM/W 50W ≥80R Wall Mounting
Parallel Installation
Vertical InstallationIP66
WF1
WF2*FED128-100 100W FED128-150 150W FED128-200 200W ◆ Orders with * must be specified.
Appearance and Installation Diagram
Model Specifications L(mm) W(mm) H(mm) FED128-50 423 207 62 FED128-100 519 296 111 FED128-150 610 296 111 FED128-200 699 296 111 Ordering Information
Specification Model Weight (kg)/piece Outer Box Size (mm) Packing Quantity (pieces) Gross Weight (kg)/box FED128-100/120W 5.15 580*340*160 1 5.9 FED128-150/200W 6.2 660*340*160 1 6.95 ◆ When ordering, strictly specify all product parameters and installation accessories according to the model meaning;
◆ The product is equipped with a light source at the factory;
◆ If there are special requirements (such as voltage, etc.), please specify the lamp and color.
