FED218 Series Fixed LED Fixtures
- Commodity name： FED218 Series Fixed LED Fixtures
- Description
-
Environmental Applications
◆ Widely applicable in factories, workshops, warehouses, construction sites, exhibition halls, gymnasiums, highway toll stations, gas stations, supermarkets, farmers' markets, and other places requiring lighting;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for ambient temperatures from -25℃ to +45℃.
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying;
◆ Stainless steel exposed fasteners with high corrosion resistance;
◆ Tempered glass transparent cover, high temperature resistant, aging resistant, high light transmittance, impact resistant to 2J;
◆ Independent compartment structure for power chamber and light source chamber, effectively dissipating heat from the light source chamber to ensure long service life of the lamp (continuous use life over 40,000 hours, normal use over 50,000 hours), switch cycles over 1 million times without damage;
◆ Imported LED module light source, unidirectional light emission, luminous efficacy greater than 100LM/W, light decay not exceeding 15% in 5 years, high luminous efficiency, high color rendering, long life, energy saving, and environmentally friendly;
◆ Special power supply with wide input voltage range, constant current, high voltage resistance (surge voltage 700V, instantaneous voltage 4000V without burning or breakdown) output, and automatic protection functions under various abnormal conditions such as short circuit and open circuit;
◆ High power factor: cosφ ≥ 0.95;
◆ Standards: GB7000.1, GB 7000.10.
Intelligent Control
◆ The lamp is equipped with an intelligent control interface and can be equipped with an intelligent control system (hereinafter referred to as the system) to achieve remote unmanned intelligent control of the lamp;
◆ Energy saving and consumption reduction: The system can improve the reliability and maintainability of turning the lights on and off, effectively reduce the unit energy consumption of lighting by reasonably setting the on/off time and light brightness control scheme, while meeting on-site lighting requirements, saving a large amount of electricity, and extending the life of power grid equipment and lamps;
◆ Scientific management: The system can automatically store and count the collected data, and can be queried and printed at any time, providing reliable data for modernized management of industry lighting.

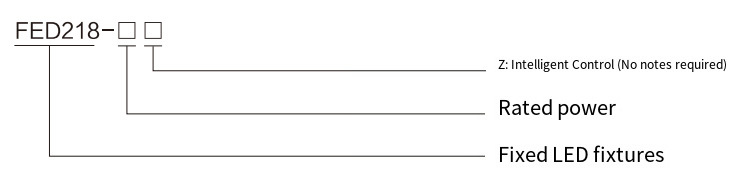

Model Meaning
Technical Parameters
Model Specifications Rated Voltage Rated Power Luminous Efficacy Color Rendering Index Installation Method Protection Level FED218-50 AC 220V
50 Hz
(Please specify if there are special requirements)50W ≥100LM/W ≥80Ra Rod Suspension Installation
Ceiling Mount Installation
Bracket Installation
Hook InstallationIP66
WF1

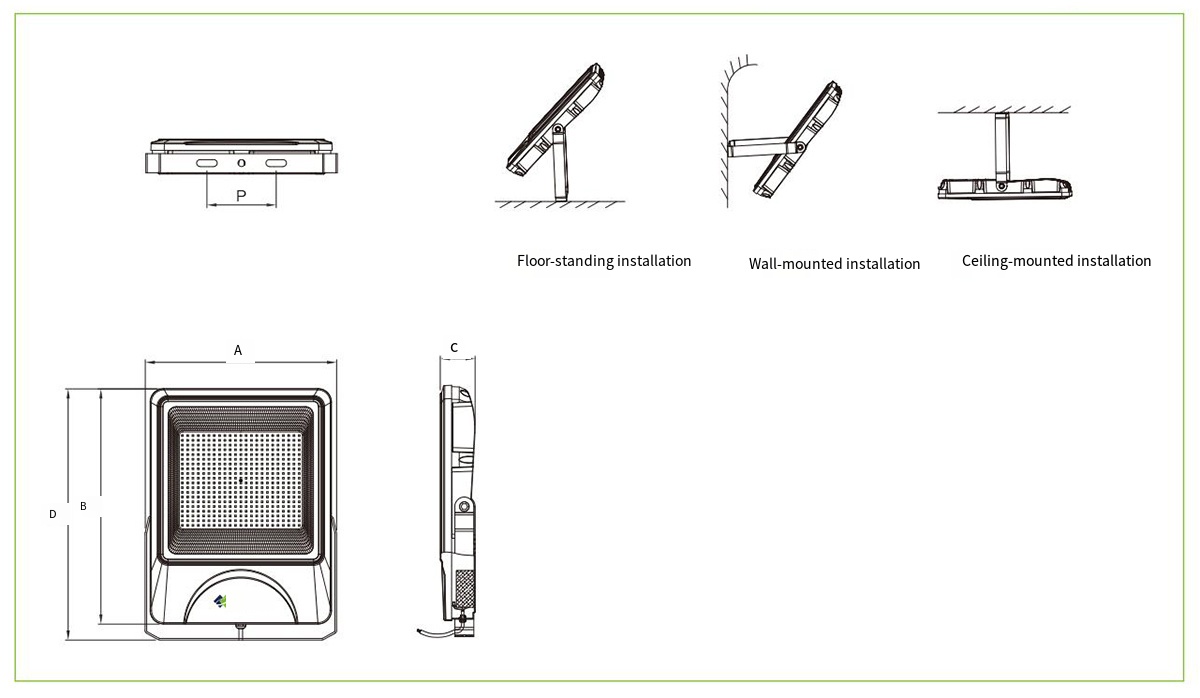

WF2*FED218-100 60W FED218-120 80W FED218-150 100W FED218-200 120W FED218-250 150W FED218-300 200W Outline and Installation Diagram
Serial Number Model Specifications Rated Power Outline Dimensions (mm) Installation Hole Distance A B C D P 1 FED218-50 50W 242.0 275.0 51.0 330.0 110.0 2 FED218-100 100W 285.0 325.0 52.5 350.0 134.0 3 FED218-120 120W 320.0 385.0 58.0 410.0 140.0 4 FED218-150 150W 320.0 385.0 58.0 410.0 140.0 5 FED218-200 200W 354.0 435.0 65.0 465.0 128.0 6 FED218-250 250W 406.0 486.0 70.0 569.0 130.0 7 FED218-300 300W 406.0 486.0 70.0 569.0 130.0 Ordering Information
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packing Quantity (pieces) Gross Weight (kg)/box FED218-50W 1.97 525*370*315 10 22.5 FED218-100W 3.30 450*325*383 5 21 FED218-150W 4.67 363*360*448 4 21 FED218-200W 6.29 390*280*490 3 21.5 ◆ When ordering, strictly specify all product parameters according to the model meaning;
◆ The product is equipped with a light source when leaving the factory;
◆ Please specify if there are special requirements (such as voltage).
