FED268 Series Fixed LED Fixtures
- Commodity name： FED268 Series Fixed LED Fixtures
- Description
-
Environment Usage
◆Widely used in factories, workshops, warehouses, exhibition halls, gymnasiums, shopping malls, hotels, hospitals, schools, farmers' markets, and other places requiring lighting;
◆Suitable for lighting places requiring IP65 protection level.
Product Features
◆The entire lamp light source uses high-quality large-size high-brightness chips and advanced packaging technology, with luminous efficiency above 100LM/W, durability over 50,000 hours, light decay not exceeding 10% within three years, color rendering index >80Ra, truly achieving high luminous efficiency and super durability;
◆Uses advanced high-conductivity heat sink with excellent heat dissipation performance, efficiently conducting heat to ensure the lifespan of the light source;
◆Uses imported high-quality high-transmittance protective cover to reduce light loss and achieve high luminous efficiency;
◆High-precision constant current driver, meeting the requirements of mains voltage fluctuation, power factor ≥0.9;
◆Uses high-quality reflector, scientific light distribution, and multi-reflective surface design to ensure uniform light scattering.
Ordering Instructions
Specifications and Models Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pieces) Gross Weight (kg)/box FED268-I 1.77 325*325*210 1 2.3 FED268-II 2.80 405*405*210 1 3.3 ◆Strictly follow the model meaning when ordering, and specify all product parameters in detail;
◆The product is equipped with the corresponding wattage light source at the factory;
◆If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.

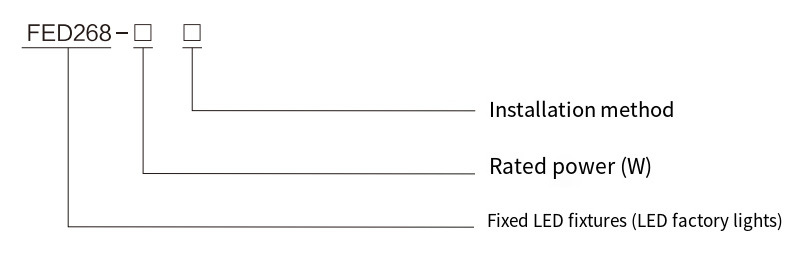

Model Meaning
Technical Parameters
Model Specification Rated Voltage Rated Power Luminous Efficiency Color Rendering Index Installation Method Protection Level FED268-50 AC 220V
50 Hz
(Please specify if there are special requirements)50W ≥100LM/W ≥80Ra Pendant Installation
Ceiling Installation
Bracket Installation
Hook InstallationIP66
WF1
WF2*FED268-60 60W FED268-80 80W FED268-100 100W FED268-120 120W FED268-150 150W FED268-200 200W Orders marked with * must be specified.

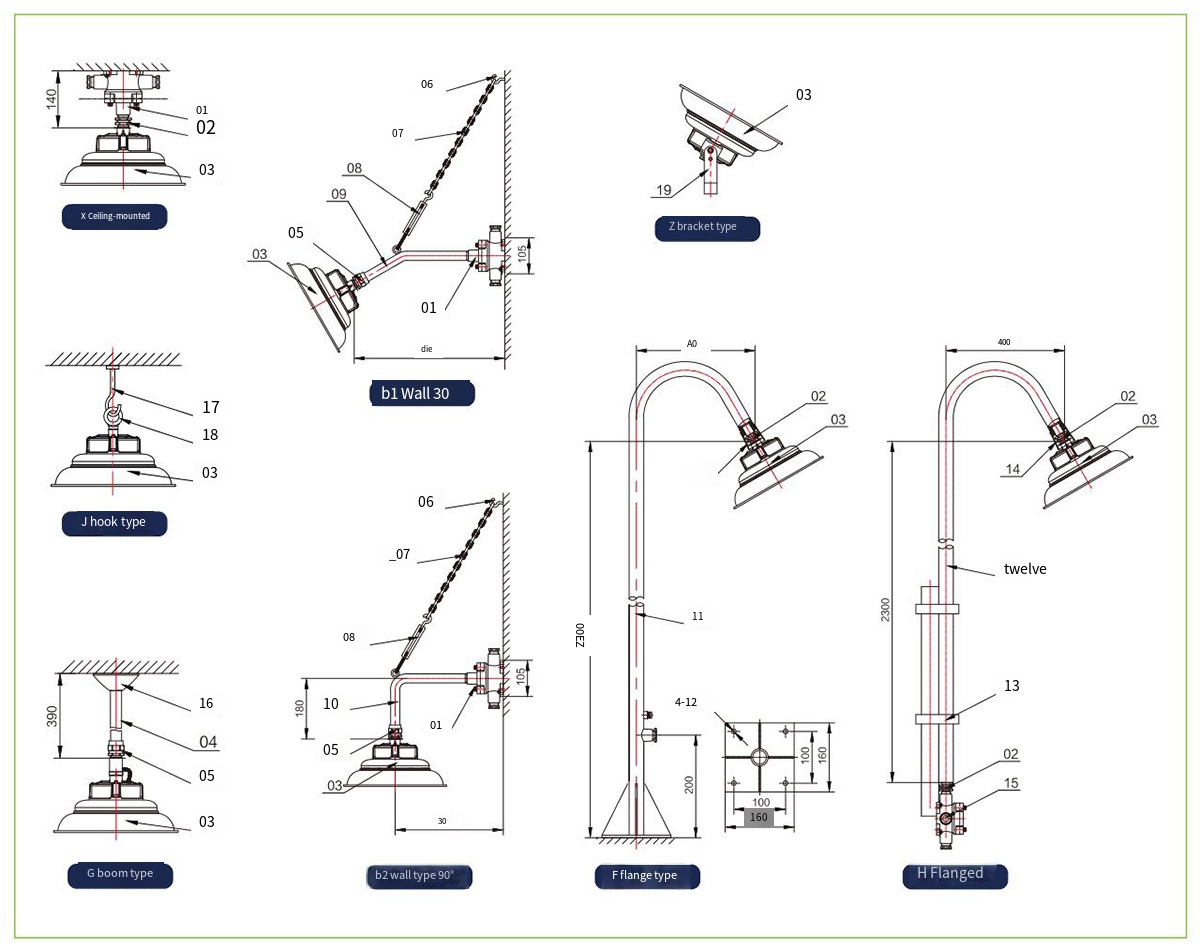

Appearance and Installation Diagram
