FAY Series Waterproof, Dustproof, and Corrosion-Resistant Fluorescent Lamp
- Commodity name： FAY Series Waterproof, Dustproof, and Corrosion-Resistant Fluorescent Lamp
- Description
-
Environmental Use
◆Ambient temperature -25℃ to 55℃;
◆Installation altitude not exceeding 2000m above sea level;
◆Strong acid, strong alkali, salt, ammonia corrosion, wet, dusty, humid environments;
◆Widely used for lighting in factories such as petroleum, chemical, food, pharmaceutical, military industry, especially in workshops with heavy dust.
Product Features
◆The shell is made of gray impact-resistant polycarbonate plastic with strong impact resistance; the transparent cover is made of polycarbonate with high light transmittance; shell materials can be enhanced with flame retardant and anti-static functions upon user request;
◆Uses snap-fit card lock design, easy to open and close, convenient for maintenance;
◆The ballast is a high-efficiency energy-saving type with a power factor of 0.9;
◆Emergency device can be equipped according to user requirements for emergency lighting, with emergency time not less than 90 minutes;
◆This product is resistant to strong acid, strong alkali, salt, ammonia corrosion; waterproof, dustproof, corrosion resistance level WF2, protection level IP65;
◆All exposed fasteners are made of stainless steel; seals are made of silicone rubber, oil-resistant, acid-resistant, alkali-resistant, and high-temperature resistant;
◆When equipped with LED tubes, a human body sensor can be installed; when a person is within the direct lighting range, the lamp works at full power; after the person leaves, the power can drop to between 1-3W, greatly reducing energy consumption; please specify if needed;
◆Multiple installation methods, cable wiring.
Ordering Information
Specifications and Models Net Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pieces) Gross Weight (kg)/box FAY-1×18 1.30 1300*220*305 6 15 FAY-2×18 1.98 1300*220*305 4 15 ◆The product is equipped with a light source at the factory; users do not need to provide separately;
◆Users must strictly order according to the model meaning (including number of tubes, power, installation method, etc.);
◆Please specify if there are special requirements.

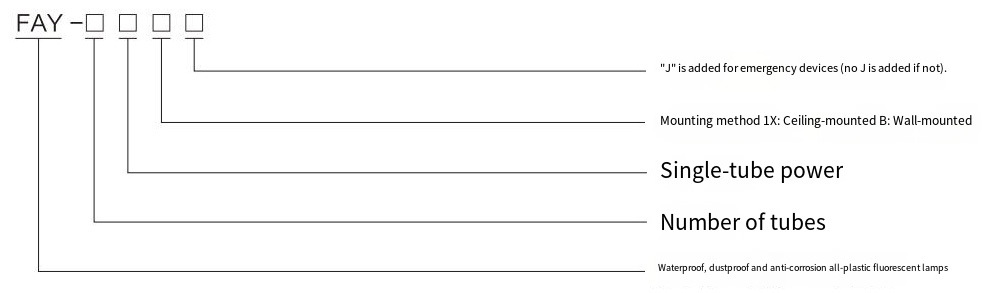

Model Meaning
Technical Parameters
Model Specification Applicable Lamp Tube Rated Voltage Rated Power Entry Device Applicable Cable Outer Diameter Protection Level Corrosion Resistance Level FAY-1×18 T8 AC220V
50HZ1×18W G 1/2 Φ8-Φ12mm IP65 WF2 FAY-2×18 1×36W FAY-1×36 2×18W FAY-2×36 2×36W FAY-2×28 T5 2×28W FAY-3×28 3×28W Rated Voltage Emergency Lighting Time Charging Time Emergency Start Time Emergency Power Normal Voltage
AC220VEmergency Voltage

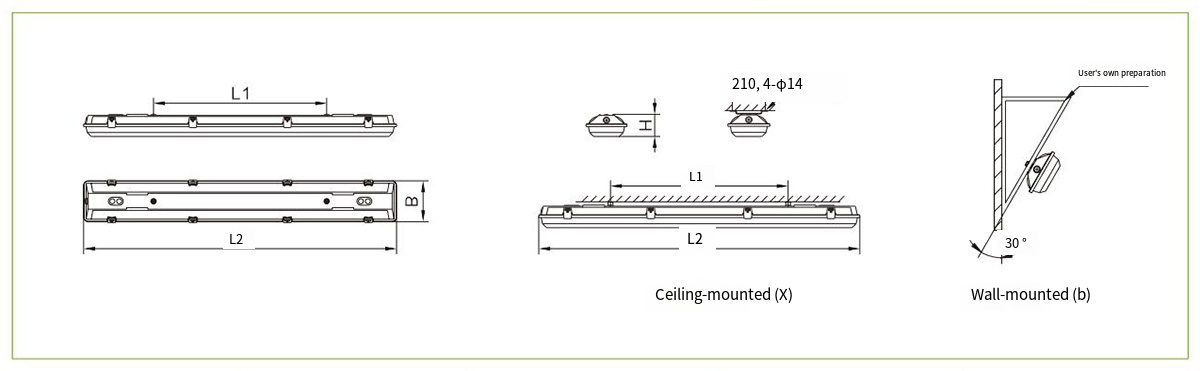

DC6V90min 24h 0.3S 1×18W 2×18W 3×18W Outline and Installation Diagram
Model Specification L1 L2 B H FAY-1×18 400 650 98 90 FAY-2×18 400 650 165 90 FAY-1×36 700 1265 98 90 FAY-2×36 700 1265 165 90 FAY-2×28 700 1265 165 90
