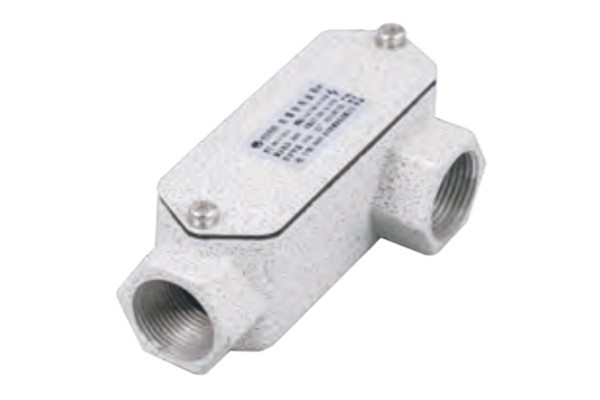

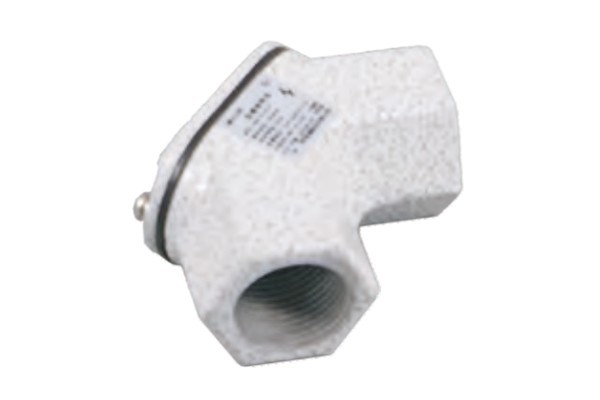

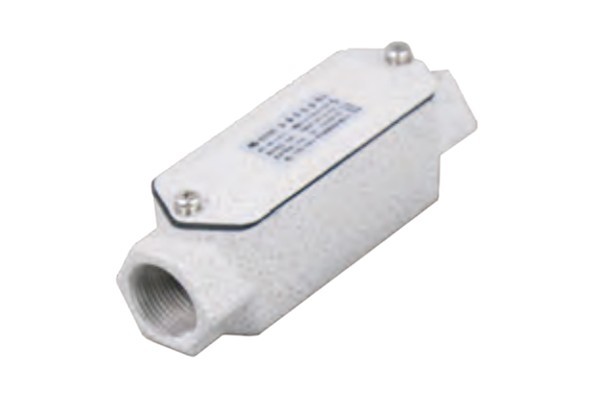

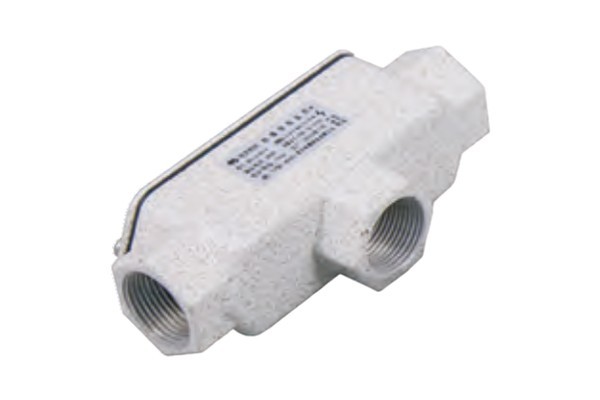

BHC Series Explosion-Proof Conduit Box
- Commodity name： BHC Series Explosion-Proof Conduit Box
- Description
-
Environmental Application
◆ Suitable for Zone 1 and Zone 2 locations with explosive gas atmospheres;
◆ Suitable for explosive gas atmospheres of IIA, IIB, and IIC types;
◆ Suitable for combustible dust environments in Zones 20, 21, and 22.
Product Features
◆ The enclosure is made of high-quality aluminum alloy die-cast, with a high-voltage electrostatic spray surface;
◆ Various structural forms, and the shape of the conduit box entry ports are hexagonal for easy installation;
◆ This product explosion-proof mark: Ex eb IIC Gb/Ex tb IIIC Db, protection level IP66;
◆ Standards: GB/T3836.1, GB/T3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN 60079-1, EN61241-0, EN61241-1.

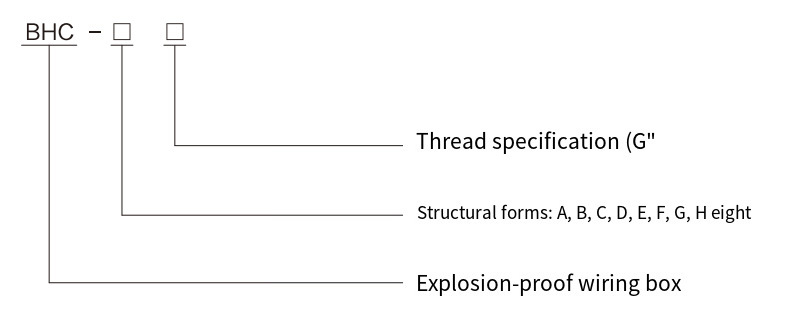

Model Meaning

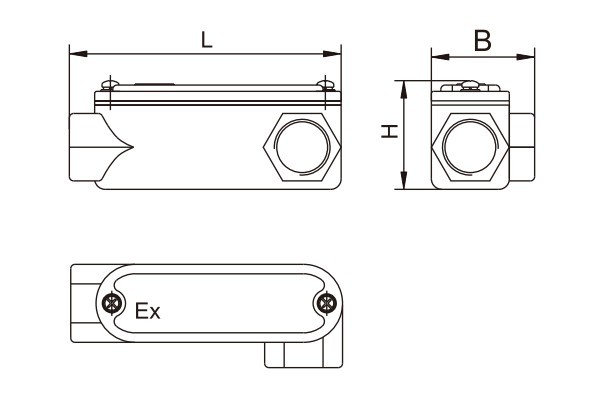

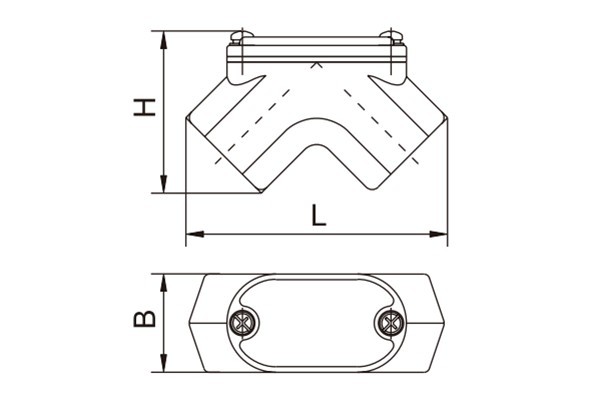

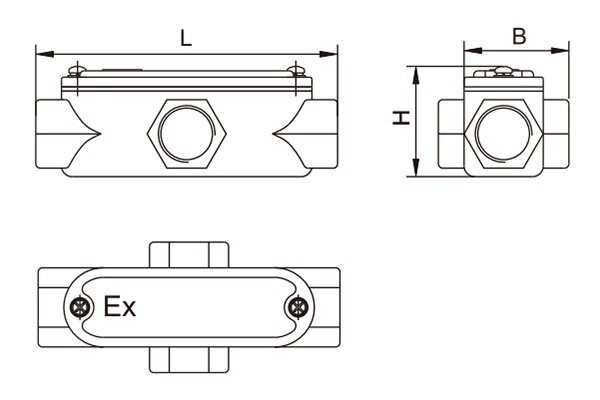

Appearance and Installation Diagram

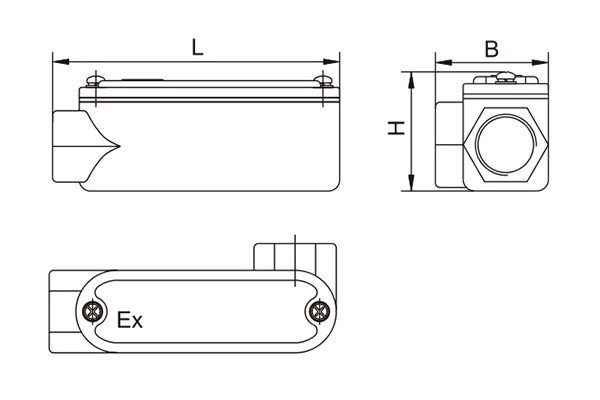

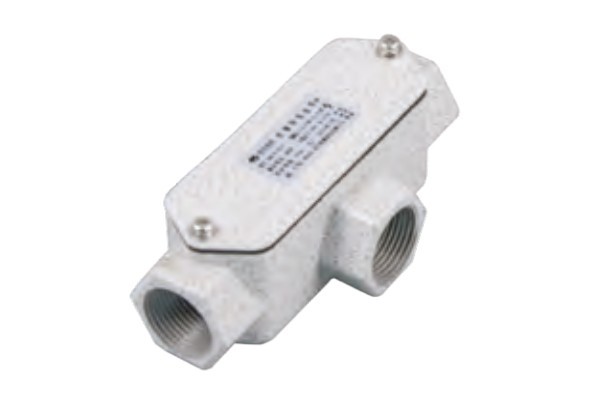

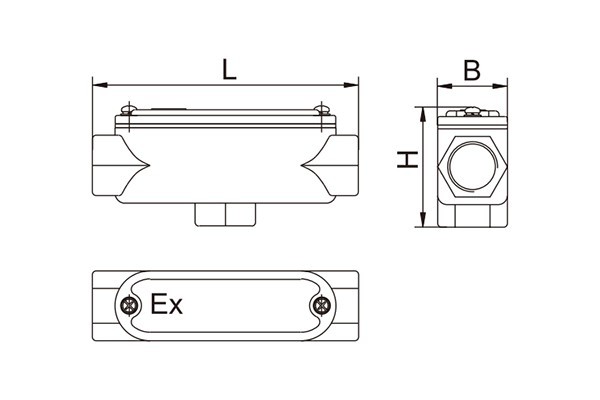

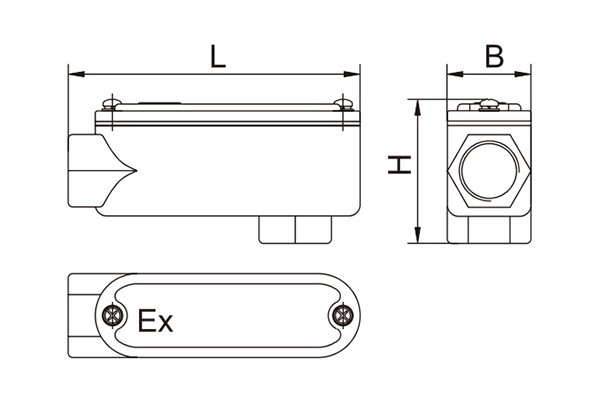

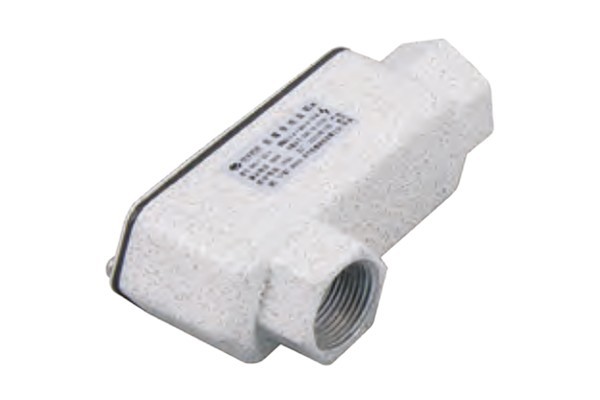

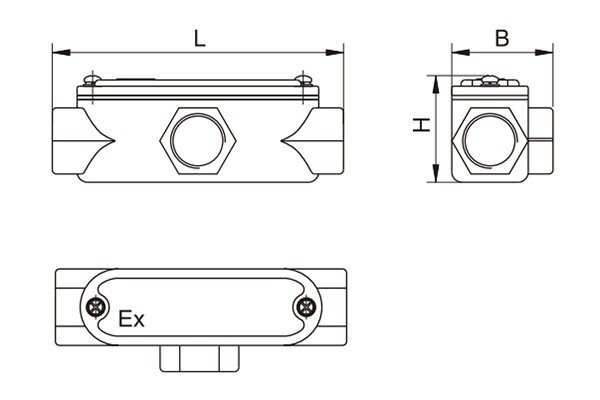

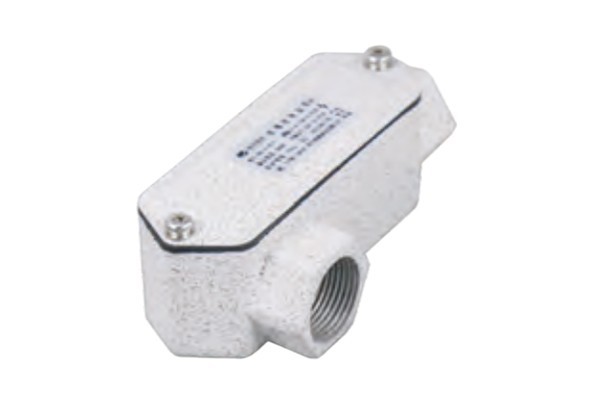

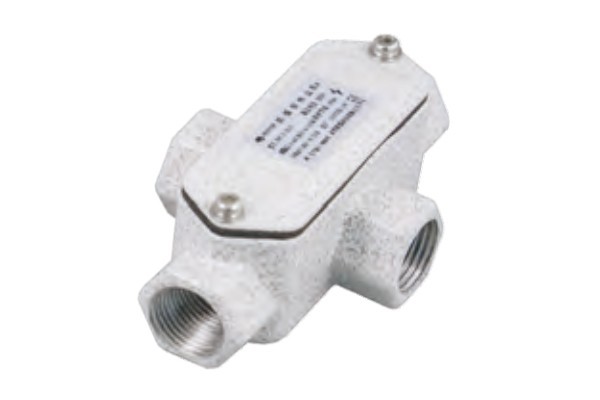

Type A
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-A1/2 15 1/2 121 33 42 BHC-A3/4 20 3/4 141 37 51 BHC-A1 25 1 157 45 58 BHC-A 1 1/4 32 1 1/4 183 53 69 BHC-A1 1/2 40 1 1/2 198 60 74 BHC-A2 50 2 225 73 85 BHC-A2 1/2 70 2 1/2 262 95 112 BHC-A3 80 3 248 104 126 BHC-A4 100 4 300 120 135 Type B
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-B1/2 15 1/2 121 33 42 BHC-B3/4 20 3/4 141 37 51 BHC-B1 25 1 157 45 58 BHC-B1 1/4 32 1 1/4 183 53 69 BHC-B1 1/2 40 1 1/2 198 60 74 BHC-B2 50 2 225 73 85 BHC-B2 1/2 70 2 1/2 262 95 112 BHC-B3 80 3 248 104 126 BHC-B4 100 4 300 120 135 Type C
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-C1/2 15 1/2 121 57 42 BHC-C3/4 20 3/4 141 61 51 BHC-C1 25 1 157 73 58 BHC-C1 1/4 32 1 1/4 183 89 69 BHC-C1 1/2 40 1 1/2 198 98 74 BHC-C2 50 2 225 115 85 BHC-C2 1/2 70 2 1/2 262 145 112 BHC-C3 80 3 248 152 126 BHC-C4 100 4 300 180 135 Type D
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-D1/2 15 1/2 109 45 42 BHC-D3/4 20 3/4 129 49 51 BHC-D1 25 1 143 59 58 BHC-D1 1/4 32 1 1/4 165 71 69 BHC-D1 1/2 40 1 1/2 179 79 74 BHC-D2 50 2 204 94 85 BHC-D2 1/2 70 2 1/2 237 120 112 BHC-D3 80 3 224 128 126 BHC-D4 100 4 275 145 135 Type E
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-E1/2 15 1/2 109 45 42 BHC-E3/4 20 3/4 129 49 51 BHC-E1 25 1 143 59 58 BHC-E1 1/4 32 1 1/4 165 71 69 BHC-E1 1/2 40 1 1/2 179 79 74 BHC-E2 50 2 204 94 85 BHC-E2 1/2 70 2 1/2 237 120 112 BHC-E3 80 3 224 128 126 BHC-E4 100 4 275 145 135 Type F
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-F1/2 15 1/2 109 33 54 BHC-F3/4 20 3/4 129 37 63 BHC-F1 25 1 143 45 72 BHC-F1 1/4 32 1 1/4 165 53 87 BHC-F1 1/2 40 1 1/2 179 60 93 BHC-F2 50 2 204 73 106 BHC-F2 1/2 70 2 1/2 237 95 137 BHC-F3 80 3 224 104 150 BHC-F4 100 4 275 120 160 Type G
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-G1/2 15 1/2 121 33 42 BHC-G3/4 20 3/4 141 37 63 BHC-G1 25 1 157 45 72 BHC-G1 1/4 32 1 1/4 183 53 87 BHC-G1 1/2 40 1 1/2 198 60 93 BHC-G2 50 2 225 73 106 BHC-G2 1/2 70 2 1/2 262 95 137 BHC-G3 80 3 248 104 150 BHC-G4 100 4 300 120 160 Type H
Model Pipe Inner Diameter (φ, mm) Conduit Thread L B H BHC-H1/2 15 1/2 121 33 52 BHC-H3/4 20 3/4 141 37 57 BHC-H1 25 1 157 45 65 BHC-H1 1/4 32 1 1/4 183 53 87 BHC-H1 1/2 40 1 1/2 198 60 92 BHC-H2 50 2 225 73 58 BHC-H2 1/2 70 2 1/2 262 95 123 BHC-H3 80 3 248 104 126 BHC-H4 100 4 300 120 142 Ordering Information
Specification Model Weight (kg)/piece Outer Box Size (mm) Packing Quantity (pieces) Gross Weight (kg)/box BHC-A-G1/2 0.124 600*300*275 Variable Variable BHC-B-G1/2 0.151 BHC-C-G1/2 0.162 BHC-D-G1/2 0.136 BHC-E-G1/2 0.143 BHC-F-G1/2 0.133 BHC-G-G1/2 0.145 BHC-H-G1/2 0.112 BHC-A-G3/4 0.189 BHC-B-G3/4 0.224 BHC-C-G3/4 0.221 BHC-D-G3/4 0.197 BHC-E-G3/4 0.203 BHC-F-G3/4 0.189 BHC-G-G3/4 0.220 BHC-H-G3/4 0.127 BHC-A-G1 0.268 BHC-B-G1 0.262 BHC-D-G1 0.271 BHC-E-G1 0.270 BHC-F-G1 0.249 BHC-H-G1 0.160 BHC-A-G11/4 0.427 BHC-B-G11/4 0.467 BHC-C-G11/4 0.453 BHC-D-G11/4 0.441 BHC-E-G11/4 0.430 BHC-F-G11/4 0.385 BHC-H-G11/4 0.222 BHC-A-G11/2 0.494 BHC-B-G11/2 0.499 BHC-C-G11/2 0.533 BHC-D-G11/2 0.491 BHC-E-G11/2 0.477 BHC-F-G11/2 0.482 BHC-H-G11/2 0.289 BHC-A-G2 0.723 BHC-B-G2 0.750 BHC-C-G2 0.773 BHC-D-G2 0.712 BHC-E-G2 0.747 BHC-F-G2 0.813 BHC-H-G2 0.531 ◆ When ordering, please specify the model specification, explosion-proof mark, appearance code, thread specification, quantity, etc.;
◆ If there are special requirements, please specify separately.
