BZC Series Explosion-Proof Sealed Junction Box

Category:

Explosion-proof Accessories

Commodity name： BZC Series Explosion-Proof Sealed Junction Box

Message

Description

Environmental Applications

◆ Suitable for Zone 1 and Zone 2 locations with explosive gas atmospheres;

◆ Suitable for explosive gas atmospheres of IIA, IIB, and IIC types;

◆ Suitable for combustible dust environments in Zones 20, 21, and 22;

◆ Widely used in hazardous locations such as petroleum, chemical industry, offshore platforms, military industry, and docks.

Product Features

◆ The shell is made of high-quality aluminum alloy die-cast, with high-pressure electrostatic spraying on the surface;

◆ Uses pipe thread connection:

◆ Explosion-proof performance, reliable protection performance;

◆ The explosion-proof mark of this product is Ex db IIC Gb/Ex eb IIC Gb/Ex tb IIIC Db, with a protection level of IP65;

◆ Standards implemented: GB/T3836.1, GB/T3836.2, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1.

Ordering Information

◆ Please specify model specifications, structural form, explosion-proof marks, thread specifications, and quantities in detail when ordering;

◆ If there are special requirements, please specify separately.

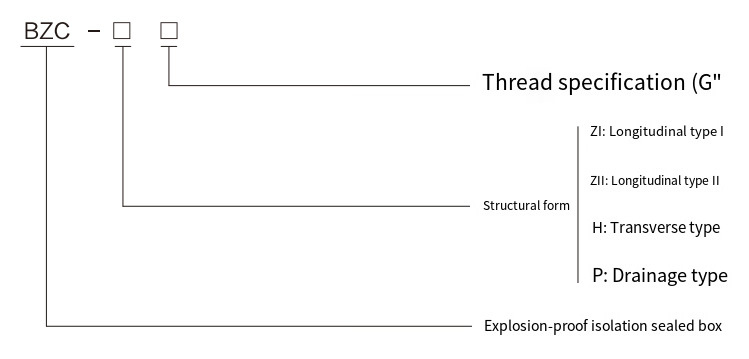

Model Meaning

Technical Parameters

Model/ Cable Entry Thread (G”)	BZC-ZI□		BZC-Z II□		BZC-P□		BZC-H□		Cable Outer Diameter (φ, mm)
Model/ Cable Entry Thread (G”)	A	B	A	B	A	B	A	B	Cable Outer Diameter (φ, mm)
1/2	100	73	100	60	130	68	100	95	6.5~11
3/4	115	75	115	66	130	70	105	99	10~14
1	125	85	125	76	150	88	110	107	12~19
11/4	145	105	145	92	160	92	125	132	15~23
11/2	150	120	150	108	185	106	130	140	17~26
2	180	145	180	124	195	114	180	156	25~35
21/2	210	173	210	153	205	123	195	180	29~38
3	215	182	215	174	215	128	215	214	33~51

Outline and Installation Diagram
