BHJ Series Explosion-Proof Union Joint
+
  • BHJ Series Explosion-Proof Union Joint

BHJ Series Explosion-Proof Union Joint

Category:

Explosion-proof Accessories

  • Commodity name： BHJ Series Explosion-Proof Union Joint
Message
Related
  • Description

  • Environmental Application

    ◆ Suitable for Zone 1 and Zone 2 locations with explosive gas atmospheres;

    ◆ Suitable for explosive gas atmospheres of IIA, IIB, IIC types;

    ◆ Suitable for combustible dust environments in Zones 20, 21, and 22.

    Product Features

    ◆ Made of high-quality carbon steel with galvanized surface or stainless steel;

    ◆ Thread specifications can be customized, such as NPT threads, metric threads. Note: When specifying thread specifications, indicate internal or external threads; for example, BHJ-G3/4(internal)/G1(external) means one end has internal thread G3/4, the other end has external thread G1;

    ◆ Standards: GB/T 3836.1, GB/T3836.2, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN 60079-1, EN 61241-0, EN61241-1.

    Ordering Information

    ◆ Please specify model specifications, structural form, explosion-proof marks, thread specifications, and quantities in detail when ordering;

    ◆ If there are special requirements, please specify separately.

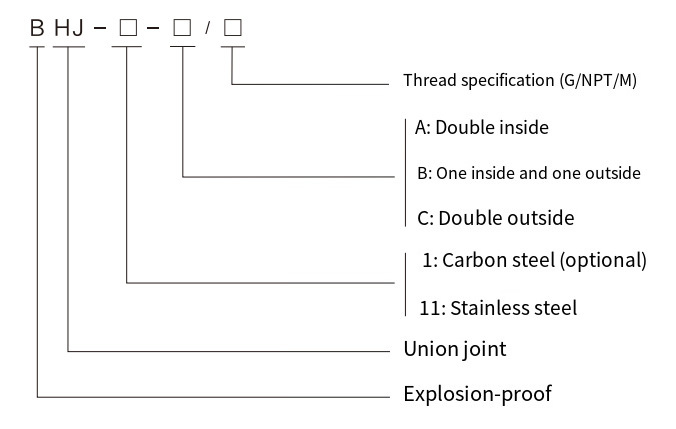

    Model Meaning

    Technical Parameters

    ModelAL1L2L3Cable Outer DiameterExplosion-proof MarkProtection LevelCorrosion Resistance Level
    BHJ □- G1/238405564Φ6.5-11mmEx db IIC Gb;
    Ex eb IIC Gb;
    Ex tb IlIC Db    		IP66WF1
    BHJ □ - G3/446405564Φ10-14mm
    BHJ □-G150466474Φ12-19mm
    BHJ □- G1 1/465466474Φ15-25mm
    BHJ □-G1 1/275466474Φ18-33mm
    BHJ □-G285527384Φ26-43mm
    BHJ □- G2 1/2110527384Φ30-50mm
    BHJ □- G3115578194Φ38-57mm
    BHJ □- G4145578194Φ48-80mm

    Outline and Installation Diagram
