NGd Series Explosion-Proof Flexible Conduit
- Commodity name： NGd Series Explosion-Proof Flexible Conduit
- Description
-
Environmental Application
◆ Suitable for Zone 1 and Zone 2 locations with explosive gas atmospheres;
◆ Suitable for explosive gas atmospheres of IIA, IIB, and IIC types;
◆ Suitable for combustible dust environments in Zones 20, 21, and 22.
Product Features
◆ Features flame resistance, corrosion resistance, water resistance, aging resistance, good flexibility, sturdy structure, and reliable operation;
◆ Flexible conduit length and thread size can be specially processed according to user requirements, such as NPT threads, metric threads, etc.;
Note: When specifying thread specifications, please indicate internal or external threads, for example: NGd-700xG3/4"(internal)/G1"(external) means a rubber-sleeved flexible connection pipe with a length of 700, one end with internal thread G3/4", and the other end with external thread G1";
◆ Standards: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN 60079-1, EN61241-0, EN 61241-1.
Ordering Information
◆ Please specify model specifications, structural form, explosion-proof marks, thread specifications, and quantities in detail when ordering;
◆ Please specify separately if there are special requirements.

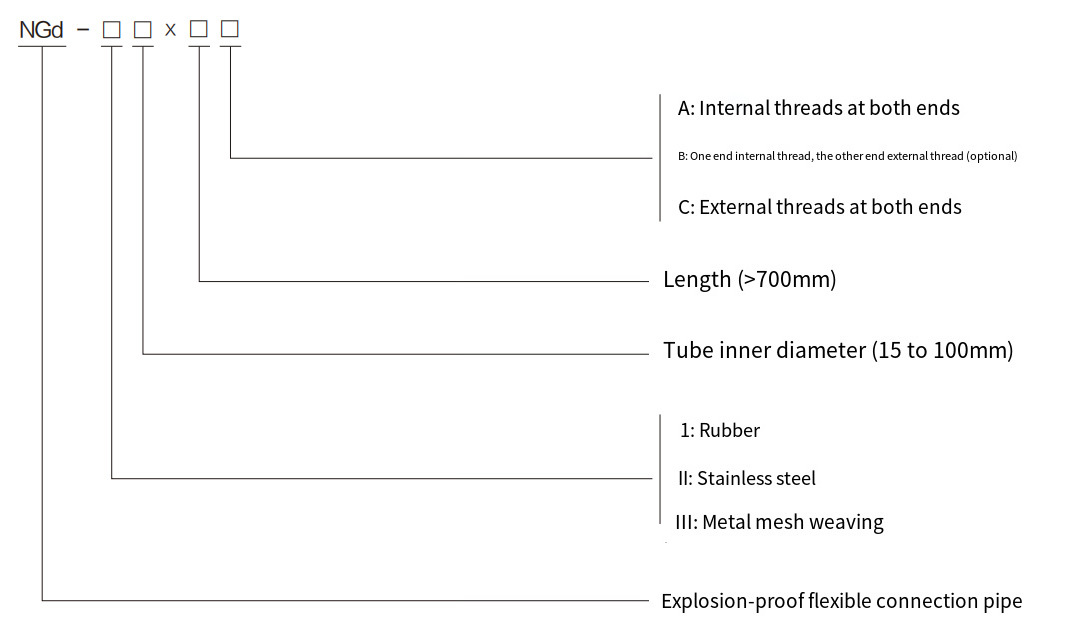

Model Meaning
Technical Parameters
Model Specifications Pipe Diameter Thread (G") Thread (N") Thread (M") Length Connector Pipe Thread (G") Explosion-proof Mark NGd □-700×G1/2 15 G1/2 NPT1/2 M20*1.5 700 80 Ex db IIC Gb;
Ex eb IIC Gb;
Ex tb IIIC DbNGd □-1000×G1/2 15 G1/2 NPT1/2 M20*1.5 1000 80 NGd □-700×G3/4 20 G3/4 NPT3/4 M25*1.5 700 110 NGd □-1000×G3/4 20 G3/4 NPT3/4 M25*1.5 1000 110 NGd □-700×G1 25 G1 NPT1 M32*1.5 700 145 NGd □-1000×G1 25 G1 NPT1 M32*1.5 1000 145 NGd □-700×G1 1/4 32 G1 1/4 NPT1 1/4 M40*1.5 700 180 NGd □-1000×G1 1/4 32 G1 1/4 NPT1 1/4 M40*1.5 1000 180 NGd □-700×G1 1/2 40 G1 1/2 NPT1 1/2 M50*1.5 700 210 NGd □-1000×G1 1/2 40 G1 1/2 NPT1 1/2 M50*1.5 1000 210 NGd □-700×G2 50 G2 NPT2 M63*1.5 700 250 NGd □-1000×G2 50 G2 NPT2 M63*1.5 1000 250 NGd □-700×G2 1/2 70 G2 1/2 NPT2 1/2 M75*1.5 700 350 NGd □-1000×G2 1/2 70 G2 1/2 NPT2 1/2 M75*1.5 1000 350 NGd □-700×G3 80 G3 NPT3 M90*1.5 700 400 NGd □-1000×G3 80 G3 NPT3 M90*1.5 1000 400 NGd □-700×G4 100 G4 NPT4 M110*1.5 700 500 NGd □-1000×G4 100 G4 NPT4 M110*1.5 1000 500
