BDM Series Explosion-Proof Cable Clamping Sealing Joint
+
  • BDM Series Explosion-Proof Cable Clamping Sealing Joint

BDM Series Explosion-Proof Cable Clamping Sealing Joint

Category:

Explosion-proof Accessories

  • Commodity name： BDM Series Explosion-Proof Cable Clamping Sealing Joint
Message
Related
  • Description

  • Environmental Application

    ◆ Suitable for Zone 1 and Zone 2 locations with explosive gas atmospheres;

    ◆ Suitable for explosive gas atmospheres of IIA, IIB, and IIC types;

    ◆ Suitable for combustible dust environments in Zones 20, 21, and 22.

    Product Features

    ◆ Zone 1 and Zone 2 I1 A~ⅡC explosive gas atmospheres, and/or explosive dust locations in Zones 20, 21, and 22;

    ◆ Indoor and outdoor (IP65, IP66);

    ◆ Used in hazardous locations such as chemical, refining, petroleum extraction, offshore oil platforms, oil tankers, pharmaceuticals, military industry, for cable clamping and sealing;

    ◆ Standards: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN60079-1, EN 61241-0, EN 61241-1.

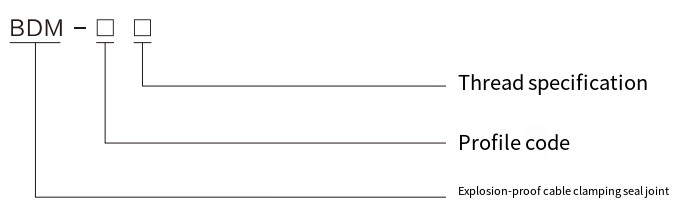

    Model Meaning

    Ordering Information

    ◆ Please specify model specifications, structural form, explosion-proof marks, thread specifications, and quantities in detail when ordering;

    ◆ If there are special requirements, please specify separately.

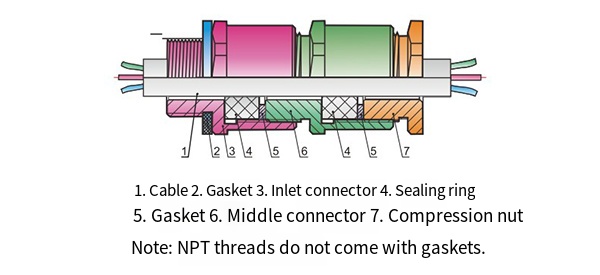

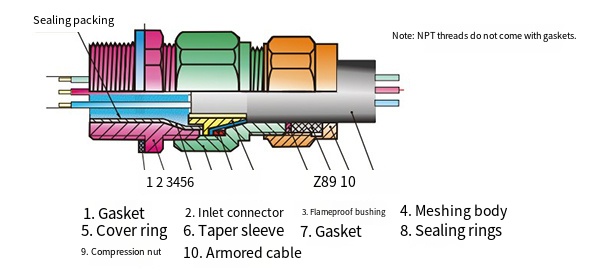

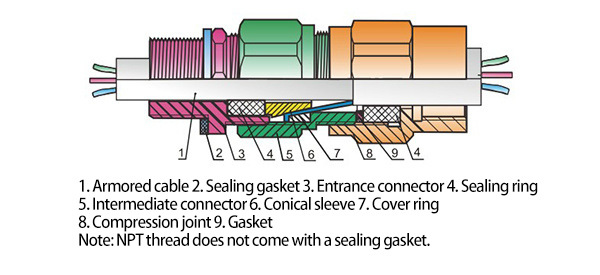

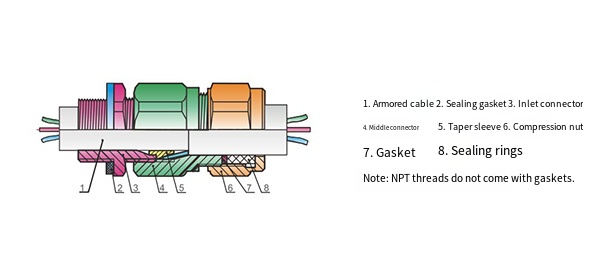

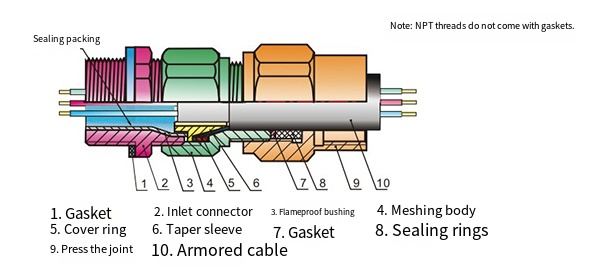

    Outline and Installation Diagram

    ◆ Type 1: Made of engineering plastic with strong corrosion resistance and waterproof performance, suitable for non-armored cables.

    Type 1



    Thread SpecificationCable Outer Diameter (Φmm)Protection Level
    Thread 1Thread 2Thread 3
    G1/2NPT1/2M20*1.57-13IP66
    G3/4NPT3/4M25*1.510.5-17
    G1NPT1M32*1.513-20.5
    G1 1/4NPT1 1/4M40*1.517-28
    G1 1/2NPT1 1/2M50*1.524-35
    G2NPT2M63*1.534-48

    ◆ Type 2: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for non-armored cables.

    Type 2



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3
    G1/2NPT1/2M20*1.56-12Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    EX eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.510-16
    G1NPT1M32*1.515-22
    G1 1/4NPT1 1/4M40*1.522-29
    G1 1/2NPT1 1/2M50*1.526-34
    G2NPT 2M63*1.537-44
    G2 1/2NPT2 1/2M75*1.544-52
    G3NPT3M90*1.554-62
    G4NPT4M110*1.580-88

    ◆ Type 3: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for armored cables.

    Type 3



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3Outlet Diameter (Φmm)Inlet Diameter (Φmm)
    G1/2NPT1/2M20*1.5≤128-15Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.5≤1711-20
    G1NPT1M32*1.5≤2214-27
    G1 1/4NPT1 1/4M40*1.5≤2819-33
    G1 1/2NPT1 1/2M50*1.5≤3322-40
    G2NPT2M63*1.5≤4329-50
    G2 1/2NPT2 1/2M75*1.5≤5735-63
    G3NPT3M90*1.5≤7241-77
    G4NPT4M110*1.5≤9461-104

    ◆ Type 4: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for non-armored cables.

    Type 4



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3
    G1/2NPT1/2M20*1.56-12Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.510-15
    G1NPT1M32*1.512-17-22
    G1 1/4NPT1 1/4M40*1.515-19-24
    G1 1/2NPT1 1/2M50*1.518-23-29
    G2NPT2M63*1.520-27-33
    G2 1/2NPT2 1/2M75*1.523-29-35-41-48
    G3NPT3M90*1.542-50-58
    G4NPT4M110*1.553-62-70-78-85

    ◆Type 5: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for non-armored cables.

    Type 5



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3
    G1/2NPT1/2M20*1.510-15Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.511-20
    G1NPT1M32*1.519-27
    G1 1/4NPT1 1/4M40*1.524-32
    G1 1/2NPT1 1/2M50*1.524-36
    G2NPT2M63*1.529-46
    G2 1/2NPT2 1/2M75*1.536-57
    G3NPT3M90*1.546-75
    G4NPT4M110*1.562-96

    ◆Type 6: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for non-armored cables.

    Type 6



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3
    G1/2NPT1/2M20*1.58-12Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.510-16
    G1NPT1M32*1.513-20
    G1 1/4NPT1 1/4M40*1.516-25
    G1 1/2NPT1 1/2M50*1.520-32
    G2NPT2M63*1.526-40
    G2 1/2NPT2 1/2M75*1.532-45
    G3NPT3M90*1.532-60
    G4NPT4M110*1.550-78

    ◆Type 7: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for armored cables.

    Type 7



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3Outlet Diameter (Φmm)Inlet Diameter (Φmm)
    G1/2NPT1/2M20*1.58-12.5/4-8 (M thread)7.5-10.5-15/4-10 (M thread)Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.510-1510-13-16-20
    G1NPT1M32*1.512-16-2013.5-17.5-21-25
    G1 1/4NPT1 1/4M40*1.516-22-2719-24-27-32
    G1 1/2NPT1 1/2M50*1.522-27-3321-27-33-38
    G2NPT2M63*1.528-34-4027-34-40-46
    G2 1/2NPT2 1/2M75*1.531-36-41-46-5136-42-46-52-68
    G3NPT3M90*1.522-32-39-46-5345-51-57-63-68-73
    G4NPT4M110*1.554-59-67-73-8060-67-74-80-87-95

    ◆Type 8: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for armored cables.

    Type 8



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3Outlet Diameter (Φmm)Inlet Diameter (Φmm)
    G1/2NPT1/2M20*1.58-12.5/4-8 (M thread)7.5-10.5-15/4-10 (M thread)Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.510-1510-13-16-20
    G1NPT1M32*1.512-16-2013.5-17.5-21-25
    G1 1/4NPT1 1/4M40*1.516-22-2719-24-27-32
    G1 1/2NPT1 1/2M50*1.522-27-3321-27-33-38
    G2NPT2M63*1.528-34-4027-34-40-46
    G2 1/2NPT2 1/2M75*1.531-36-41-46-5136-42-46-52-68
    G3NPT3M90*1.522-32-39-46-5345-51-57-63-68-73
    G4NPT4M110*1.554-59-67-73-8060-67-74-80-87-95

    ◆Type 9: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for armored cables.

    Type 9



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3Outlet Diameter (Φmm)Inlet Diameter (Φmm)
    G1/2NPT1/2M20*1.5≤117-14Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.5≤1610-18
    G1NPT1M32*1.5≤1913-23
    G1 1/4NPT1 1/4M40*1.5≤2518-30
    G1 1/2NPT1 1/2M50*1.5≤3322-38
    G2NPT2M63*1.5≤4429-46
    G2 1/2NPT2 1/2M75*1.5≤5536-57
    G3NPT3M90*1.5≤6846-75
    G4NPT4M110*1.5≤9362-103

    ◆Type 10: Made of high-quality carbon steel (surface galvanized), brass (surface nickel-plated), or stainless steel, suitable for armored cables.

    Type 10



    Thread SpecificationCable Outer Diameter (Φmm)Explosion-proof MarkProtection Level
    Thread 1Thread 2Thread 3Outlet Diameter (Φmm)Inlet Diameter (Φmm)
    G1/2NPT1/2M20*1.5≤117-14Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (M Thread)
    Ex db IIC Gb;
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (NPT Thread)
    Ex eb IIC Gb;
    Ex ta IIIC Da
    (G Thread)    		IP66
    G3/4NPT3/4M25*1.5≤1610-18
    G1NPT1M32*1.5≤1913-23
    G1 1/4NPT1 1/4M40*1.5≤2518-30
    G1 1/2NPT1 1/2M50*1.5≤3322-38
    G2NPT2M63*1.5≤4429-46
    G2 1/2NPT2 1/2M75*1.5≤5536-57
    G3NPT3M90*1.5≤6846-75
    G4NPT4M110*1.5≤9362-103
