BGJ Series Explosion-Proof Pipe Fittings
- Commodity name： BGJ Series Explosion-Proof Pipe Fittings
- Description
-
Environmental Application
◆ Suitable for Zone 1 and Zone 2 explosive gas atmospheres;
◆ Suitable for explosive gas atmospheres of IIA, IIB, IIC types;
◆ Widely used in hazardous locations such as petroleum, chemical industry, offshore platforms, military industry, docks, etc.;
◆ Suitable for combustible dust environments in Zone 20, Zone 21, and Zone 22 locations.
Product Features
◆ Made of high-quality carbon steel:
◆ Thread specifications can be customized according to user requirements;
◆ Product explosion-proof marks are Ex db IIC Gb/Ex eb IIC Gb/Ex tb IIIC Db;
◆ Standards implemented: GB/T3836.1, GB/T3836.2, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN 60079-1, EN61241-0, EN 61241-1.

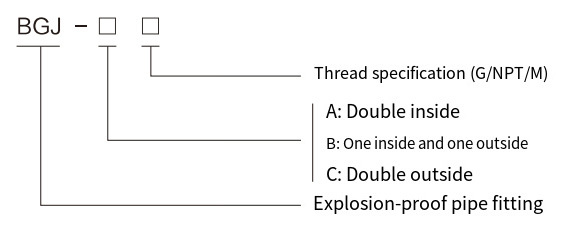

Model Meaning
Ordering Information
◆ Please specify model specifications, structural form, explosion-proof marks, thread specifications, and quantities in detail when ordering;
◆ Please specify separately if there are special requirements;
◆ Specify when ordering if reducer joints are needed.
Outline and Installation Diagram
BGJ-A
A B C L Flameproof Thread (G") 30 27 25 40 1/2" 36 32 31 40 3/4" 42 38 37 48 1" 52 47 46 48 1 1/4" 60 55 54 48 1 1/2" 70 66 65 54 2" 88 83 82 54 2 1/2" 100 95 94 60 3" 127 122 121 60 4" BGJ-B
A B C D L Flameproof Thread (G") 30 27 25 13 40 1/2" 36 32 31 18 40 3/4" 42 38 37 25 48 1" 52 47 46 32 48 1 1/4" 60 55 54 38 48 1 1/2" 70 66 65 50 54 2" 88 83 82 65 54 2 1/2" 100 95 94 75 60 3" 127 122 121 100 60 4" BGJ-C
A B D L Flameproof Thread (G") 25 22 13 40 1/2" 30 27 18 40 3/4" 40 35 25 48 1" 50 45 32 48 1 1/4" 58 52 38 48 1 1/2" 67 62 50 54 2" 85 80 65 54 2 1/2" 98 93 75 60 3" 125 120 100 60 4"
