BED198 Series LED Explosion-Proof Light
- Commodity name： BED198 Series LED Explosion-Proof Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying;
◆ Exposed fasteners made of stainless steel, with high corrosion resistance;
◆ Housing joint surface uses threaded and straight-mouth explosion-proof design, reliable explosion-proof performance;
◆ The entire lamp light source uses high-quality large-size high-brightness chips and advanced packaging technology, luminous efficacy above 100LMW, durability over 20,000 hours, annual light decay not exceeding 10%, color rendering index >80Ra, truly achieving high luminous efficiency and high color rendering;
◆ Uses high-quality high-transmittance tempered glass, resistant to high temperature, aging, and 4J impact;
◆ Uses specially designed power supply to meet the floating requirements of mains electricity, surge resistance up to over 4000V;
◆ Uses large-angle optical refraction luminous design;
◆ Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN60079-0, EN60079-1, EN61241-0, EN61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms for general or operational lighting;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for explosive gas environments in zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, IIC classes;
◆ Suitable for combustible dust environments in zones 21 and 22;
◆ Suitable for temperature classes T1-T6;
◆ Suitable for ambient temperatures from -40℃ to +50℃.

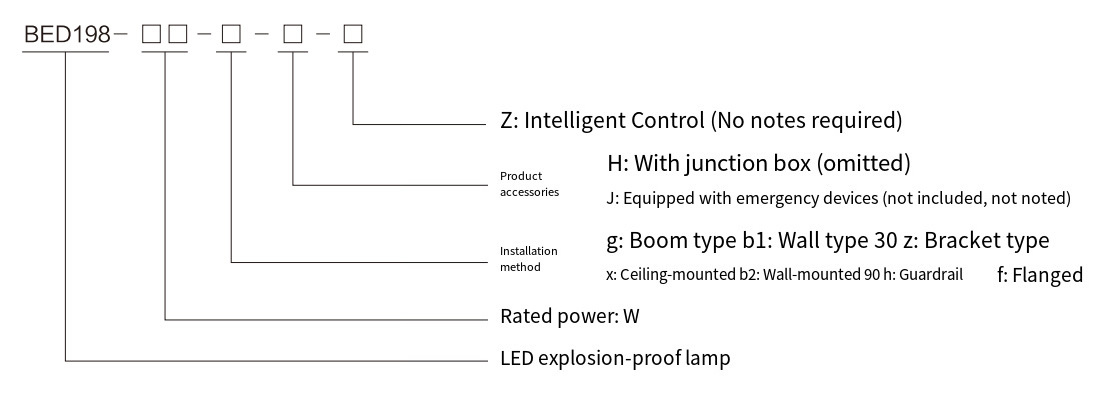

Model Meaning
Product Details
High-efficiency heat dissipation design to extend the lifespan of the lamp beads
Snap-in plug-in wiring design to improve electrical connection reliability
Transparent cover uses secondary optical refraction to make light more uniform and soft
High luminous efficiency LED lamp beads, high color rendering index, reasonable parameter matching, effectively improving the light source lifespan Ordering Instructions
Specifications and Models Weight (kg)/piece Outer Box Dimensions (mm) Packaging Quantity (pieces) Gross Weight (kg)/box BED198-30W 1.42 575*385*345 12 21 BED198-60W 1.63 ◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, and explosion-proof marks; for example: BED198 50W explosion-proof lamp with junction box and pendant installation, the product model is: BED198 50gHZ;
◆ The product is shipped with the corresponding wattage light source installed;
◆ If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.
Product Description
Type I
Type II
Standards implemented: GB/T 38361, GB/T3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC61241-0, IEC61241-1, EN 60079-0, EN 60079-1, EN61241-0, EN 61241-1
Explosion-proof mark: Exdb IIC T6 Gb/Ex tb IIC T80℃ Db
Rated voltage: AC220V 50Hz (please specify if special requirements)
Protection level: IP66
Corrosion resistance level: WF1/WF2*
Entry device: G3/4, M25, NPT3/4 entry specifications, suitable for Φ10-Φ15mm cables
Applicable wire diameter for terminals: ≤2.5mm² reliable connection
Installation methods: ceiling-mounted (x), pendant (g), wall-mounted 30° (b1), wall-mounted 90° (b2), flange (f), guardrail (h), bracket (z)

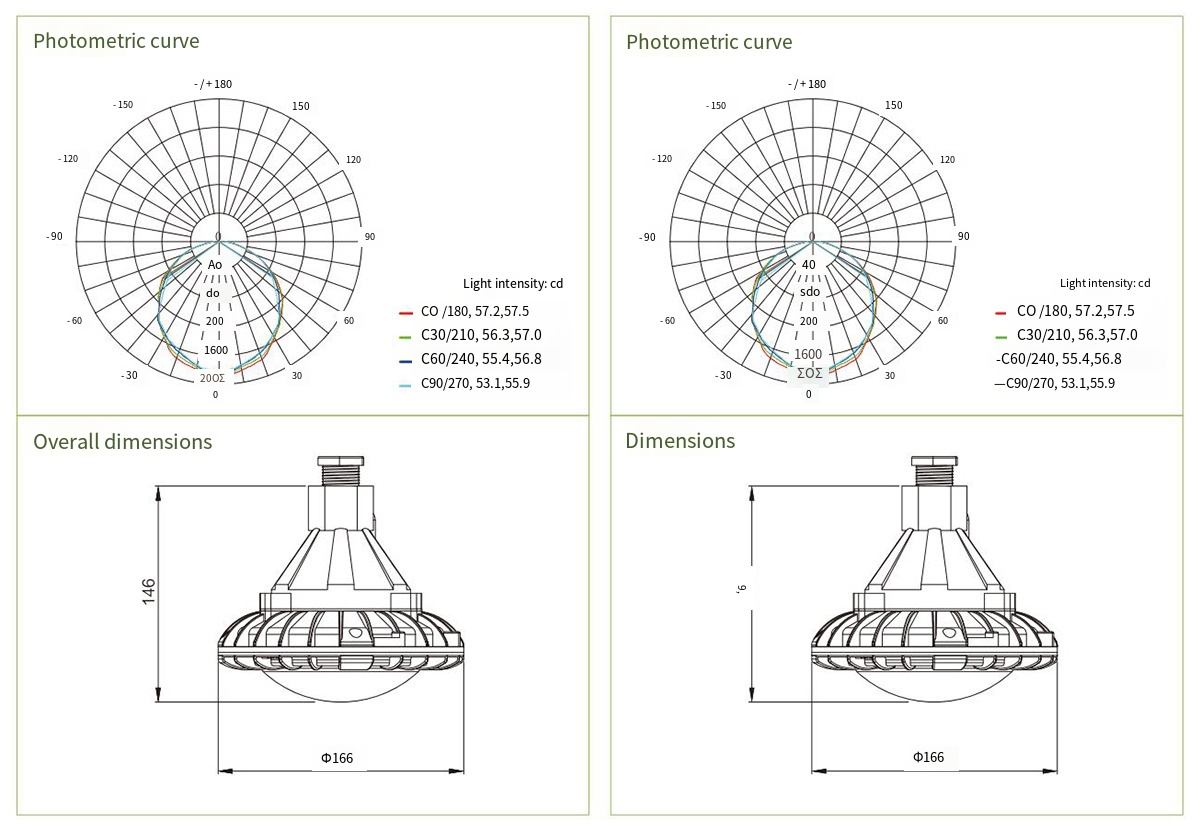

Light source power: 30W, 40W Light source power: 50W, 60W Lamp weight: 3.8kg Lamp weight: 5.7kg Appearance and Installation Diagram

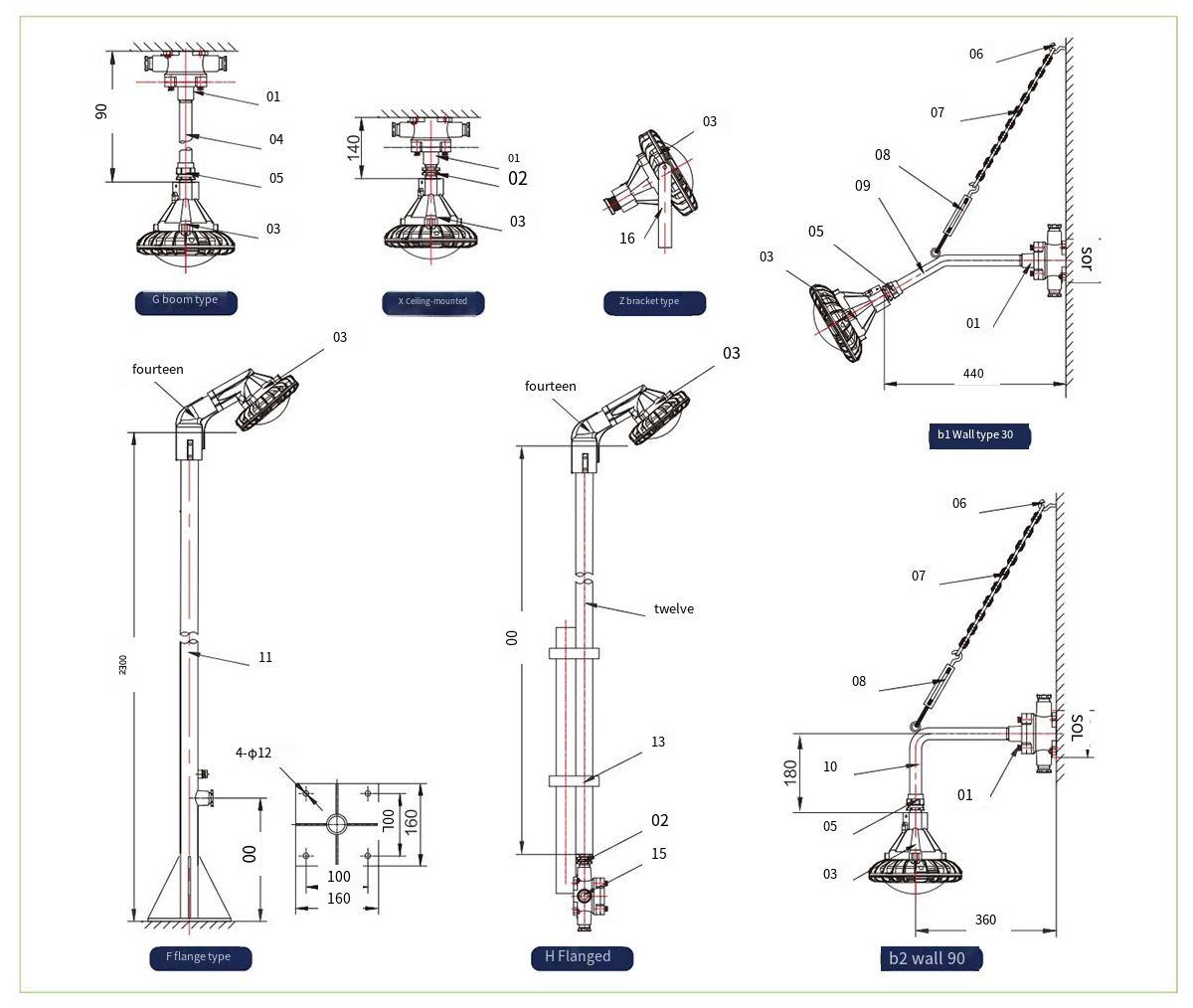

Installation Accessories Table Serial Number Name Remarks Serial Number Name Remarks 01 AH - Explosion-proof Junction Box (IIC) G3/4 Pendant Lamp Box 09 G3/4 Elbow Pipe (30°) 400mm 02 BHJ-G3/4 Explosion-proof Union Joint Double External 10 G3/4 Elbow Pipe (90°) 300mm 03 LED Explosion-proof Lamp 11 G1 1/4 Bent Rod Flange Type 04 G3/4 Straight Pipe 30mm 12 G1 1/4 Bent Rod Guardrail Type 05 BHJ-G3/4 Explosion-proof Union Joint One Internal One External 13 U-shaped Pipe Clamp User Supplied 06 Expansion Bolt 14 Elbow Adapter 07 Chain 15 AH - Explosion-proof Junction Box (IIC) G3/4 Tee 08 CC Type Spiral Cable Clamp 16 Bracket Optional Installation Accessories List Installation Method Supplied Accessories Ceiling Suction Type (X) Numbers 1, 2 in the Outline and Installation Example Chart Suspension Rod Type (G) Numbers 1, 4, 5 in the Outline and Installation Example Chart Wall-mounted 30 (B1) Numbers 1, 5, 6, 7, 8, 9 in the Outline and Installation Example Chart Wall-mounted 90 (B2) Numbers 1, 5, 6, 7, 8, 9, 10 in the Outline and Installation Example Chart Flange Type (F) Numbers 11, 14 in the Outline and Installation Example Chart Guardrail Type (h) Numbers 2, 12, 13, 14, 15 in the Outline and Installation Example Chart Bracket Type (z) Number 16 in the Outline and Installation Example Chart
