BED368 Series LED Explosion-proof Light
- Commodity name： BED368 Series LED Explosion-proof Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying;
◆ Unique three-sided wide-angle optical design, uniform light emission on each side;
◆ Exposed fasteners made of stainless steel, high corrosion resistance;
◆ Housing joint uses threaded and straight-mouth explosion-proof design, reliable explosion-proof performance;
◆ The entire lamp source uses high-quality large-size high-brightness chips and advanced packaging technology, luminous efficiency above 100LM/W, durability over 20,000 hours, light decay not exceeding 10% in three years, color rendering index >80Ra, truly achieving high luminous efficiency and high color rendering;
◆ Uses high-quality high-transmittance tempered glass, resistant to high temperature, aging, and 4J impact;
◆ Uses specially made power supply to meet the floating requirements of mains electricity, surge resistance up to over 4000V;
◆ Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1, EN60079-0, EN60079-1, EN61241-0, EN61241-1.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms for general or operational lighting;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for explosive gas environments in zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, IIC classes;
◆ Suitable for combustible dust environments in zones 21 and 22;
◆ Suitable for temperature classes T1-T6;
◆ Suitable for ambient temperatures from -40℃ to +50℃.

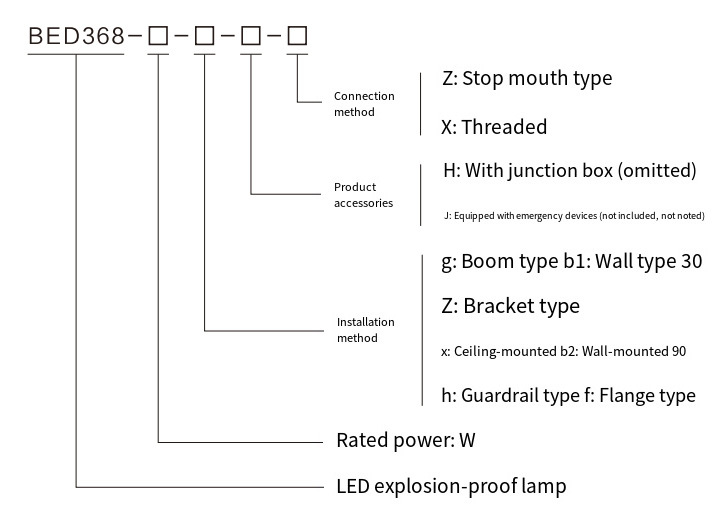

Model Meaning

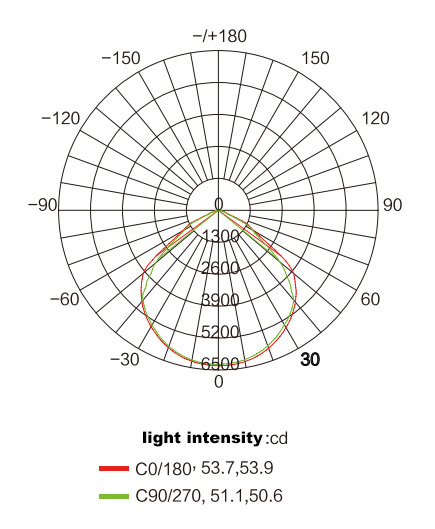

Light Distribution Curve
Technical Parameters
Model Specifications Rated Voltage Rated Power Explosion-proof Mark Entry Specification Applicable Cable Outer Diameter Protection Level BED368-30 AC220V
50Hz
(Please specify if special requirements)
30W Ex db IIC
T6 Gb;
Ex tb IIC
T80℃ DbG1/2
M20
NPT1/2
G3/4
M25
NPT3/4Φ8~Φ12mm
Φ10~Φ15mmIP66
WF1
WF2*BED368-40 40W BED368-50 50W BED368-60 60W BED358-120 120W BED358-180 180W ★ Orders with * must be specified.

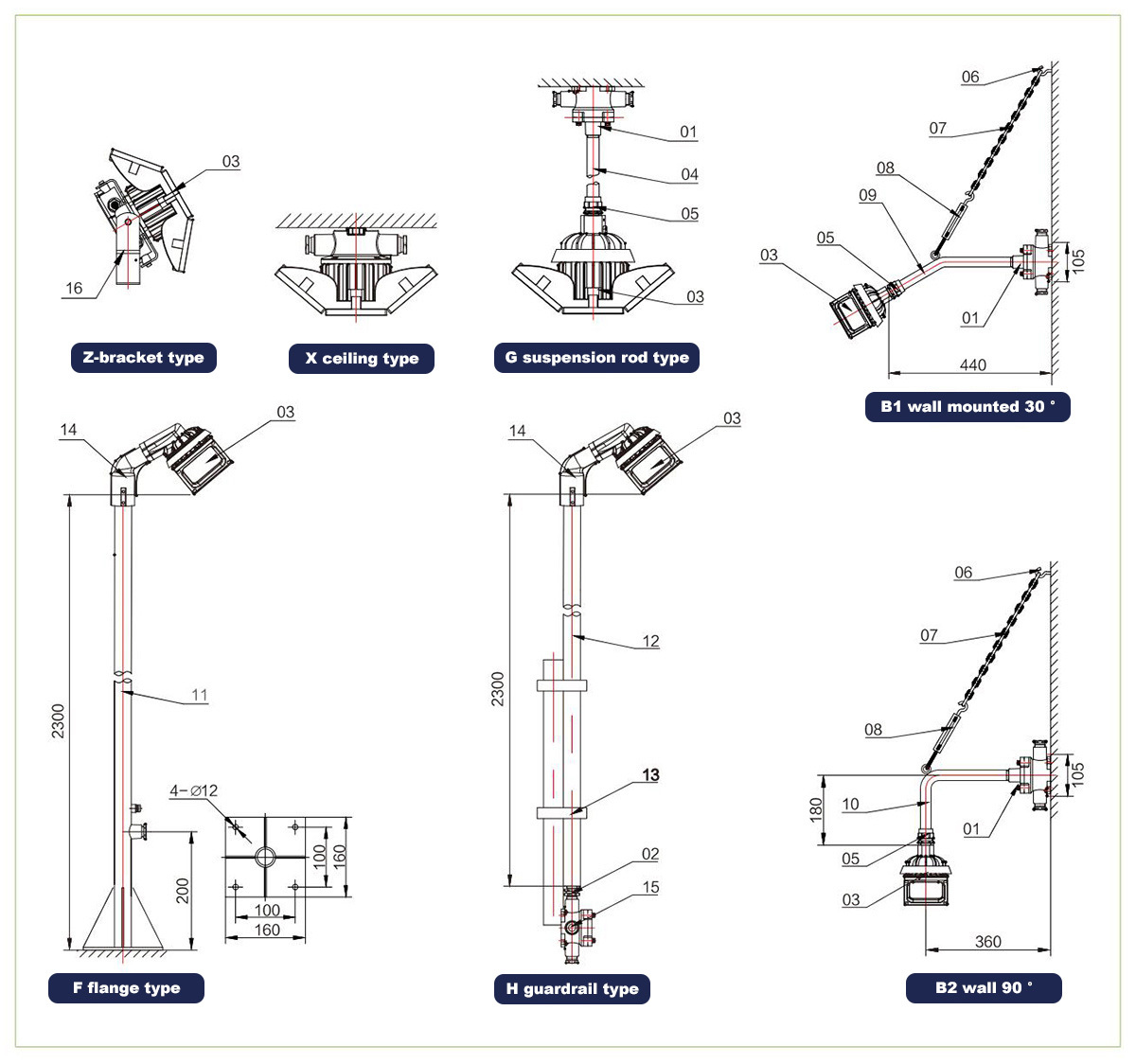

Assembly Diagram

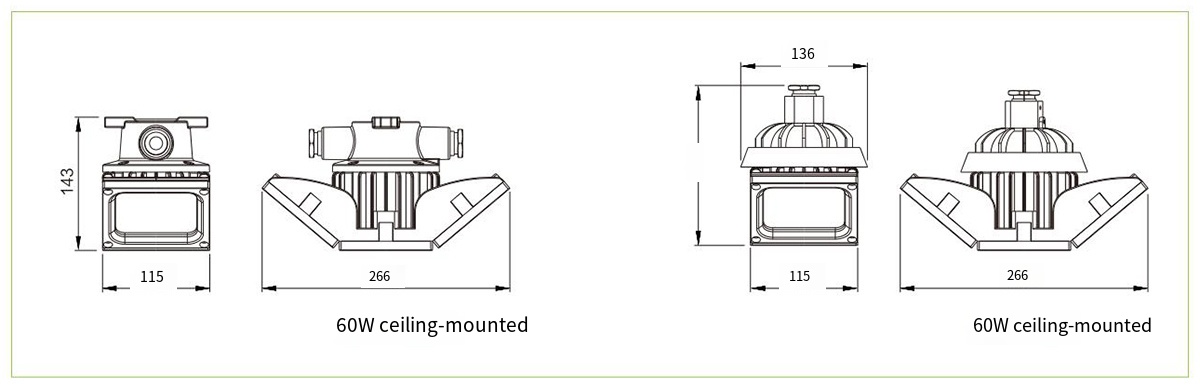

Product Outline Diagram
Installation Accessories Table Serial Number Name Remarks Serial Number Name Remarks 01 AH - Explosion-proof Junction Box (IIC) G3/4 Pendant Box 09 G3/4 Elbow Pipe (30°) 400mm 02 BHJ-G3/4 Explosion-proof Union Joint Double External 10 G3/4 Elbow Pipe (90°) 300mm 03 LED Explosion-proof Lamp 11 G1 1/4 Bent Rod Flange Type 04 G3/4 Straight Pipe 30mm 12 G1 1/4 Bent Rod Guardrail Type 05 BHJ-G3/4 Explosion-proof Union Joint One Internal One External 13 U-shaped Pipe Clamp User Supplied 06 Expansion Screw 14 Elbow Adapter 07 Chain 15 AH - Explosion-proof Junction Box (IIC) G3/4 Tee 08 CC Type Spiral Cable Clamp 16 Bracket Optional Installation Accessories Table Installation Method Supplied Accessories Ceiling Mounted (X) Serial numbers 1, 2 in the outline and installation example diagram Pendant Mounted (G) Serial numbers 1, 4, 5 in the outline and installation example diagram Wall Mounted 30° (B1) Serial numbers 1, 5, 6, 7, 8, 9 in the outline and installation example diagram Wall Mounted 90° (B2) Serial numbers 1, 5, 6, 7, 8, 9, 10 in the outline and installation example diagram Flanged (F) Numbers 11, 14 in the shape and installation example chart Guardrail type (h) Numbers 2, 12, 13, 14, 15 in the shape and installation example chart Bracket type (Z) Number 16 in the shape and installation example chart Shape and installation illustration
Ordering Information
Specification Model Weight (kg)/piece Outer box dimensions (mm) Packaging quantity (pieces) Gross weight (kg)/box BED368-60W 2.81 320*260*400 4 13 ◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, and explosion-proof marks; for example: BED368 60W explosion-proof lamp, with junction box, suction rod installation, then the product model is: BED358 50gHZ;
◆ The product is equipped with the corresponding wattage light source at the factory;
◆ If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.
