ABSg Series Explosion-Proof Sight Glass Light
- Commodity name： ABSg Series Explosion-Proof Sight Glass Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting followed by high-voltage electrostatic powder coating;
◆ Housing joint uses screw flameproof design, high explosion-proof performance;
◆ Uses high-quality high-transmittance tempered glass, reduces light loss, achieves high luminous efficiency, resistant to high temperature, aging, and 4J impact;
◆ Uses high-quality reflector, scientific light distribution, surface anodized treatment, high reflection efficiency;
◆ Uses high-quality LED light source and special power supply, featuring high brightness, long life, energy saving, and environmental protection;
◆ Multiple installation methods such as steel pipe or cable wiring;
◆ Standards implemented: GB/T38361, GB/T 3836.2, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC61241-1, EN 60079-0, EN 60079-1, EN 61241-0, EN 61241-1.
Application Environment
◆ Widely used in hazardous environments such as petroleum, chemical, military industry, and offshore oil platforms for local lighting of pipelines, etc.;
◆ Suitable for places with high protection requirements and humidity;
◆ Suitable for explosive gas environments in zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, IIC classes;
◆ Suitable for combustible dust environments in zones 21 and 22;
◆ Suitable for temperature classes T1-T6.
Ordering Information
Specification Model Weight (kg)/piece Outer Box Dimensions (mm) Packing Quantity (pieces) Gross Weight (kg)/box ABS-II 0.90 350*350*360 18 18.5 ◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, and explosion-proof marks; for example: LED7W explosion-proof lamp, AC220V lamp body switch control on/off, no delay, seat installation, then the product model is: ABSg-II7AZ/220V;
◆ The product is equipped with the corresponding wattage light source at the factory;
◆ If there are special requirements (such as voltage, emergency, etc.), please specify when ordering.

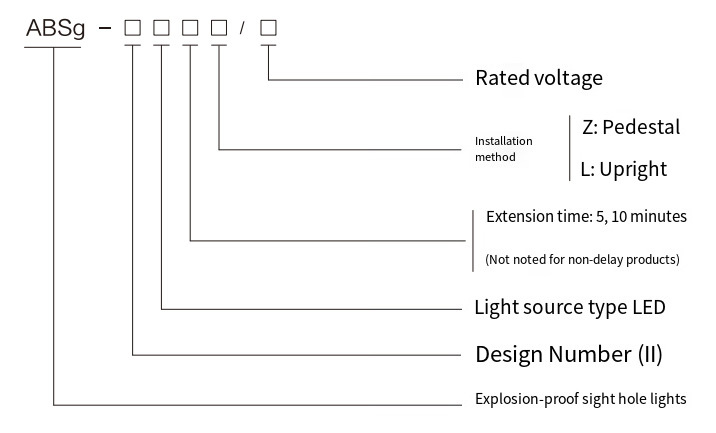

Model Meaning
Technical Parameters
Model Specification Rated Voltage Rated Power Explosion-proof Mark Entry Specification Suitable Cable Outer Diameter Protection Level ABSg-II 3 AC 220V 3W Ex db IIC T6 Gb;
Ex tb IIIC T80℃ DbG1/2
M20
NPT1/2Φ8~Φ12mm IP66
WF1
WF2*ABSg-II 5 5W ABSg-II 7 7W ABSg-II 10 10W ★ Orders marked with * must be specified.

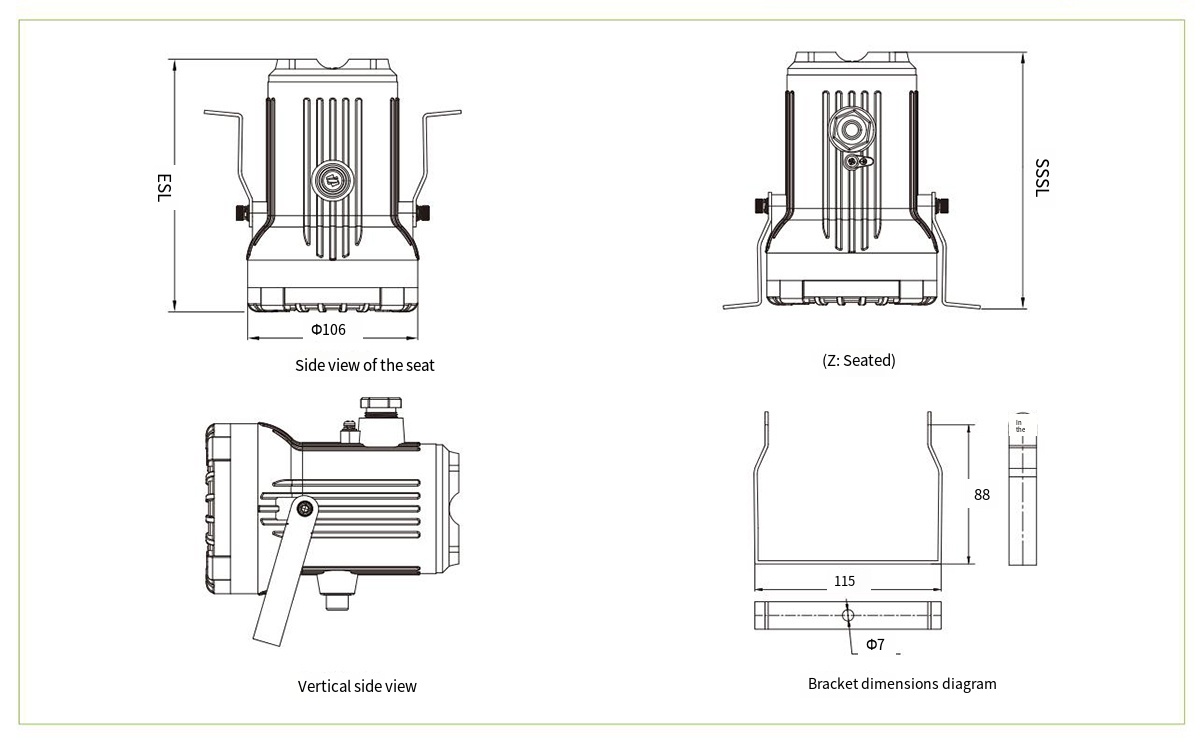

Outline and Installation Diagram
