CBZ Series Explosion-Proof Aviation Obstruction Light
- Commodity name： CBZ Series Explosion-Proof Aviation Obstruction Light
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-pressure electrostatic spraying;
◆ Stainless steel exposed fasteners, high corrosion resistance;
◆ Tempered glass transparent cover, high light transmittance, resistant to 4J impact;
◆ Equipped with LED light source, high brightness, long lifespan, energy-saving, and environmentally friendly;
◆ Equipped with integrated chip, featuring multiple protection circuits, capable of connecting multiple lamps for synchronous flashing via signal line;
◆ Can be equipped with solar panels for solar power supply, continuous use for more than 15 hours after one charge;
◆ Standards implemented: GB/T 38361, GB/T 3836.2, GB/T 3836.3.
Environmental Applications
◆ Widely used in hazardous environments such as petroleum, chemical, military industries, as well as dangerous places like offshore oil platforms and cruise ships;
◆ Suitable for high-rise buildings, drilling platforms, tall facilities, or buildings in tall oil storage facility areas, used as aviation obstacle indicators;
◆ Suitable for places with high protection requirements, humidity, and wet environments;
◆ Suitable for explosive gas environments in Zones 1 and 2;
◆ Suitable for explosive gas environments of IIA, IIB, and IIC classes;
◆ Suitable for combustible dust environments in Zones 21 and 22;
◆ Suitable for temperature classes T1-T6.
Ordering Instructions
◆ When ordering, strictly specify all product parameters and explosion-proof marks according to the model meaning;
◆ Accessories are not included at factory shipment; please specify separately if needed;
◆ Please specify separately if there are special requirements (such as rated voltage).

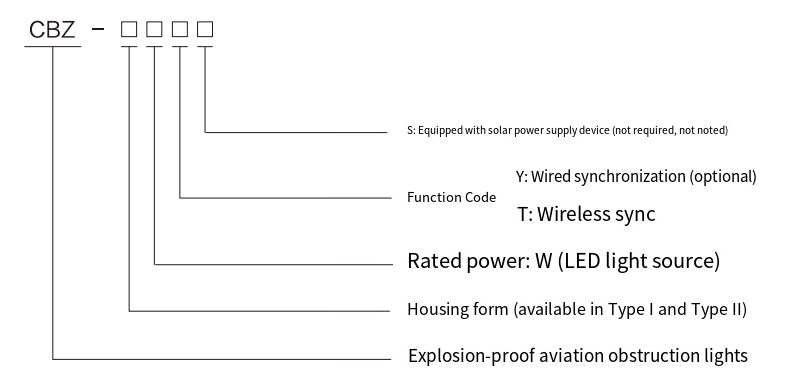

Model Meaning
Technical Parameters
Model Specifications Rated Voltage Rated Power Peak Intense Light Warning Color Flashing Frequency Explosion-proof Mark Entry Specification Applicable Cable Outer Diameter Protection Level CBZ-110 AC220V
50Hz
(Please specify if special requirements)
10W (LED) ≥200cd
(Low Light Intensity)
≥2000cd
(Medium Light Intensity)
≥20000cd
(High Light Intensity)Red 20-60 times/min Ex db eb IIC
T6 Gb;
Ex tb IIIC
T80℃ DbG3/4
M25
NPT3/4Φ10~Φ15mm IP67
WF1
WF2*CBZ-120 20W (LED) CBZ-140 40W (LED) CBZ-Il20 40W (LED) CBZ-1150 50W (Xenon Lamp) ★ Orders marked with * must be specified.

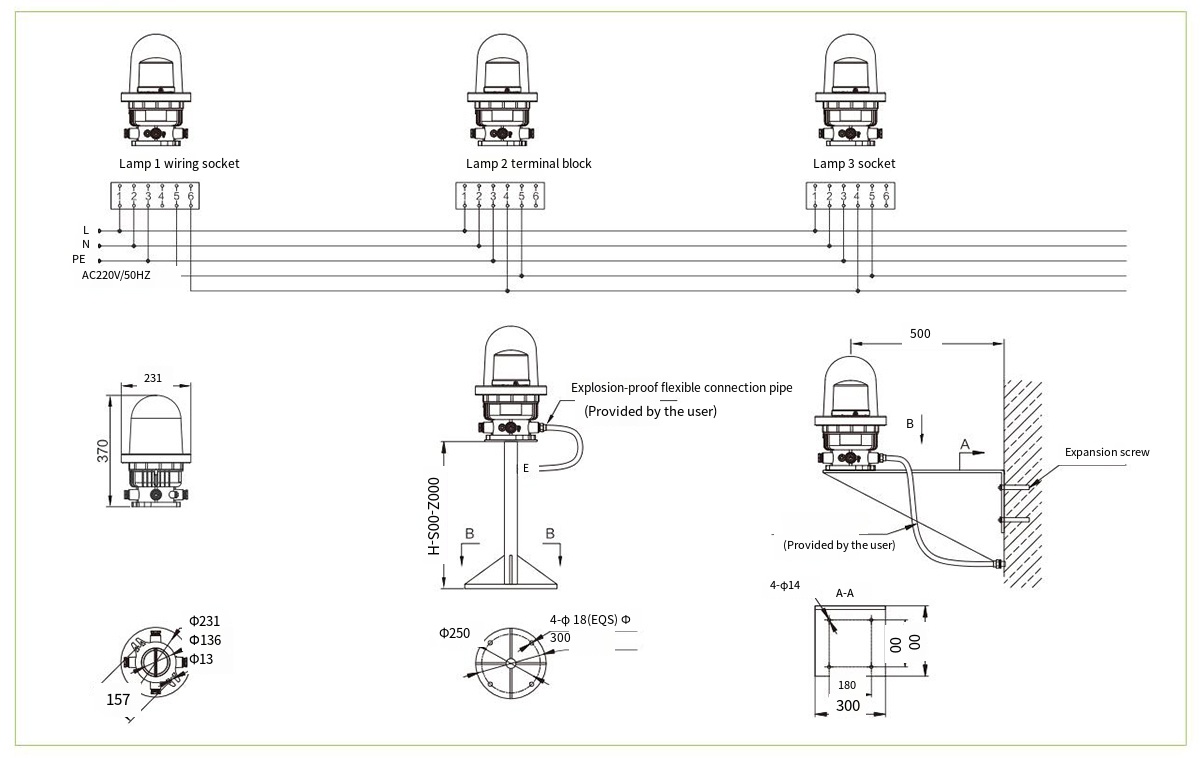

Appearance and Installation Diagram
◆ Before installation, the product manual and wiring diagram must be consulted;
◆ The synchronous line should use KVVP-3x2.5mm² metal shielded cable;
◆ When wired synchronization is used, the synchronous line must not be connected to any external power source;
◆ During testing, before connecting to a unidirectional AC 220V power supply, cover all photosensitive eyes with opaque materials; remove the cover when in normal use to allow natural light reception.
