BXM(D, X)-□ Series Explosion-proof Lighting (Power, Maintenance) Distribution Device
- Commodity name： BXM(D, X)-□ Series Explosion-proof Lighting (Power, Maintenance) Distribution Device
- Description
-
Product Features
◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic spraying;
◆ Stainless steel exposed fasteners with high corrosion resistance;
◆ Switch box adopts explosion-proof structure, cable box and junction box adopt increased safety explosion-proof structure, reliable explosion-proof performance, easy installation and maintenance;
◆ Explosion-proof box body and cover are both equipped with protective sealing strips, strong protective performance;
◆ The product adopts modular structure, various circuits and input/output directions can be freely selected and combined;
◆ Switch operating mechanism is designed according to explosion-proof requirements, simple and reasonable structure, strong versatility, flexible operation, and reliable performance;
◆ Switch handle can be equipped with a padlock to prevent misoperation;
◆ The component chamber is equipped with molded case circuit breakers, miniature circuit breakers, etc., and can be additionally equipped with leakage, auxiliary, shunt, alarm and other modules;
◆ Each circuit is equipped with power-on signal indicator lights;
◆ Vertical installation can be equipped with corresponding mounting brackets, outdoor use can be equipped with rain covers (please specify if needed).
Environmental Applications
◆ Suitable for explosive environments Zone 1 and Zone 2;
◆ Suitable for explosive atmospheres of IIA, IIB, IIC types;
◆ Suitable for combustible dust environments Zone 21 and Zone 22 locations;
◆ Suitable for temperature groups T1-T6;
◆ Widely used in hazardous environments such as petroleum extraction, refining, chemical, textile, military industry, as well as offshore oil platforms, oil tankers, and other locations;
◆ Suitable for indoor and outdoor use (IP65, IP66 must be specified when ordering).

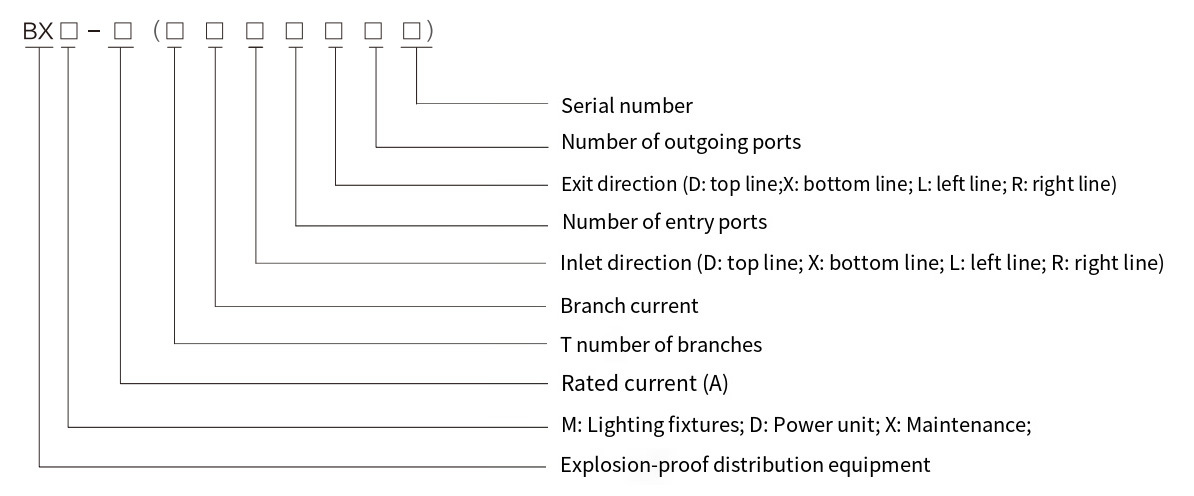

Model Meaning
Technical Parameters
◆ Explosion-proof mark: Ex db IIB T4/T5/T6 Gb; Ex tb IIIC T130℃/T95℃/T80℃ Db; Ex db eb IIB T4/T5/T6 Gb; Extb IIC T130℃/T95℃/T80℃ Db; Ex db eb IIC T4/T5/T6 Gb; Ex tb IIIC T130℃/T95℃/T80℃ Db;
◆ Rated voltage: AC/DC 12V/24V/36V/110V/220V; AC 230V/380V/400V/660V/690V;
◆ Rated current: ≤630A;
◆ Protection level: IP65/IP66;
◆ Corrosion resistance level: WF1, WF2;
◆ Entry specifications: G1/2-G4 (only applicable to composite structure increased safety housing), NPT1/2-NPT4, M20*1.5-M110*1.5;
◆ Standards: GB/T3836.1, GB/T3836.2, GB/T3836.3, GB/T3836.31, IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31, EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31.
Ordering Instructions
◆ When ordering, the product parameters must be specified in detail according to the model meaning, including total and branch switch current, number of poles, explosion-proof marks, etc.;
◆ If there are special requirements, please specify separately or provide a schematic diagram.
Outline and Installation Diagram
