BSC8503Ex-A Series Explosion-Proof Input and Output Module
+
  • BSC8503Ex-A Series Explosion-Proof Input and Output Module

BSC8503Ex-A Series Explosion-Proof Input and Output Module

Category:

Alarm

  • Commodity name： BSC8503Ex-A Series Explosion-Proof Input and Output Module
Message
Related
  • Description

  • Product Features

    ◆ Aluminum alloy die-cast housing, surface treated with high-speed shot blasting and high-voltage electrostatic powder coating;

    ◆ Built-in fire protection conversion modules from various manufacturers;

    ◆ Wide operating temperature range, suitable for industrial use;

    ◆ Three-port incoming line, terminals use direct wiring type, anti-fall off;

    ◆ Dustproof, explosion-proof, corrosion-resistant, rainproof design, can be used outdoors directly without rain cover;

    ◆ Standards: GB19880-2005, GB26851-2011, GB/T3836.1, GB/T 3836.2, GB/T3836.31, GB/T4208, GB 14048.1, IEC 60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN60079-1, EN 61241-0, EN 61241-1.

    Environmental Applications

    ◆ Widely used in petroleum, chemical, military, industrial plants, large buildings, shopping malls, schools, hotels, etc., providing signal conversion for fire emergency equipment during power outages, fires, and other emergencies;

    ◆ Explosive gas mixture hazardous areas Zone 1 and Zone 2;

    ◆ Explosive gas mixture hazard categories IIA, IIB, IIC;

    ◆ In environments with non-destructive insulation gases or vapors;

    ◆ Humidity: <90%RH;

    ◆ Explosive gas mixture temperature groups T1-T6;

    ◆ Suitable for ambient temperatures from -20℃ to +40℃.

    Ordering Information

    ◆ Please specify the model name and quantity of the explosion-proof input/output modules when ordering;

    ◆ Please specify any special requirements separately.

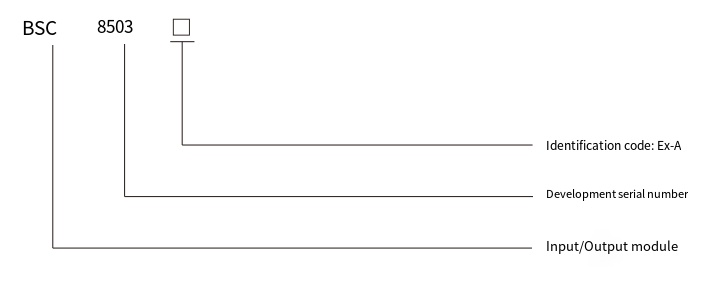

    Model Meaning

    Technical Parameters

    Product ModelRated VoltageStatic CurrentExplosion-proof MarkingEntry SpecificationApplicable Cable Outer DiameterProtection Level
    BSC8503Ex-ADC24V≤800uAEx db IIC T6 Gb;
    Ex tb IIIC T80℃ Db    		G3/4
    M25
    NPT3/4    		Φ10~Φ15mmIP67
    WF1
    WF2*
    BSC8503Ex-B

    ◆ Orders with * must be specified.

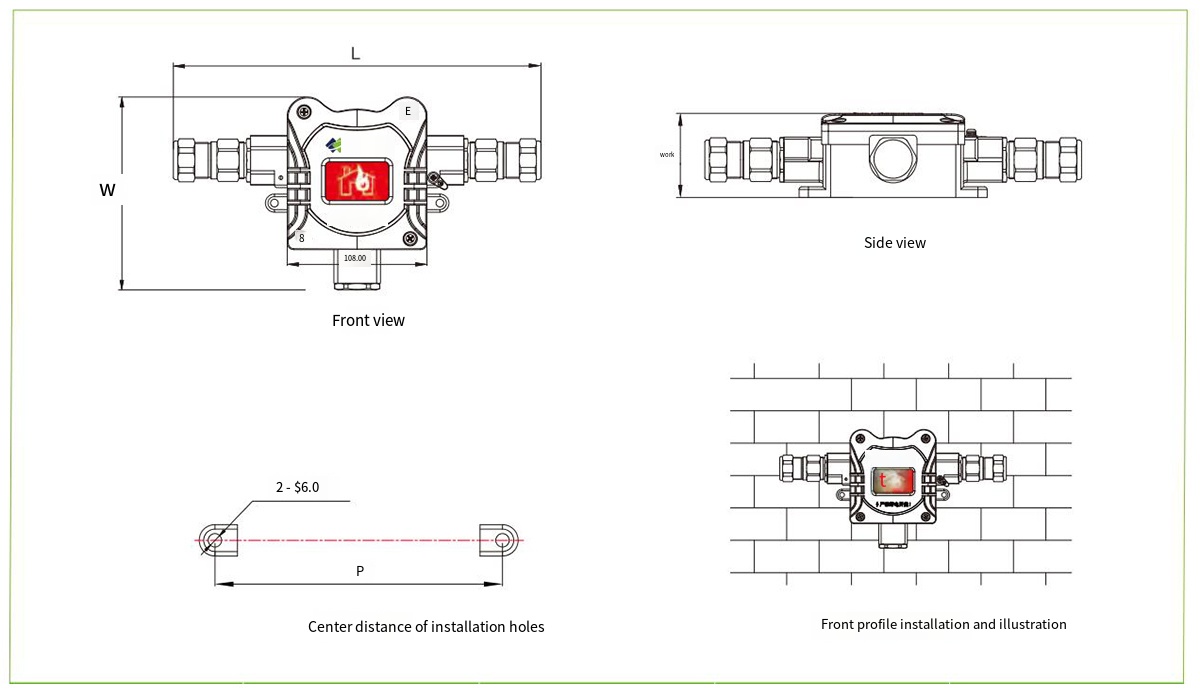

    Outline Installation and Illustration

    Product SeriesLength (L)Width (W)Height (H)Hole Distance (P)
    BSC8503Ex-A26615065.0128
    BSC8503Ex-B29217270.0153.5



    Specification ModelWeight (kg)/pieceOuter Box Size (mm)Packing Quantity (pieces)Gross Weight (kg)/box
    BSC8503Ex-A1.50560*325*170mm812
    BSC8503Ex-B1.74610*370*185mm812
