XH-GK658-□ Series Explosion-Proof Intelligent Control Box
- Commodity name： XH-GK658-□ Series Explosion-Proof Intelligent Control Box
- Description
-
Product Features
◆ Explosion-proof intelligent control box serves as the information transmission terminal and application terminal in the intelligent lighting system

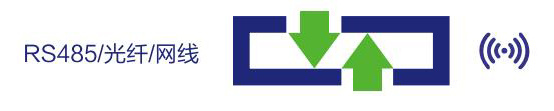

◆ The explosion-proof intelligent control box uses fiber optic, RJ45, 4G, 5G and other communication methods for uplink communication;

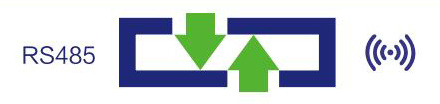

◆ The explosion-proof intelligent control box uses wireless communication, RS485, RS232 and other communication methods for downlink communication;
◆ The explosion-proof intelligent control box has functions such as electrical safety monitoring, energy consumption analysis, and remote control, with real-time alarms for abnormal electrical states;
◆ The explosion-proof intelligent control box is equipped with an LCD screen, enabling local viewing of the operating status of each device;
◆ The explosion-proof intelligent control box adopts a pure explosion-proof structure with reliable explosion-proof performance.
◆ Standards implemented: GB/T 3836.1, GB/T 3836.2, GB/T 3836.31, IEC60079-0, IEC60079-1, IEC60079-31, EN60079-0, EN60079-1, EN 61241-0, EN 61241-1.
Environmental Applications
◆ Widely used in petroleum, chemical, military industry, industrial plants, large buildings, shopping malls, schools, hotels, and other places, providing intelligent control strategies and remote operation for backend equipment;
◆ Hazardous areas with explosive gas mixtures Zone 1 and Zone 2;
◆ Hazardous categories of explosive gas mixtures IIA, IIB, IIC;
◆ In environments with non-destructive insulation gases or vapors;
◆ Humidity: <90%RH;
◆ Temperature groups of explosive gas mixtures T1~T6;
◆ Suitable for ambient temperatures from -20℃ to +40℃.

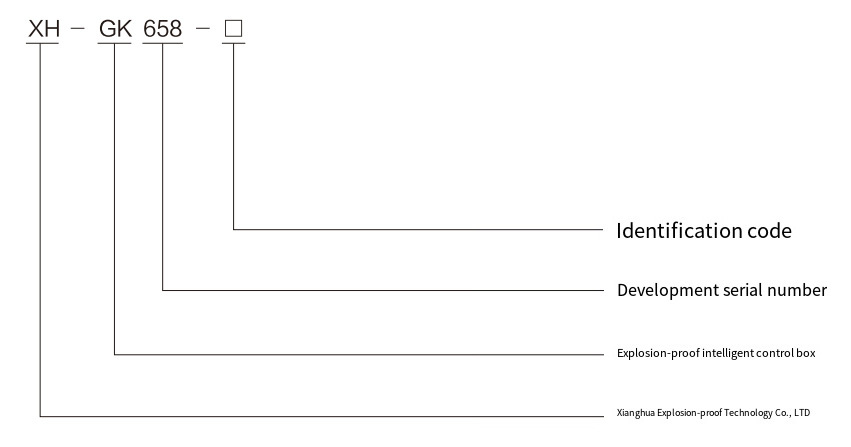

Model Meaning
Technical Parameters
Model Specifications Rated Voltage Rated Current Total Power Consumption Explosion-proof Marking Entry Specification Applicable Cable Outer Diameter Protection Level XH-GK658-□ AC220V
50/60Hz16A ≤25W Ex db IIC/IIB T6 Gb;
Ex tb IIIC T80℃ DbM20/NPT1/2* Φ8~Φ12mm IP67
WF1
WF2*M25/NPT3/4* Φ10~Φ15mm M32/NPT1* Φ12~Φ22mm Orders with * must be specified.
Ordering Instructions
◆ When ordering, strictly follow the model meaning and specify all product parameters in detail;
◆ If there are special requirements, please specify them when ordering.
Intelligent Control Functions

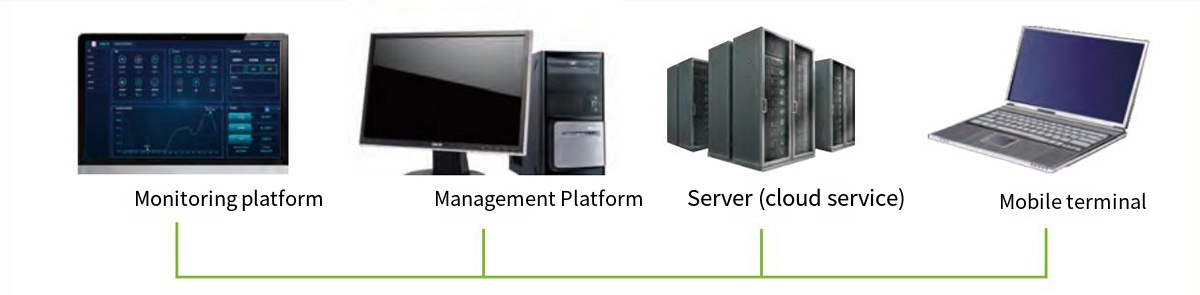

Basic Layer
◆ The system monitoring center uses computer systems to build databases, data processing, control, and WEB services; through fiber optics and wireless networks, it controls front-end devices, reflects and displays on-site conditions and data reports for management and decision-making.

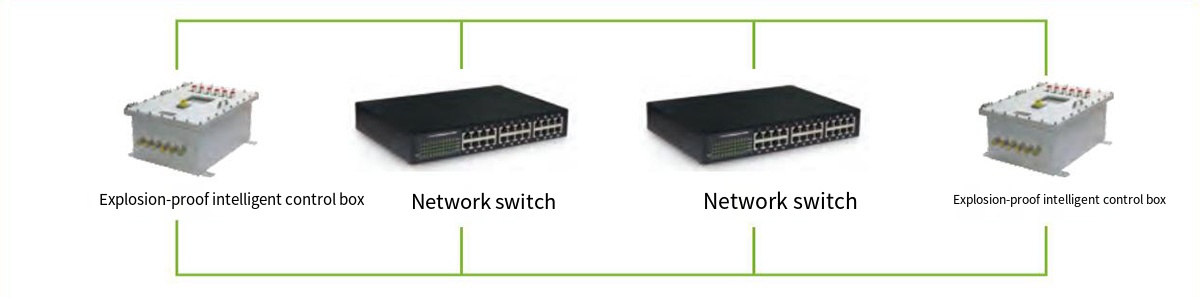

Network Layer
◆ Composed of 4G, 5G, fiber optic or wireless networks from operators such as China Telecom, Mobile, or Unicom, enabling data transmission between front-end devices and the application layer.

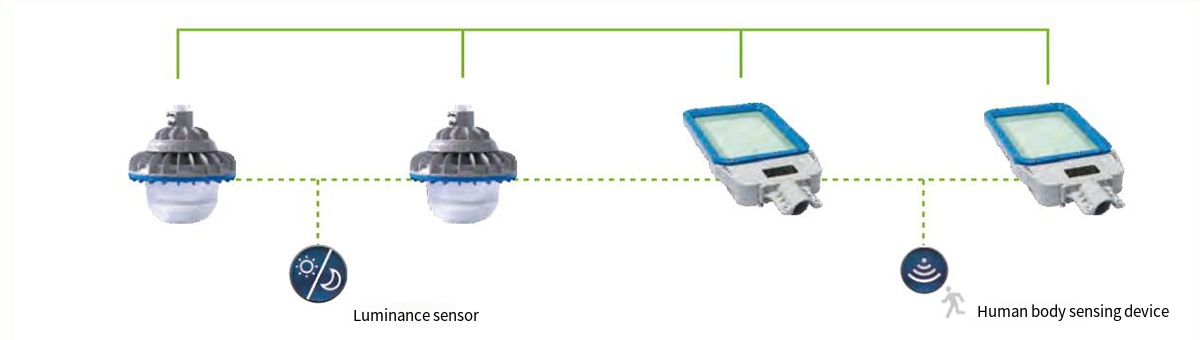

Basic Layer
◆ The intelligent control module installed on the main body of the lighting equipment realizes functions such as lighting control, operation data collection, and fault inquiry.
◆ Human body sensing technology enables lights to turn on when people arrive and dim/off when people leave;
◆ Light sensing technology enables automatic light on/off under special weather conditions.

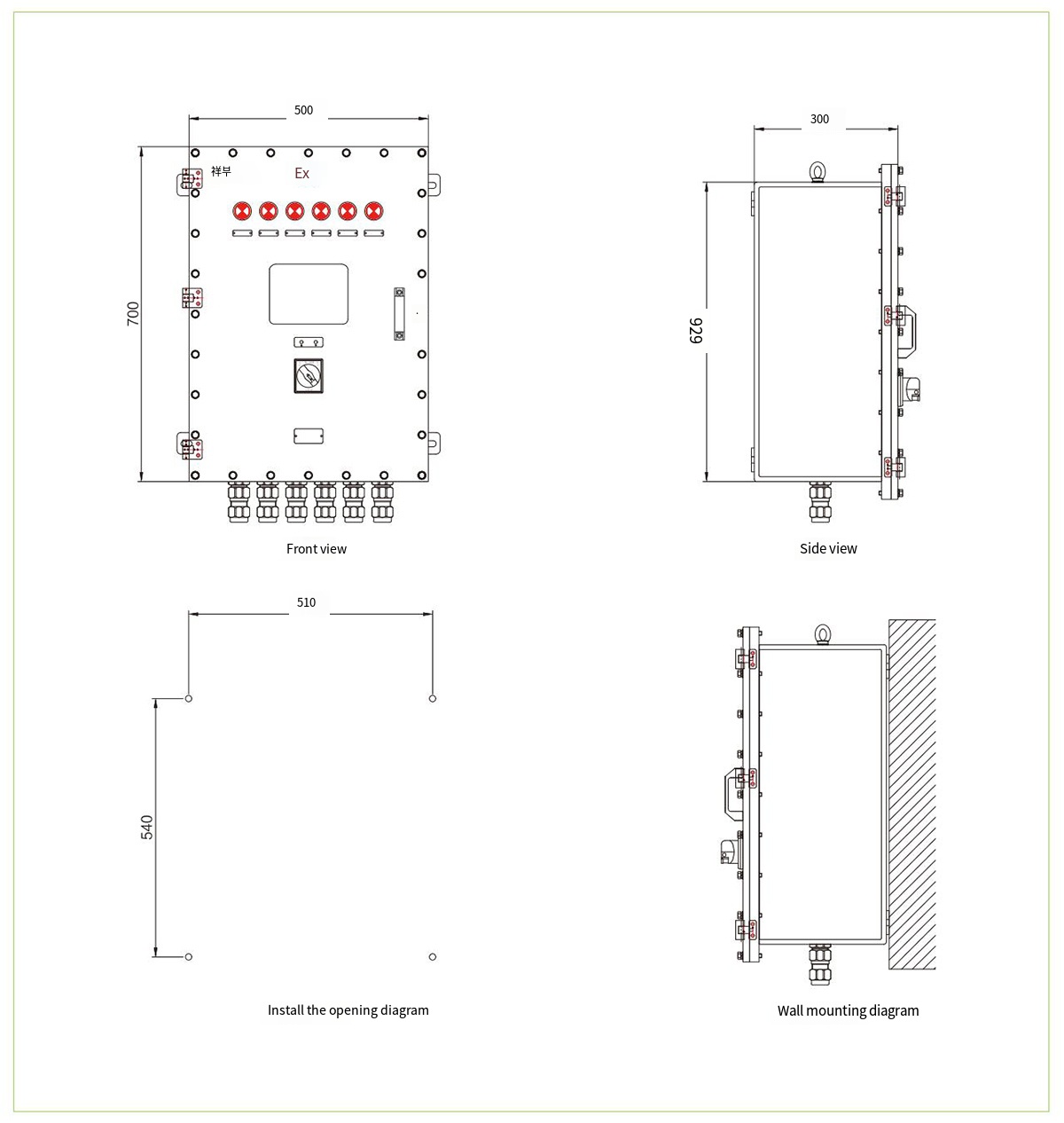

Appearance and Installation Diagram
