XH-D-□KVA-BX2020 Series Emergency Lighting Central Power Supply
- Commodity name： XH-D-□KVA-BX2020 Series Emergency Lighting Central Power Supply
- Description
-
Product Features
◆ Modular component technology, the entire system is easy to install, debug, and maintain;
◆ High safety, with different operation permission functions;
◆ Can intuitively display the power supply status parameters;
◆ 8 circuits, each circuit can connect up to 100 lamps;
◆ Uses isolated circuit design, making the system more stable;
◆ Equipped with short circuit detection and short circuit protection functions;
◆ Standards: GB/T3836.1, GB/T 3836.2, GB/T 3836.31, GB17945, IEC60079-0, IEC 60079-1, IEC 60079-31, EN 60079-0, EN 60079-1, EN 61241-0, EN61241-1.
Environmental Applications
◆ Widely used in petroleum, chemical, military, industrial plants, large buildings, shopping malls, schools, hotels, etc. In case of power outage, fire, and other emergencies, it provides centralized power supply for evacuation and firefighting operations;
◆ Hazardous areas with explosive gas mixtures Zones 1 and 2;
◆ Explosive gas mixture hazard categories IIA, IIB, IIC;
◆ In environments with non-destructive insulation gases or vapors;
◆ Humidity: <90%RH;
◆ Explosive gas mixture temperature groups T1~T6;
◆ Suitable for ambient temperatures from -20℃ to +40℃.
Ordering Information
◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, etc.; for example: XH-D-□KVA-BX2020 wall-mounted installation, then the product model is: XH-D-□KVA-BX2020;
◆ If there are special requirements (such as voltage, emergency time, etc.), please specify when ordering.

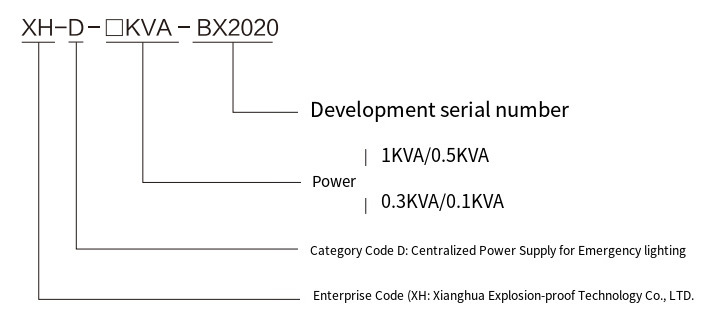

Model Meaning
Product Details
The inlet specifications can be selected as M thread or NPT thread
Uses high-precision circuit design with built-in router function
Uses rail-mounted explosion-proof terminal blocks Technical Parameters
Model Specifications Input Voltage Rated Power Emergency Time Output Voltage Explosion-proof Marking Inlet Specifications Applicable Cable Outer Diameter Protection Level XH-D-0.1KVA-BX2020 AC220V
50Hz100W ≥90min DC24V
DC36VEx db IIC T6 Gb;
Extb lllC T80℃ DbG3/4
M25
NPT3/4Φ10~Φ15mm IP66
WF1
WF2*XH-D-0.3KVA-BX2020 300W XH-D-0.5KVA-BX2020 500W XH-D-1KVA-BX2020 1000W ◆ All firefighting products should have a charging time ≥24 hours; orders with * must specify.

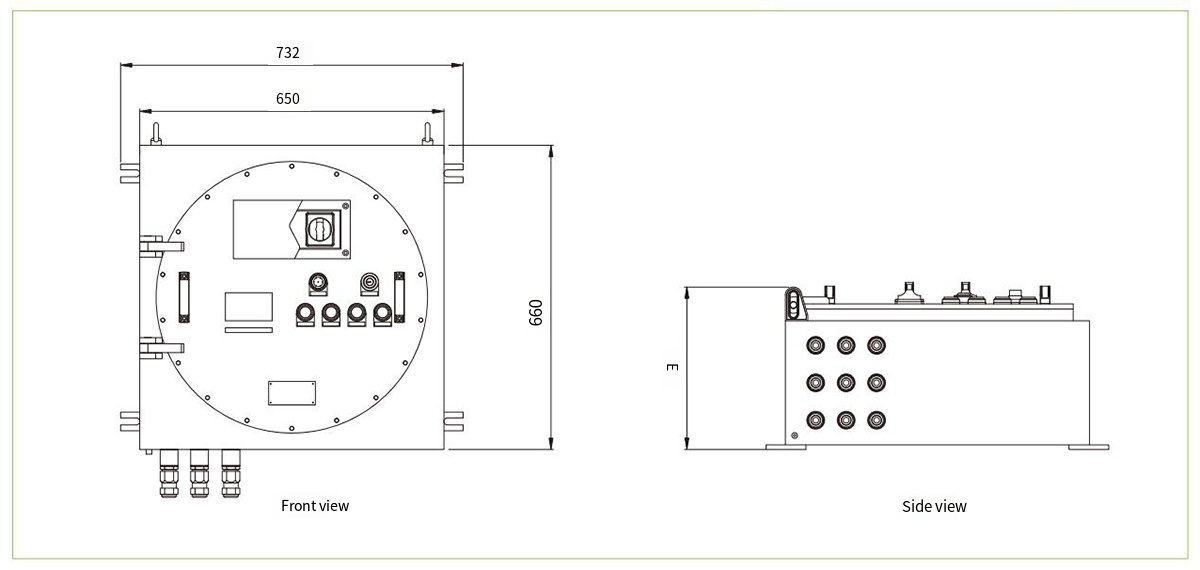

Product Outline Diagram

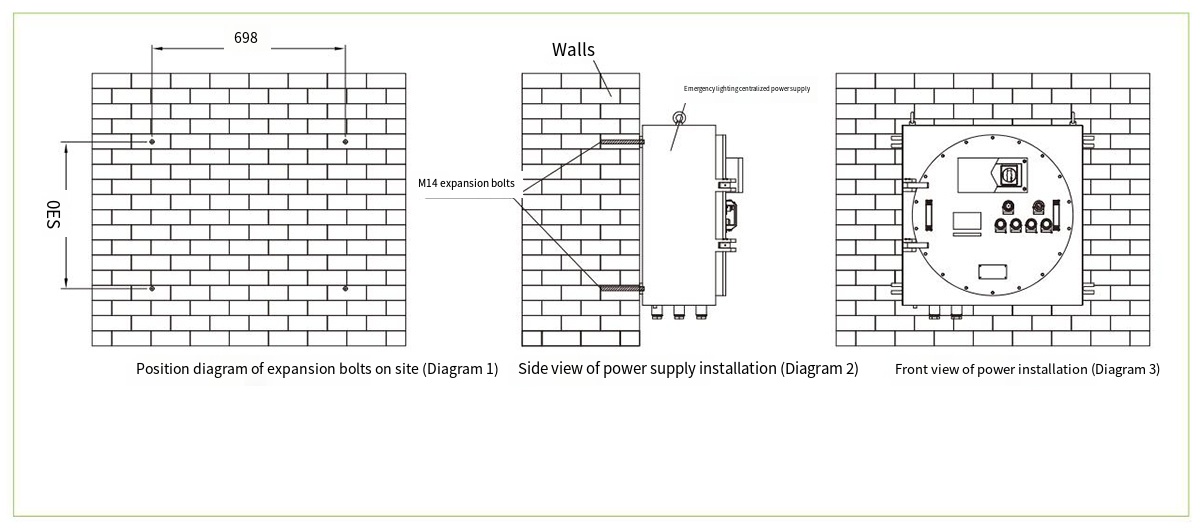

Installation method: Fix the dimensions of four M14×150 expansion bolts (schematic 1) on the wall, then hang the product on the expansion bolt nuts, and finally tighten the nuts to secure.
Product Installation Diagram

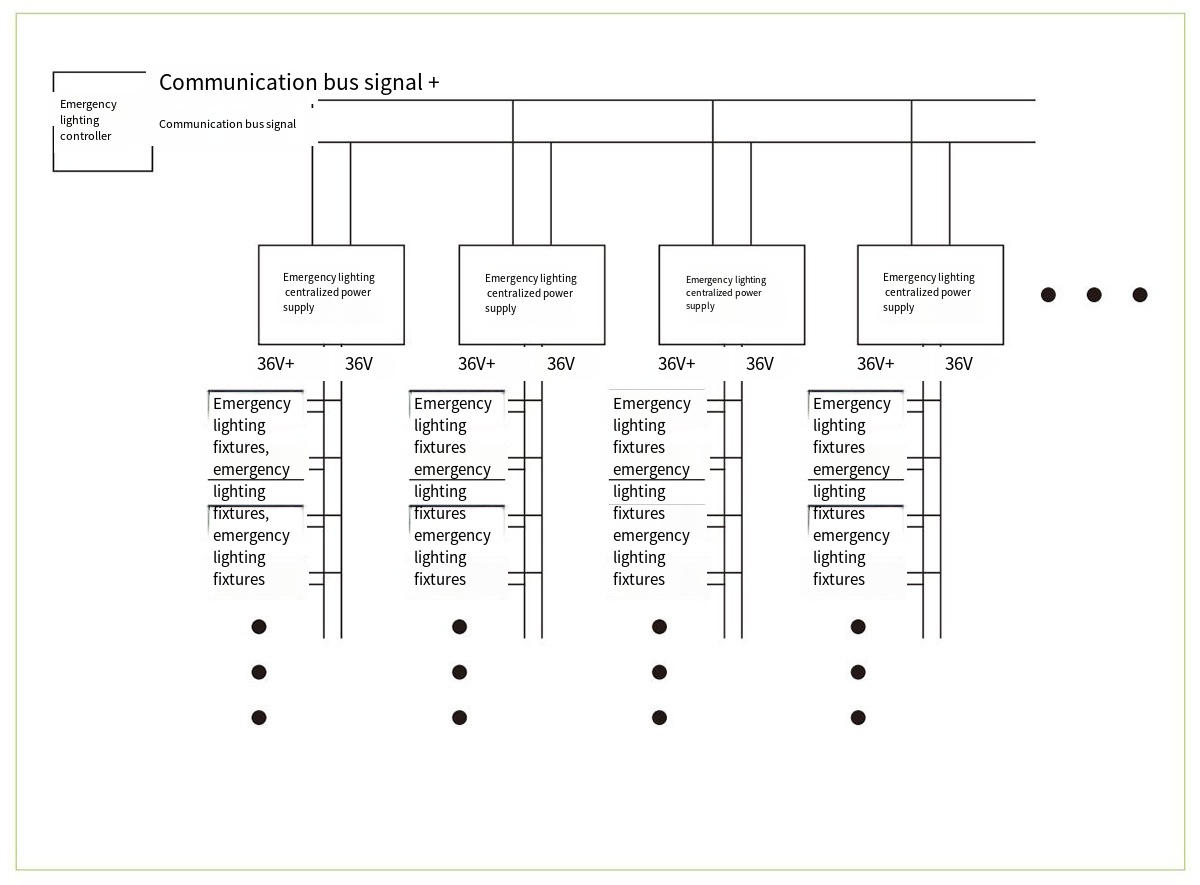

System Topology Diagram
Note: When using an emergency lighting centralized power supply, the emergency lamps do not contain batteries internally.
