XH-D-□KVA-P(F) Series Emergency Lighting Central Power Supply

Category:

Control Box

Commodity name： XH-D-□KVA-P(F) Series Emergency Lighting Central Power Supply

Message

Description

Product Features

◆ Modular component technology, the entire system is easy to install, debug, and maintain;

◆ High security, different operation permissions require entering the corresponding password to access;

◆ Can intuitively display the status parameters of the power supply;

◆ 8 circuits, each circuit can connect up to 60 lamps;

◆ Uses isolated circuit design, making the system more stable;

◆ Equipped with short circuit detection and short circuit protection functions;

◆ Execution standard: GB17945.

Environmental Applications

◆ Widely used in urban factories, workshops, warehouses, exhibition halls, utility tunnels, supermarkets, and other places, providing centralized power supply for evacuation and firefighting operations in case of fire;

◆ Suitable for places with high protection requirements and humid environments;

◆ Suitable for temperature environments from -20℃ to +40℃.

Ordering Information

◆ When ordering, strictly follow the model meaning, clearly specify all product parameters, installation accessories, etc.; for example: XH-D-□KVA-P wall-mounted installation, then the product model is: XH-D-□KVA-P;

◆ If there are special requirements (such as voltage, emergency time, etc.), please specify when ordering.

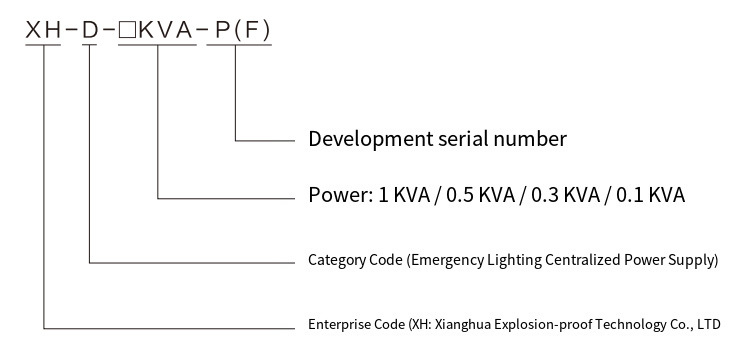

Model Meaning

Technical Parameters

Model Specifications	Input Voltage	Rated Power	Emergency Time	Output Voltage	Entry Specification	Applicable Cable Outer Diameter	Protection Level
XH-D-0.1KVA-P	AC220V 50Hz	100W	≥90min	DC24V DC36V	G1/2 G3/4	Φ8~Φ12mm Φ10~Φ15mm	IP66 WF1 WF2*
XH-D-0.3KVA-P		300W
XH-D-0.5KVA-P		500W
XH-D-1KVA-P		1000W

◆ All firefighting products should have a charging time ≥24 hours; orders with * must be specified.

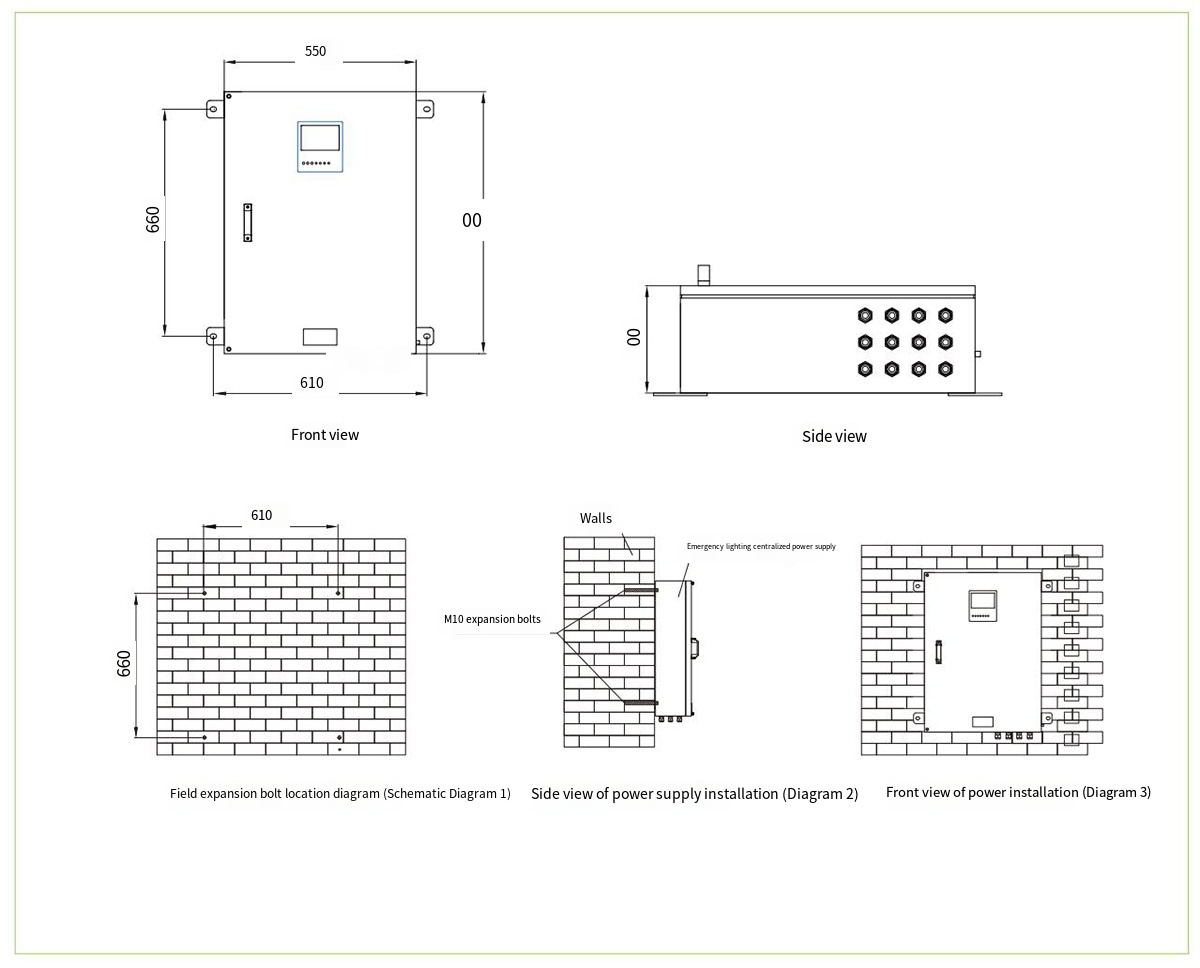

Appearance and Installation Diagram

Installation method: Fix the dimensions of four M10×100 expansion bolts (schematic 1) on the wall, then hang the product on the expansion bolt nuts, and finally tighten the nuts to secure.
